Zebra

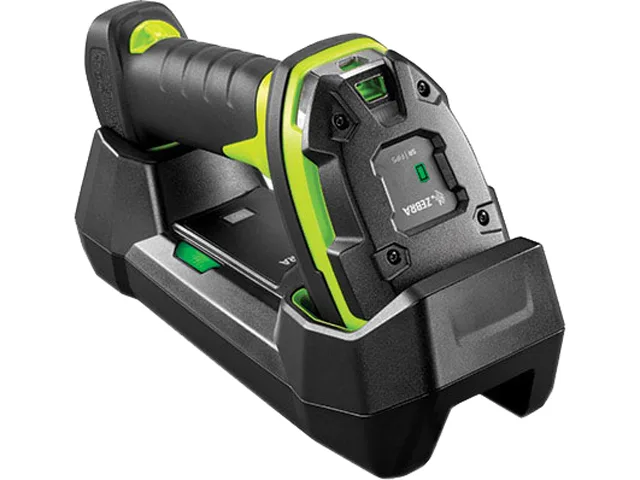

Zebra DS3678-ER3U42A2SVW barcode scanner
Cordless handheld scanner reads 1D and 2D codes from contact to 70 ft., survives 8.0 ft. drops and meets IP65 and IP67 sealing
- Form FactorHandheld
- ConnectivityCordless
- Scan Engine2D Area Imager
- Interfaces SupportedUSB
- Light SourceOne 660 nm LED
- Imager Field of ViewNear: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V)
- Scans 1D and 2D barcodes from contact to 70 ft away
- Survives multiple 8.0 ft drops to concrete and meets IP65 and IP67 sealing
- Cordless design with USB interface for flexible deployment
- 2D area imager with 660 nm LED reads low-contrast codes down to 25%
- Lightweight 0.74 lb handheld with ±360° roll and ±60° pitch/yaw tolerance
Ultra-Rugged Cordless Scanner
The Zebra DS3678-ER is a new handheld barcode scanner built for ultra-rugged environments. It reads virtually any 1D or 2D code from near contact to 70 ft. away. Workers in warehouses, yards and manufacturing plants can capture data as fast as they pull the trigger. The cordless design removes cable restrictions across large work areas.
Sealed Against Dust and Water
This scanner carries both IP65 and IP67 ratings, the highest sealing specification in its class. It withstands multiple 8.0 ft. drops to concrete and resists tumble abuse. The 660 nm LED light source operates reliably in bright sunlight or low light. No thermal, noise or power-draw figures are provided for normal use.
Extended-Range 2D Area Imager
The scan engine delivers a near field of view of 32° (H) x 20° (V) and a far field of 12° (H) x 7.6° (V). Pitch and yaw tolerances reach ±60 degree while roll covers ±360 degree. A minimum print contrast ratio of 25% is required. Operations needing shorter-range or contact-only scanning should consider a different model.
Highlights
- Scans 1D and 2D barcodes from contact to 70 ft away
- Survives multiple 8.0 ft drops to concrete and meets IP65 and IP67 sealing
- Cordless design with USB interface for flexible deployment
- 2D area imager with 660 nm LED reads low-contrast codes down to 25%
- Lightweight 0.74 lb handheld with ±360° roll and ±60° pitch/yaw tolerance
Specifications
| Brand | Zebra |
|---|---|
| Model | DS360X-ER |
| Part Number | DS3678-ER3U42A2SVW |
| Form Factor | Handheld |
| Connectivity | Cordless |
| Scan Engine | 2D Area Imager |
| Interfaces Supported | USB |
| Light Source | One 660 nm LED |
| Imager Field of View | Near: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V) |
| Pitch | ±60 degree |
| Roll | ±360 degree |
| Yaw | ±60 degree |
| Print Contrast Ratio (Minimum) | 25% |
| Dimensions | 7.30" x 3.00" x 5.20" |
| Weight | 0.74 lb. |
| Drop | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Shipping weight | 1.36 kg |
| Package size | 236 × 191 × 127 mm |
Questions about this item
How do I install the DS3678-ER with the included STB3678 cradle and USB cable?
Connect the USB cable CBA-U42-S07PAR to the STB3678-C100F3WW cradle, attach the power supply PWR-BGA12V50W0WW with DC line cord CBL-DC-451A1-01, then add the required AC line cord 23844-00-00R; the scanner pairs automatically when seated.
What maintenance will the DS3678-ER need over time?
The 660 nm LED light source and scan window should be cleaned periodically; the cordless battery pack will eventually require replacement after repeated charge cycles.
At what distance does the DS3678-ER's far-field optics limit reading under sustained use?
The far field of view narrows to 12° (H) x 7.6° (V), so reading 2D codes at the maximum 70 ft / 21.4 m range becomes the first practical limit during continuous scanning.
