Five black RJ45 panel-mount couplers with round IP65 dust caps

Zebra ANMBEST RJ45 Cat6 Panel Mount Coupler IP65 5 Pack

SKU CH-XNN5-K115H

Five IP65-rated panel-mount RJ45 couplers with gold-plated contacts accept Cat6 cable for 10 Gbps PoE links in harsh environments

  • TypeFemale-to-Female
  • Changer Typetype
  • ColorBlack
  • Wire Gauge30 AWG
  • SpecificationsFemale-to-Female, cat_6, Ethernet, Black, ANMBEST
  • Cable Jakcet TypePlastic
  • IP65 waterproof rating protects connections in harsh environments
  • Gold-plated brass contacts ensure stable signal transmission
  • Tool-free push-pull design enables quick panel installation
  • Cat6 performance supports up to 10 Gbps data rates
  • Five-pack includes couplers, caps, connectors and mounting hardware

Zebra ANMBEST IP65 Panel Mount Coupler

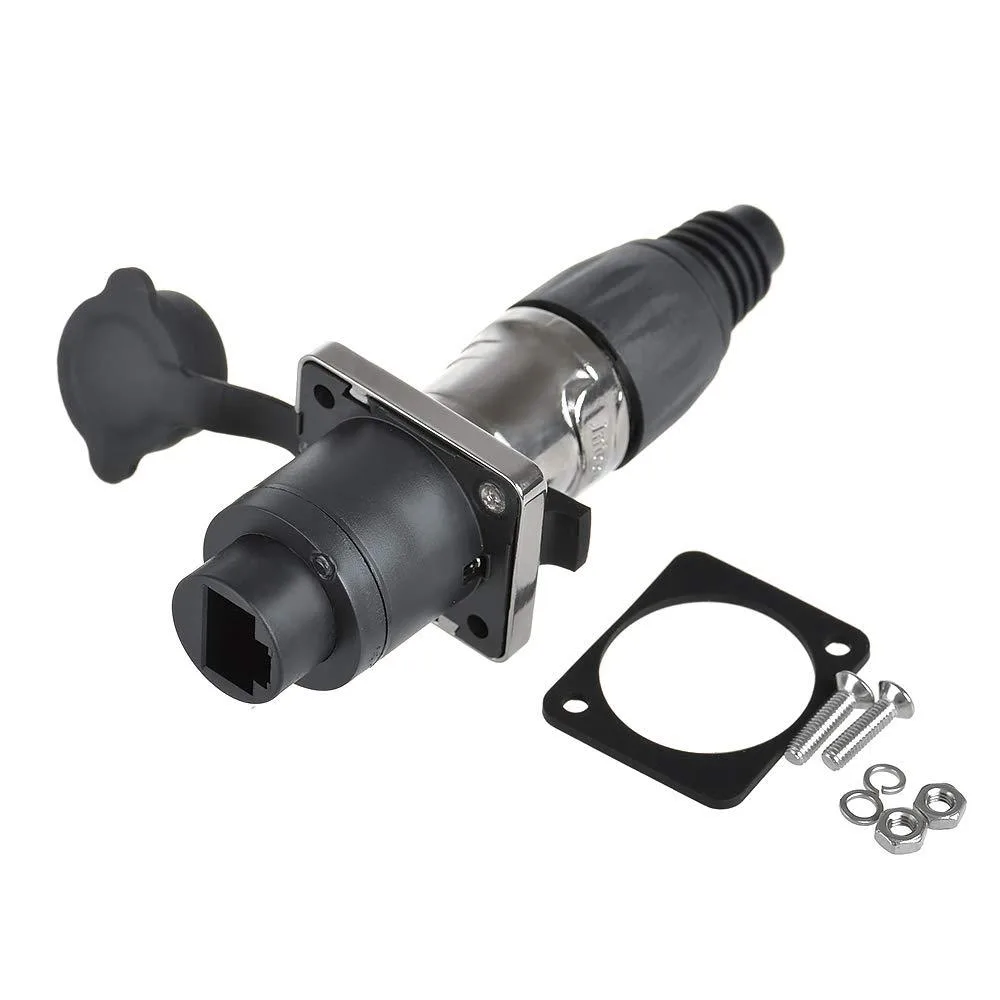

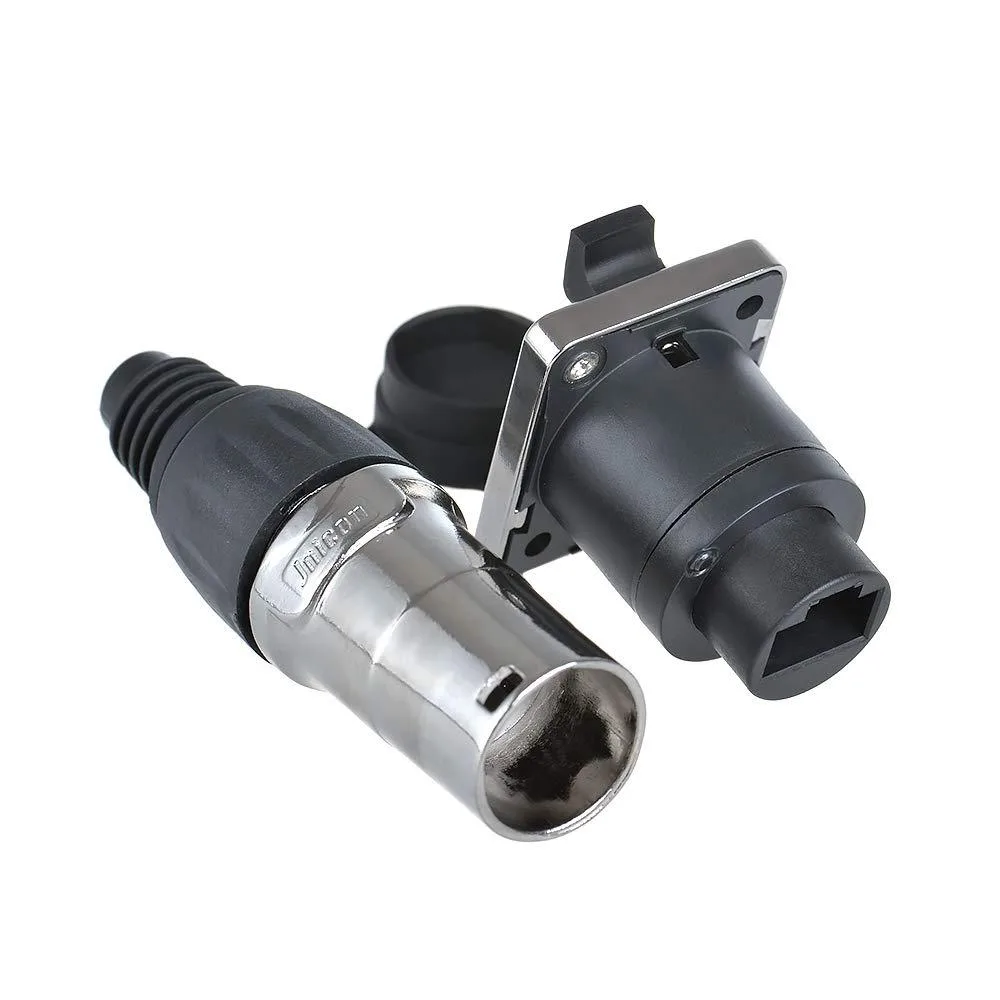

The Zebra ANMBEST is a female-to-female RJ45 coupler designed for panel mounting in industrial or outdoor enclosures. It provides feed-through Cat6 Ethernet connectivity with IP65 waterproof and dustproof protection when assembled. Each pack contains five couplers plus five waterproof dust caps, five round IP67 connectors and mounting hardware for quick deployment.

Upgrade from standard panel jacks

Standard panel jacks lack sealing and often require soldering or tools for termination. This coupler adds IP65 ingress protection, a push-pull locking mechanism and gold-plated brass contacts that resist corrosion in harsh chemical environments. The jump is worth it when the panel faces wash-down, vibration or exposure to acids and alkalis that degrade unsealed connectors.

Handles 10 Gbps Ethernet and 1.5 A PoE

Rated for 10BASE-T through 10000BASE-T speeds, it comfortably carries Gigabit and 10 Gigabit traffic plus Power over Ethernet up to 1.5 A at 125 VAC or 75 VDC. The 30 AWG internal wiring and 4 mm maximum panel thickness limit use to thin panels and short internal runs; it is not suited for high-current power distribution or thick enclosure walls.

Highlights

  • IP65 waterproof rating protects connections in harsh environments
  • Gold-plated brass contacts ensure stable signal transmission
  • Tool-free push-pull design enables quick panel installation
  • Cat6 performance supports up to 10 Gbps data rates
  • Five-pack includes couplers, caps, connectors and mounting hardware

Specifications

BrandZebra
SeriesPanel Mounting RJ45 IP65 Waterproof PCB Signal Panel Cat5/5e/6
ModelANMBEST
TypeFemale-to-Female
Changer Typetype
ColorBlack
Wire Gauge30 AWG
SpecificationsFemale-to-Female, cat_6, Ethernet, Black, ANMBEST
Cable Jakcet TypePlastic
Dimensions20'
Package Quantity5 Count
Package Contents5 x 5-Pack
DisclaimerIp67, Ce, Rohs, not_applicable

Questions about this item

What panel cut-out and maximum panel thickness does the 20 mm coupler accept?

The coupler fits a 20 mm panel cut-out and mounts on panels up to 4 mm thick.

How do you secure the coupler and where do installers most often miss a step?

Fasten the supplied screws and nuts through the flange; the step most often missed is fitting the O-ring seal before tightening.

Which seals and caps should be replaced to keep the IP65 rating intact?

Replace the round IP67 connector gasket and the dust-cap cover when they show cracking or compression set.
