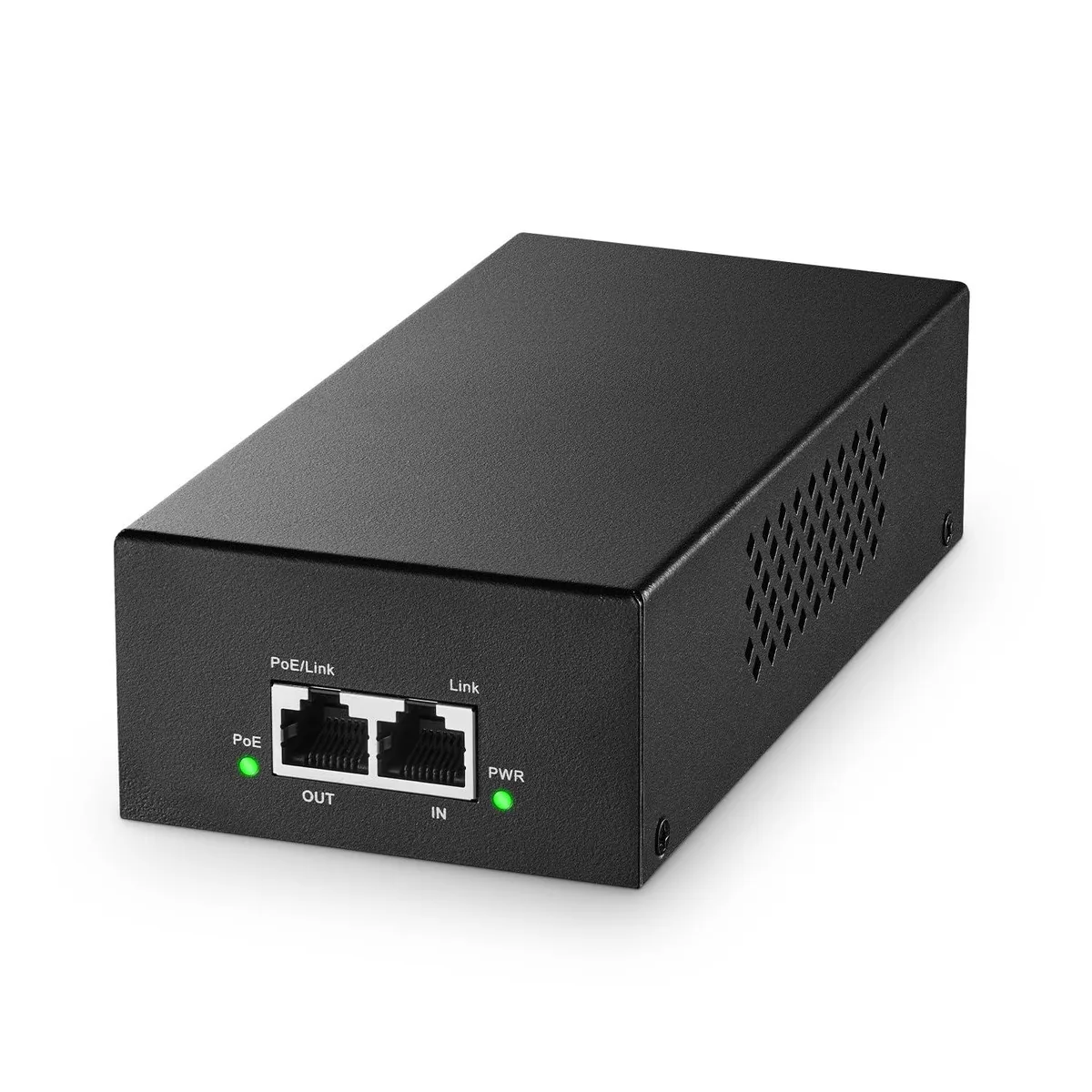

Compact black network injector with two RJ45 ports and a power socket

YuLinca P2GN901 2.5G 90W PoE++ data adapter

SKU CH-M3Z7-PACB3 MPN P2GN901

Adds 2.5 Gbps PoE++ up to 90 W over 100 metres with plug-and-play simplicity

  • Uplink InterfacePoE+, RJ45
  • Primary PortsPoE+, RJ45
  • Primary Port Speed2.5 gigabits_per_second
  • Primary Port TypePoE+, RJ45
  • Power48 volts_of_direct_current,
  • Weight0.65 kilograms
  • 90 W PoE++ output powers demanding devices
  • IEEE 802.3af/at/bt compliance auto-negotiates up to 90 W
  • 5 Gbps ports on both sides keep full bandwidth
  • Plug-and-play design needs no configuration
  • 100 metre reach delivers data and power over one cable

2.5G 90W PoE++ injector

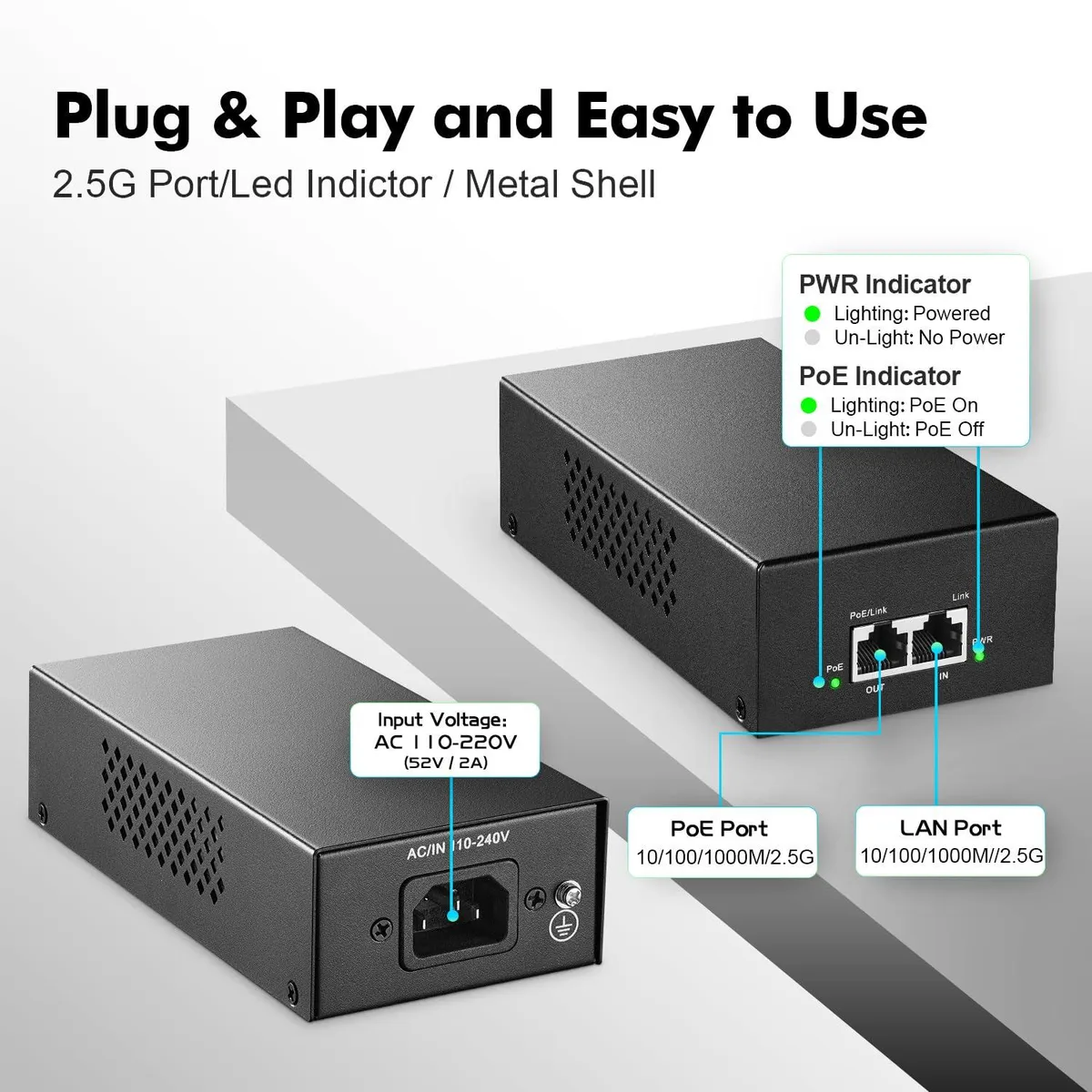

This 2.5G 90W PoE++ injector adds Power over Ethernet to a non-PoE link. It accepts a 2.5G Ethernet input and delivers both data and up to 90W of power through a single 2.5G PoE output port. The unit complies with IEEE 802.3af, 802.3at and 802.3bt standards and auto-detects the connected device’s power requirement.

Installers needing up to 90W over 2.5G

It suits installers powering 90W-class wireless access points, PTZ cameras or other high-power PoE devices over runs up to 100 metres. It does not suit buyers who need multi-port injection, managed features such as VLAN or port scheduling, or passive 24V PoE compatibility.

90W maximum PoE output

The single figure that decides fit is the 90W maximum PoE output on the 2.5G port. If the powered device draws more than 90W, this injector cannot supply it; if the device needs only 15.4W, 30W or 60W the injector will deliver the correct class automatically.

Highlights

  • 90 W PoE++ output powers demanding devices
  • IEEE 802.3af/at/bt compliance auto-negotiates up to 90 W
  • 5 Gbps ports on both sides keep full bandwidth
  • Plug-and-play design needs no configuration
  • 100 metre reach delivers data and power over one cable

Specifications

BrandYuLinca
Model2.5G 90W
Part NumberP2GN901
Uplink InterfacePoE+, RJ45
Primary PortsPoE+, RJ45
Primary Port Speed2.5 gigabits_per_second
Primary Port TypePoE+, RJ45
Power48 volts_of_direct_current,
Weight0.65 kilograms
Temperature,

Questions about this item

What network cable and power source do I need to use the P2GN901?

Connect the uplink to a non-PoE switch with a Cat5e or better cable and plug the unit into a mains outlet; the injector then delivers up to 90 W over the same cable to the PoE device.

Will my 1 Gbps access point still work at full speed through the 2.5 Gbps ports?

Yes, the ports auto-negotiate down to 1 Gbps, 100 Mbps or 10 Mbps, so legacy gear runs at its rated speed without configuration.

How can I confirm the injector is supplying power after installation?

The connected PoE device will power up and establish a 2.5 Gbps link; if the device remains off, check that it supports 802.3af/at/bt and not passive 24 V operation.
