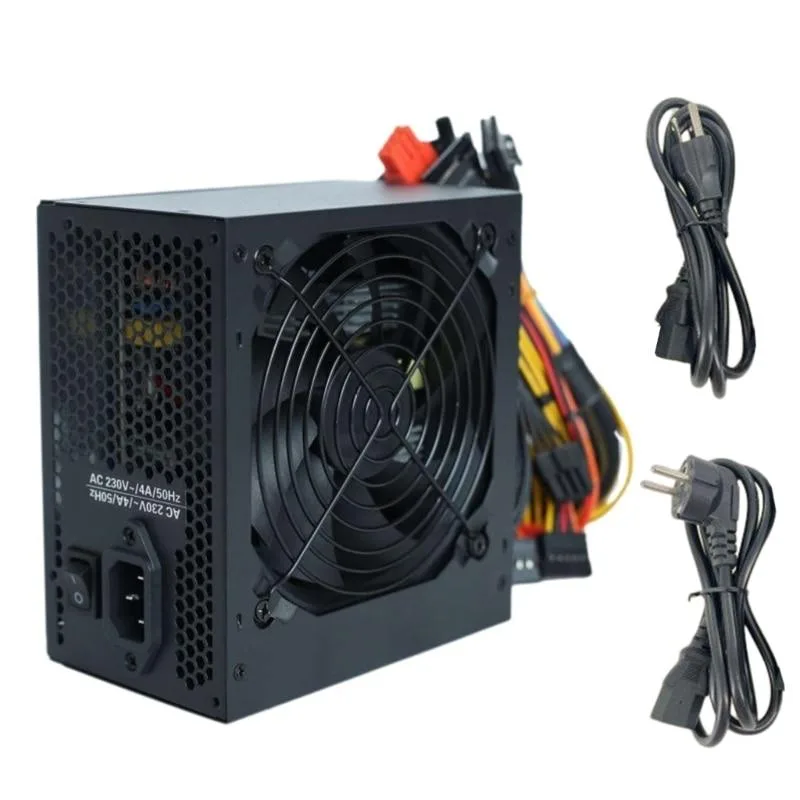

Rectangular metal PSU with 120mm fan and modular cables, US plug

YINGHUA

YINGHUA 600W Server Power Supply US Plug

SKU CH-31X9-NP8JY

Modular 600W ATX unit with 120mm hydraulic fan, full cable set and multi-rail protections for desktop builds

  • Full modular cables simplify builds and improve airflow
  • 600 W rated power supports high-end desktop configurations
  • 120 mm hydraulic-bearing fan delivers large airflow with silent operation
  • Multi-function protections include over-voltage, over-current, overload and short-circuit safeguards
  • ATX12V compliant design provides stable 3.3 V, 5 V and 12 V outputs

YINGHUA 600W Server Power Supply

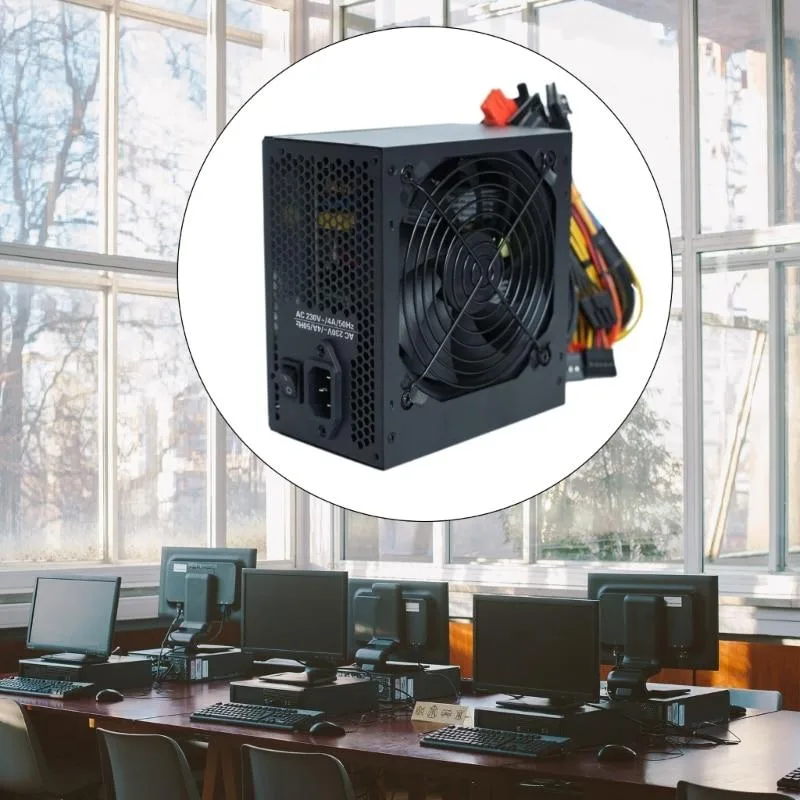

This YINGHUA unit is a 600W server power supply built to the ATX12V specification. It uses a 12cm hydraulic bearing fan for cooling and offers full modular cabling. The design targets desktop computers, all-in-one systems, network terminals, industrial quasi-systems and POS machines that need stable 12V delivery up to 38.5A. It is not for builders who need more than 600W of rated power or who require additional native connectors beyond the listed complement.

Check your motherboard and case fit

Verify that your motherboard accepts a standard 24Pin main connector and a single 4Pin+4Pin CPU power header. The unit provides two 6Pin+2Pin graphics connectors, five SATA drive plugs and three large IDE fan headers. Input voltage must be AC180-264V at 50-63Hz with a 5A current rating. Ensure your chassis can accommodate a supply measuring approximately 15x14x8.5cm and that the US plug matches your wall outlet.

Thermals noise and power draw

The 12cm hydraulic bearing fan is designed for large airflow and silent operation while maintaining high efficiency. Under normal loads the DC outputs deliver 3.3V at 15A, 5V at 12A, 12V at 38.5A, -12V at 1A and +5VSB at 3A. Combined 3.3V and 5V rails are rated for 50W and 60W respectively, with the 12V rail providing up to 462W. Protections include over-voltage, over-current, over-load and short-circuit safeguards.

Highlights

  • Full modular cables simplify builds and improve airflow
  • 600 W rated power supports high-end desktop configurations
  • 120 mm hydraulic-bearing fan delivers large airflow with silent operation
  • Multi-function protections include over-voltage, over-current, overload and short-circuit safeguards
  • ATX12V compliant design provides stable 3.3 V, 5 V and 12 V outputs

Specifications

No published specifications for this item yet.

Questions about this item

What cables come in the box and what must I buy separately?

The package includes the power supply only; all 24-pin ATX, CPU 4+4-pin, SATA, IDE and 6+2-pin PCIe cables are modular and must be sourced separately.

Which version should I choose for a build needing multiple drives and a graphics card?

The single 600 W model provides five SATA connectors for drives and two 6+2-pin PCIe connectors for a graphics card, covering both needs in one unit.

How much 12 V power is actually available for the CPU and GPU?

The 12 V rail delivers up to 38.5 A, giving 462 W dedicated to CPU and graphics components under load.
