Silver 1U rack-mount barebone server chassis with dual CPU sockets and cooling fans

Intel

Intel HNS2600KPF barebone pc 1U dual Xeon DDR4 512 GB

SKU CH-G6E9-C7V05 MPN HNS2600KPF

1U rack-mount barebone supports two Xeon processors with DDR4-2133 memory up to 512 GB and ten SATA ports

  • CPU TypeXeon
  • CPU SocketSocket R3 (LGA2011-3)
  • Memory Type SupportedDDR4-2133/PC4-17000
  • PCI Express2
  • Serial ATANumber of SATA Interfaces:10
  • FeaturesNumber of Processors Supported:2 Number of Total Expansion S
  • Dual Xeon support scales compute density
  • DDR4-2133 memory up to 512 GB capacity
  • Ten SATA ports enable high storage counts
  • Two PCIe slots provide expansion flexibility
  • 1U rack form factor fits dense deployments

1U Dual-Socket Xeon Barebone

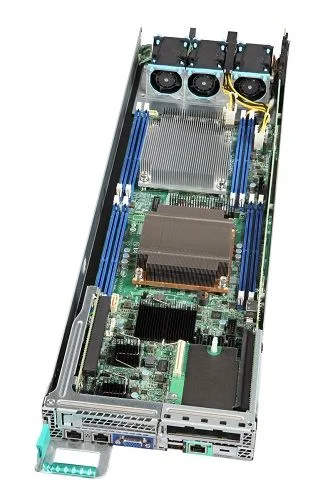

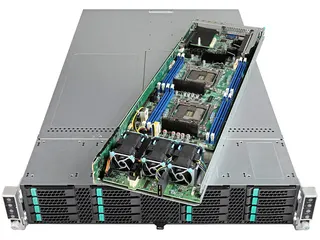

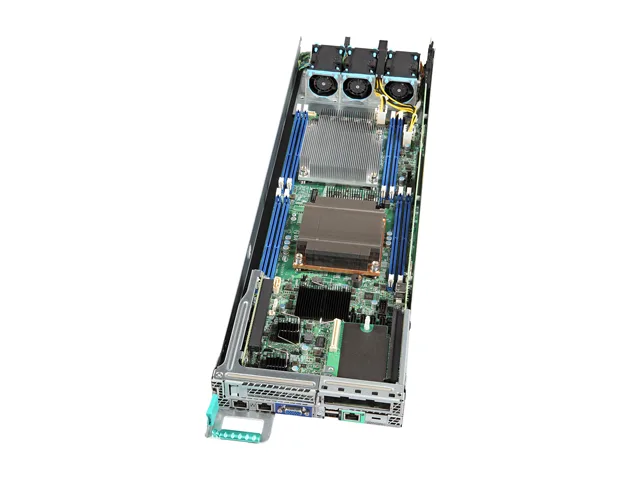

This Intel HNS2600KPF barebone system fits a standard 1U rack and supports two Xeon processors in LGA2011-3 sockets. It includes the server board, bridge board, power board, riser card, two passive heat sinks, three dual-rotor fans, an air duct and a node tray. The platform accepts DDR4-2133 memory up to 512 GB.

Suits high-density compute, not GPU work

Dual-socket design targets virtualization hosts, dense database nodes and HPC clusters that need many cores in 1U. Ten SATA ports and hardware RAID cover local storage arrays. Only two PCIe expansion slots and no GPU clearance rule out graphics-heavy workloads or multi-accelerator builds.

Dual LGA2011-3 sockets decide fit

The board holds two Xeon CPUs in Socket R3 (LGA2011-3); single-socket operation is not the intended configuration. If your software licenses or workload scale require one processor, a different platform avoids wasted cost and power.

Highlights

  • Dual Xeon support scales compute density
  • DDR4-2133 memory up to 512 GB capacity
  • Ten SATA ports enable high storage counts
  • Two PCIe slots provide expansion flexibility
  • 1U rack form factor fits dense deployments

Specifications

BrandIntel
ModelHNS2600KPF
CPU TypeXeon
CPU SocketSocket R3 (LGA2011-3)
Memory Type SupportedDDR4-2133/PC4-17000
PCI Express2
Serial ATANumber of SATA Interfaces:10
FeaturesNumber of Processors Supported:2
Number of Total Expansion Slots:2
Form Factor:Rack-mountable
Controller Type:Serial ATA
Maximum Memory:512 GB
RAID Supported:Yes
Ethernet Technology:Gigabit Ethernet
Total Number of USB Ports:4
Rack Height:1U
Package ContentsCompute Module HNS2600KPF
1 x Intel Server Board S2600KPF
1 x Bridge Board
1 x Node Power Board
1 x PCIe x16 Riser Card
2 x 1U Passive 91.5mm x 91.5mm heat sink
3 x 4056 Dual Rotor Fan
1 x Airduct
1 x 1U Node Tray
Shipping weight2.11 kg
Package size25 × 25 × 25 mm

Questions about this item

How much heat do the three 4056 dual-rotor fans and two 91.5 mm heat sinks move when the 1U server runs continuously?

The system includes three 4056 dual-rotor fans and two 1U passive 91.5 mm heat sinks designed for continuous 1U rack operation.

Which processors and memory must I supply to complete this barebone system?

You need two Xeon CPUs for the LGA2011-3 sockets and DDR4-2133 modules up to 512 GB total.

Can I keep my existing SATA drives and Gigabit network cabling with this node?

Yes, the board provides ten SATA ports with RAID support and Gigabit Ethernet, so current SATA storage and copper networking connect directly.
