Compact black HDMI splitter box with US power plug attached

YINGHUA

YINGHUA 1x4 HDMI Splitter 1080P Video Splitter (US Plug)

SKU CH-21R7-7H4RA

Distributes one HDMI source to four displays up to 1080p with signal amplification and HDCP support

  • TypeHDMI
  • Splits one HDMI source to four displays simultaneously
  • Supports resolutions up to 1080p at 4.95 Gbps bandwidth
  • Extends signal reach beyond 15 metres via serial connection
  • Fully compatible with HDCP for protected content playback
  • Powers from universal 110-240 V supply at 5 watts

1×4 HDMI Splitter for 1080p Sources

This HDMI 1.4 splitter takes one source and sends the same signal to four displays. It handles 480p, 576p, 720p, 1080i and 1080p resolutions with HDCP compliance. The unit includes signal buffering and amplification for runs up to 15 metres. It suits home-theatre, gaming-console or PC users who need identical output on multiple screens.

Check source resolution and cable runs

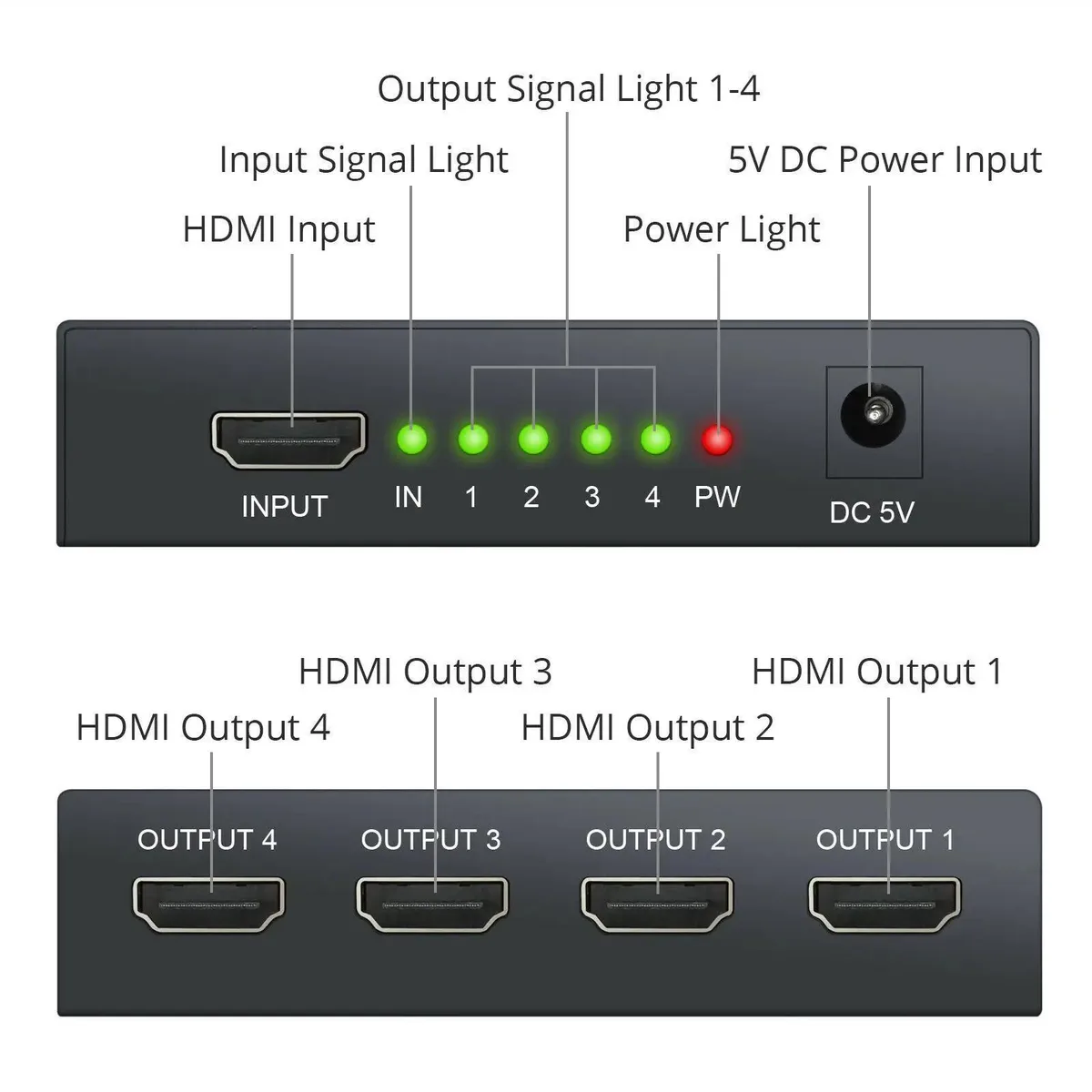

Verify your source device outputs one of the supported resolutions up to 1920×1200. Each display needs its own HDMI cable to the splitter’s four Class A 19-pin female ports. The splitter draws 5 W from the included 5 V DC adapter that accepts 110–240 V at 50 Hz. No software configuration is required for basic operation.

Distributes one signal to four displays

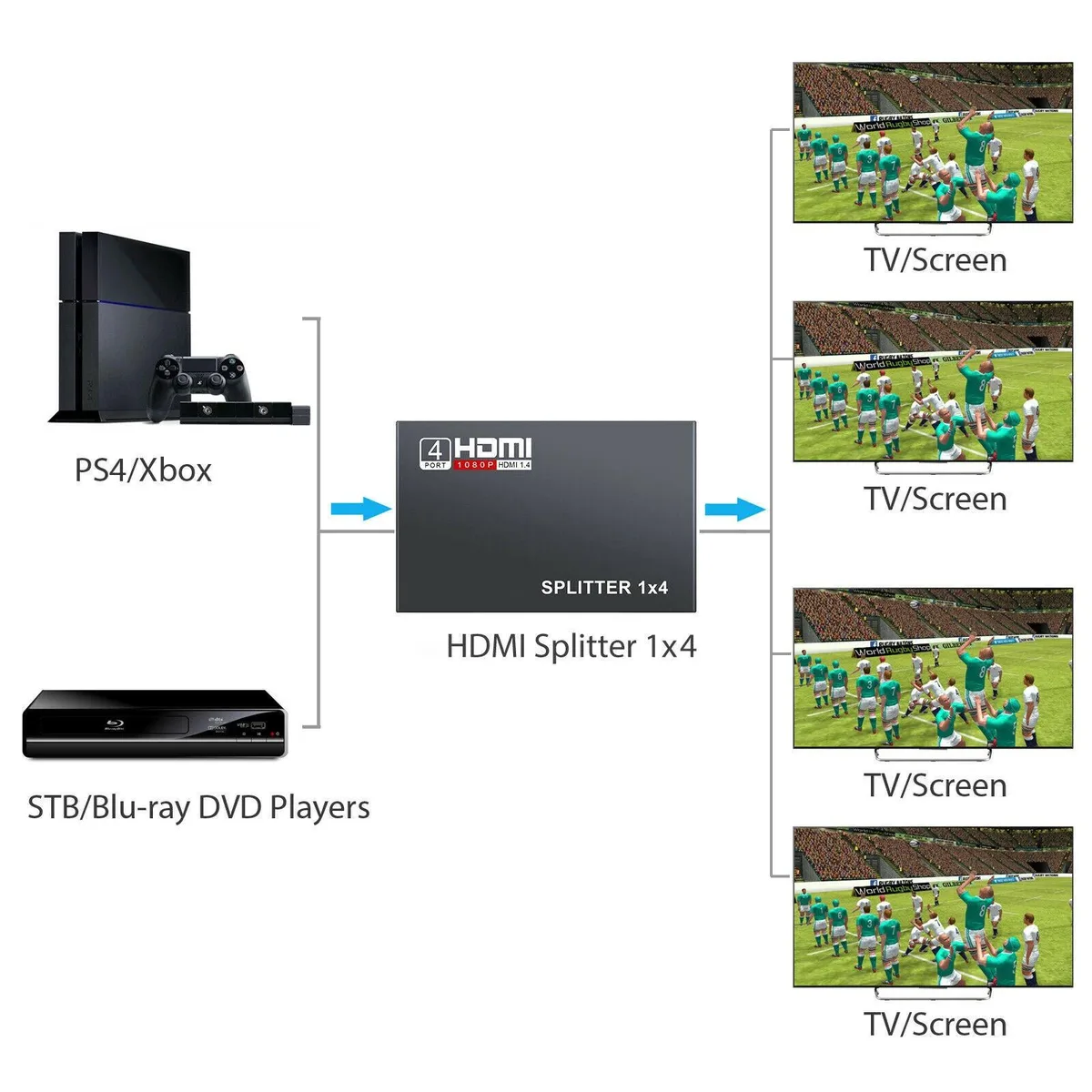

Connect the source to the single HDMI input, then run cables to up to four HDTVs, projectors or monitors. The amplifier maintains signal quality over the quoted distance and supports 3D formats. Stacking additional splitters can expand the output count further. The device does not convert video to DVI despite the DVI-I reference in the spec sheet.

Highlights

  • Splits one HDMI source to four displays simultaneously
  • Supports resolutions up to 1080p at 4.95 Gbps bandwidth
  • Extends signal reach beyond 15 metres via serial connection
  • Fully compatible with HDCP for protected content playback
  • Powers from universal 110-240 V supply at 5 watts

Specifications

TypeHDMI

Questions about this item

What cables are included with the 1x4 HDMI splitter and what must I buy separately?

The splitter has one HDMI input and four HDMI outputs using Class A 19-pin female ports; you supply the source cable and up to four display cables.

Should I choose this 1080p model or look for a higher-resolution version?

This unit supports 480p, 576p, 720p, 1080i and 1080p up to 4.95 Gbps bandwidth; choose a 4K-capable splitter if you need 2160p.

What does the 1080p rating mean when I connect four 1080p displays at once?

The splitter duplicates the same 1080p signal to all four outputs simultaneously; each display receives an identical 1920x1080 image.
