Small black box with one HDMI input and two HDMI outputs

YINGHUA

YINGHUA 1x2 HDMI Video Splitter 1080p 60Hz

SKU CH-N31C-7R0MX

Splits one HDMI source to two displays at 1080p 60Hz with support for deep color and multi-channel audio formats

  • TypeHDMI
  • One input drives two displays for multi-room viewing
  • Full 1080p 60 Hz video with zero quality loss
  • Deep-colour 30-bit and 36-bit support for richer gradients
  • High-bitrate audio formats including DTS-HD and Dolby TrueHD
  • Long cable runs: 15 m in, 20 m out at AWG26

HDMI 1×2 splitter for dual displays

The YINGHUA 1×2 HDMI splitter takes one source and sends it to two screens at the same time. It handles Full HD and 3D content up to 1080p at 60 Hz. The unit supports CEC pass-through and deep colour at 30 or 36 bit. Audio formats include DTS-HD, Dolby TrueHD and other common digital standards.

Passive operation with no fan noise

Because the device has no active cooling it runs completely silent. It draws minimal power from the HDMI source, so no external supply is required in typical set-ups. Signal retiming keeps the picture stable over longer cable runs. The compact enclosure adds no heat load to a rack or cabinet.

1080p 60 Hz maximum resolution

The splitter is limited to 1920×1080 at 60 Hz and HDMI 1.4a bandwidth of 2.25 Gbps. It will not pass 4K or higher refresh-rate signals. Buyers who need 4K distribution should choose a different model. Input cables up to 15 metres and output cables up to 20 metres (AWG26) are supported without quality loss.

Highlights

  • One input drives two displays for multi-room viewing
  • Full 1080p 60 Hz video with zero quality loss
  • Deep-colour 30-bit and 36-bit support for richer gradients
  • High-bitrate audio formats including DTS-HD and Dolby TrueHD
  • Long cable runs: 15 m in, 20 m out at AWG26

Specifications

TypeHDMI

Questions about this item

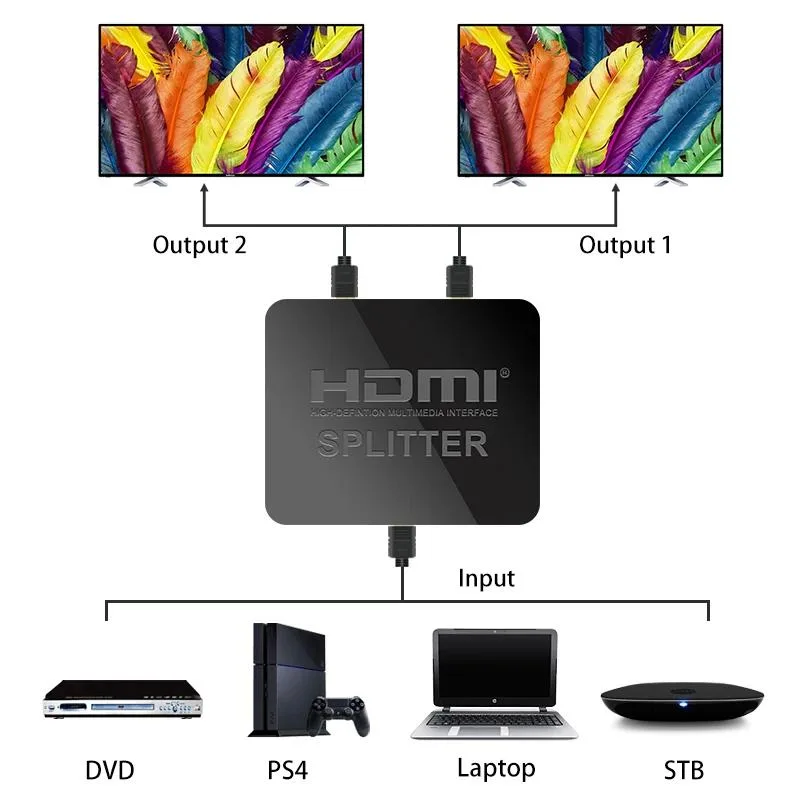

How do I connect the YINGHUA 1x2 HDMI splitter and what cable-length limit should I watch?

Plug the source into the single HDMI input and two displays into the outputs; use AWG26 cables no longer than 15 metres on the input side and 20 metres on each output side to stay within the rated signal range.

What ongoing maintenance does the splitter require and which part fails first?

The unit has no moving parts or filters; the only wear item is the external power adapter, which should be replaced if the splitter loses power or becomes unstable after extended use.

What resolution or bandwidth ceiling will I hit first during long sessions?

The chipset caps video at 1080p 60 Hz with a maximum TMDS bandwidth of 225 MHz (2.25 Gbps), so any source trying to push higher resolutions or refresh rates will be limited to that ceiling.
