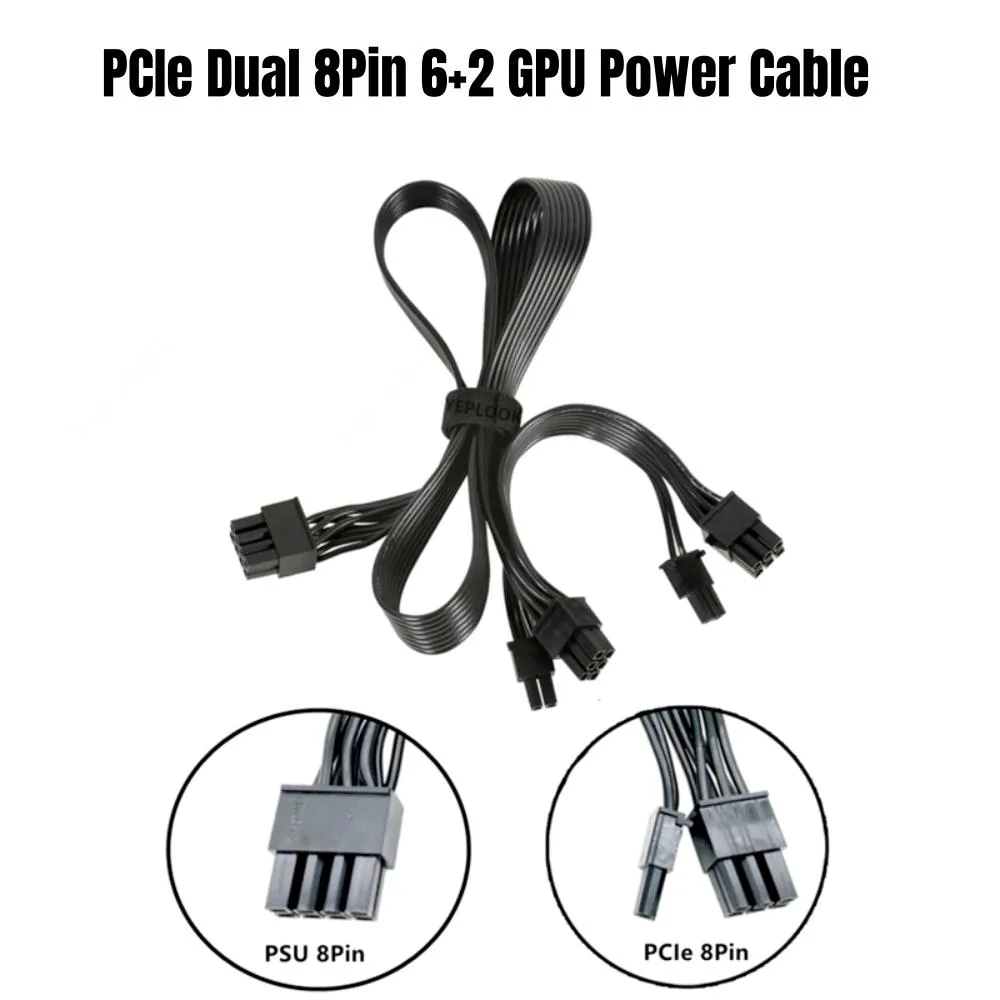

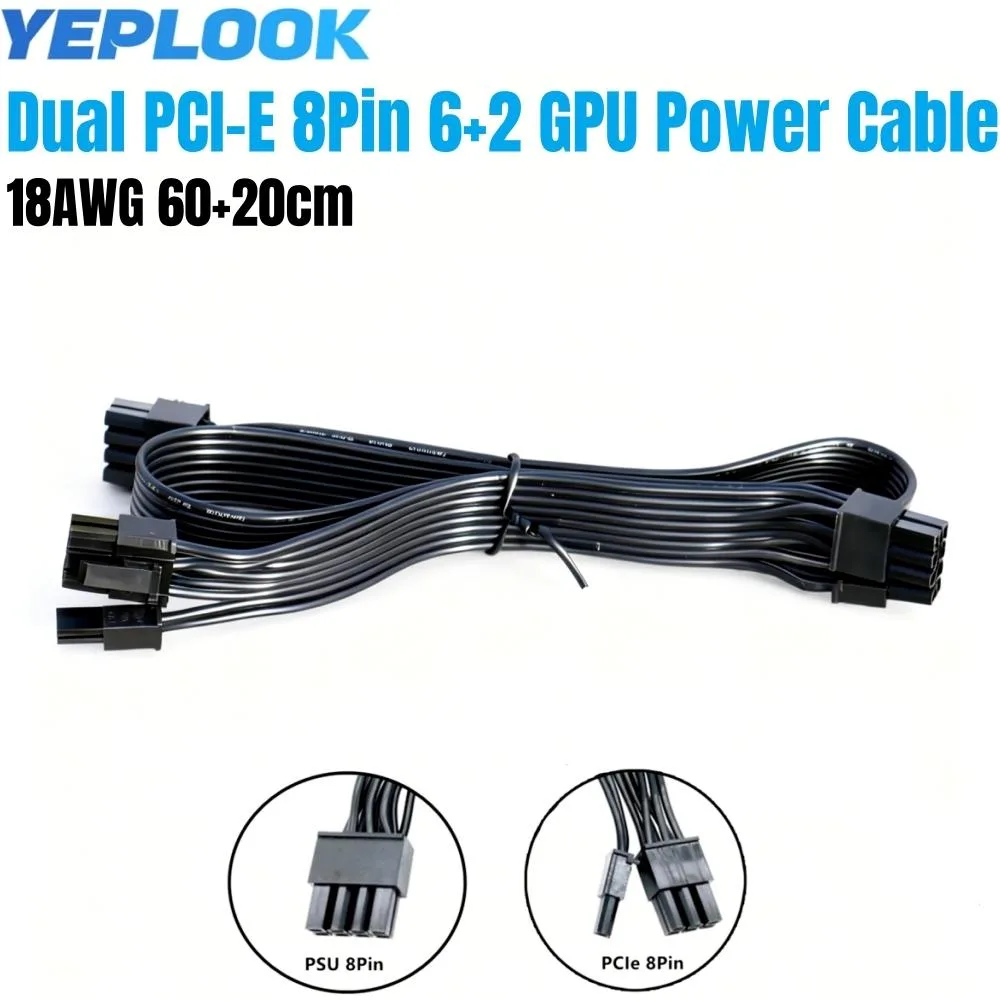

Black flat PCIe power cable with dual 6+2 pin connectors and pigtail

YEPLOOK

YEPLOOK PCIe Dual 8Pin 6+2Pin GPU Power Cable for Corsair RM Type 3

SKU CH-20AS-CDKWJ

A 60 cm PCIe cable with dual 6+2-pin connectors powers two graphics-card sockets from a single Corsair RM Type 3 modular PSU using 18 AWG wire

  • ColorBlack
  • Cable Length1.96 ft. (0.60m)
  • UL1007 18AWG wire resists heat for lasting reliability
  • Flexible flat design eases routing and cuts case clutter
  • 6+2-pin connectors fit both 6-pin and 8-pin GPU sockets
  • 60 cm main plus 20 cm pigtail suits large chassis builds
  • Made for Corsair RM Type 3 450-1000 W modular PSUs

Corsair RM Type 3 GPU Power Cable

This YEPLOOK cable connects Corsair RM Type 3 modular power supplies to graphics cards that require dual 8-pin PCIe power. It fits RM450, RM550, RM650, RM750, RM850 and RM1000 Gold units and is not compatible with Corsair Type 1, Type 2 or Type 5 series. Builders using other PSU brands or models cannot use this cable.

Length and Pinout Constraints

The cable measures 1.96 ft (0.60 m) from the PSU connector to the first PCIe plug, with an additional 20 cm pigtail to the second plug. The PSU end uses an 8-pin header that includes an empty pin position, which is the normal Type 3 layout. Mixing this cable with non-Corsair or wrong-type modular supplies may cause damage.

18AWG UL1007 Wire Gauge

Conductors are UL1007 rated 18AWG tin-coated copper, selected for heat resistance and long-term durability in high-current GPU applications. The flat ribbon construction simplifies routing and cable management inside the case. This gauge is the single specification that determines whether the cable can safely deliver the power your graphics card demands.

Highlights

  • UL1007 18AWG wire resists heat for lasting reliability
  • Flexible flat design eases routing and cuts case clutter
  • 6+2-pin connectors fit both 6-pin and 8-pin GPU sockets
  • 60 cm main plus 20 cm pigtail suits large chassis builds
  • Made for Corsair RM Type 3 450-1000 W modular PSUs

Specifications

BrandYEPLOOK
ColorBlack
Cable Length1.96 ft. (0.60m)

Questions about this item

Should I pick the single-length 60 cm cable or the 60+20 cm pigtail version?

The pigtail version provides a 60 cm main run plus a 20 cm branch, giving extra reach for a second GPU connector without adding a separate cable.

What does the 18 AWG wire rating mean for my graphics card once installed?

The 18 AWG conductors are rated for the current draw of modern GPUs, so the cable delivers stable power without excessive voltage drop or heat buildup.

How does the Corsair Type 3 pinout limit which power supplies I can use this cable with?

The cable matches only Corsair RM450, RM550, RM650, RM750, RM850 and RM1000 Type 3 units; it will not work with Type 1, Type 2, Type 5 or any non-Corsair modular PSU.
