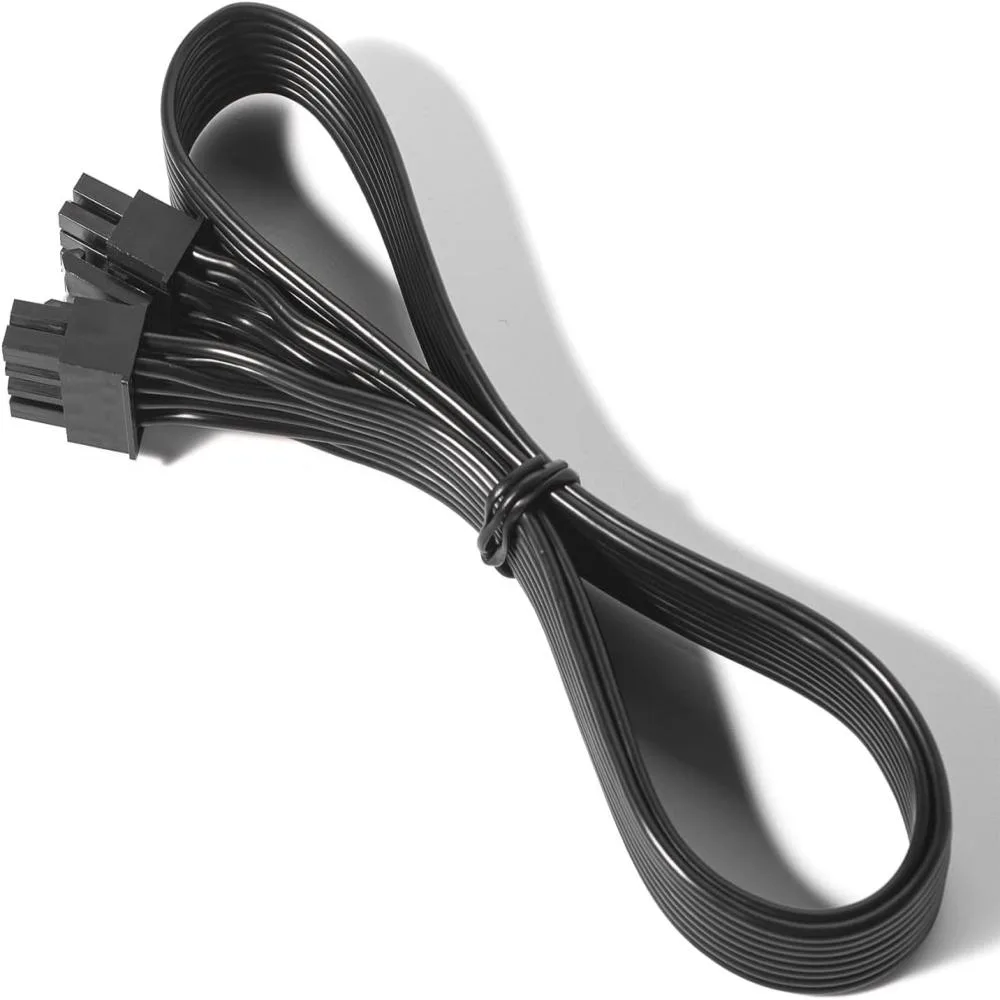

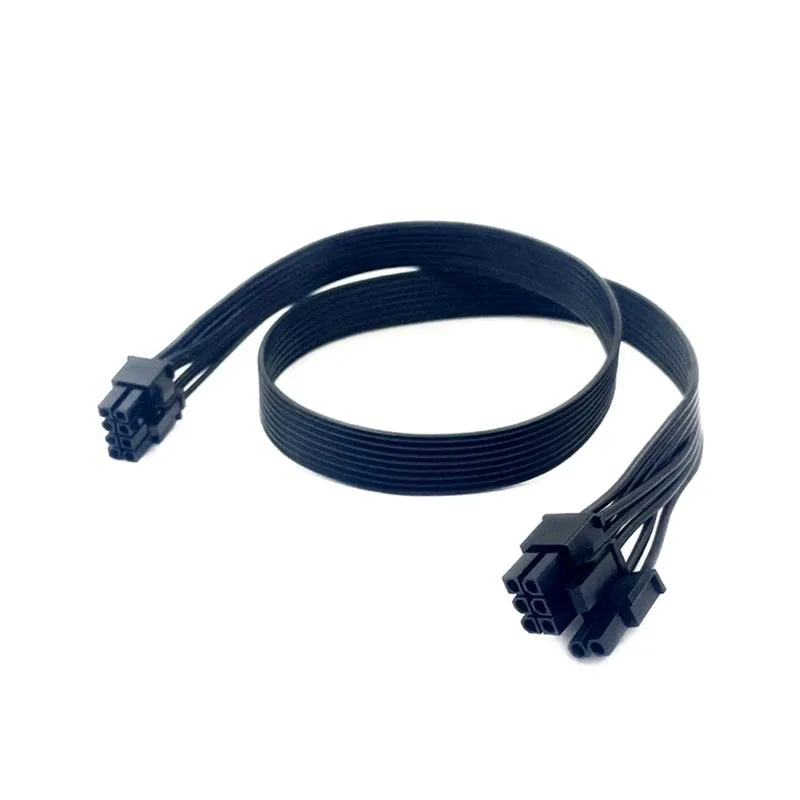

Black flat ribbon cable with 8-pin PSU connector and 6+2-pin PCIe plug, 600mm length

YEPLOOK

YEPLOOK PCIe 6+2Pin GPU Power Cable for Corsair HX PLATINUM 600mm

SKU CH-67JR-7YH2W

Flat ribbon PCIe 6+2-pin cable delivers up to 800 W to compatible graphics cards from Corsair HX Platinum PSUs, 600 mm long with 18 AWG tinned copper

  • Tinned copper wire extends cable life and eases routing
  • Flat ribbon design enables tight folds for cleaner cable management
  • 600 mm length reaches distant GPU sockets in large cases
  • PCIe 6+2 pin connector fits 6-pin or 8-pin graphics card sockets
  • Rated for up to 800 W supporting modern high-end GPUs

PCIe 6+2Pin GPU power cable for Corsair HX Platinum

This flat-ribbon cable connects a Corsair HX Platinum modular PSU to a graphics card with an 8-pin, 6-pin or 6+2-pin socket. It uses 18AWG tin-plated copper conductors rated for 300V and an operating range of -30°C to 80°C. The 600mm length suits mid-tower builds where cable routing space is limited. Builders who need a replacement or spare lead for these specific power supplies are the target user.

PSU-side 8-pin header must match Corsair Type 4 HX

The cable only works with Corsair HX750 Platinum, HX850 Platinum, HX1000 Platinum and HX1200 Platinum units that use the Type 4 pin-out. Mixing it with other Corsair series or any other brand will cause damage. One pin on the PSU connector is intentionally absent; this is the factory default layout, not a defect. Buyers who own RM, AX, SF or non-Platinum HX units cannot use this cable.

Slide-on 2-pin section converts 8-pin to 6-pin

The GPU end carries a detachable 2-pin block that slides off to leave a 6-pin plug, so the same lead fits cards with either socket. Flat ribbon construction makes tight folds easier than round sleeving, aiding cable management behind the motherboard tray. The missing PSU-side pin confuses some installers; verify the header layout against the original cable before powering on.

Highlights

  • Tinned copper wire extends cable life and eases routing
  • Flat ribbon design enables tight folds for cleaner cable management
  • 600 mm length reaches distant GPU sockets in large cases
  • PCIe 6+2 pin connector fits 6-pin or 8-pin graphics card sockets
  • Rated for up to 800 W supporting modern high-end GPUs

Specifications

BrandYEPLOOK

Questions about this item

How much power can this 600mm cable deliver to my graphics card?

The cable supports up to 800W, covering cards such as RTX3080, RTX4090 and RX6900XT when connected to a compatible Corsair HX PLATINUM unit.

What PSU-side connector does this cable use and which power supplies accept it?

It uses a Corsair Type 4 8-pin header that fits only HX750, HX850, HX1000 and HX1200 PLATINUM modular power supplies.

What are the physical dimensions and wire gauge of the cable?

The flat ribbon measures 600mm (23.62 in) long and is built with 18AWG tin-plated copper conductors rated for 300V and -30°C to 80°C.
