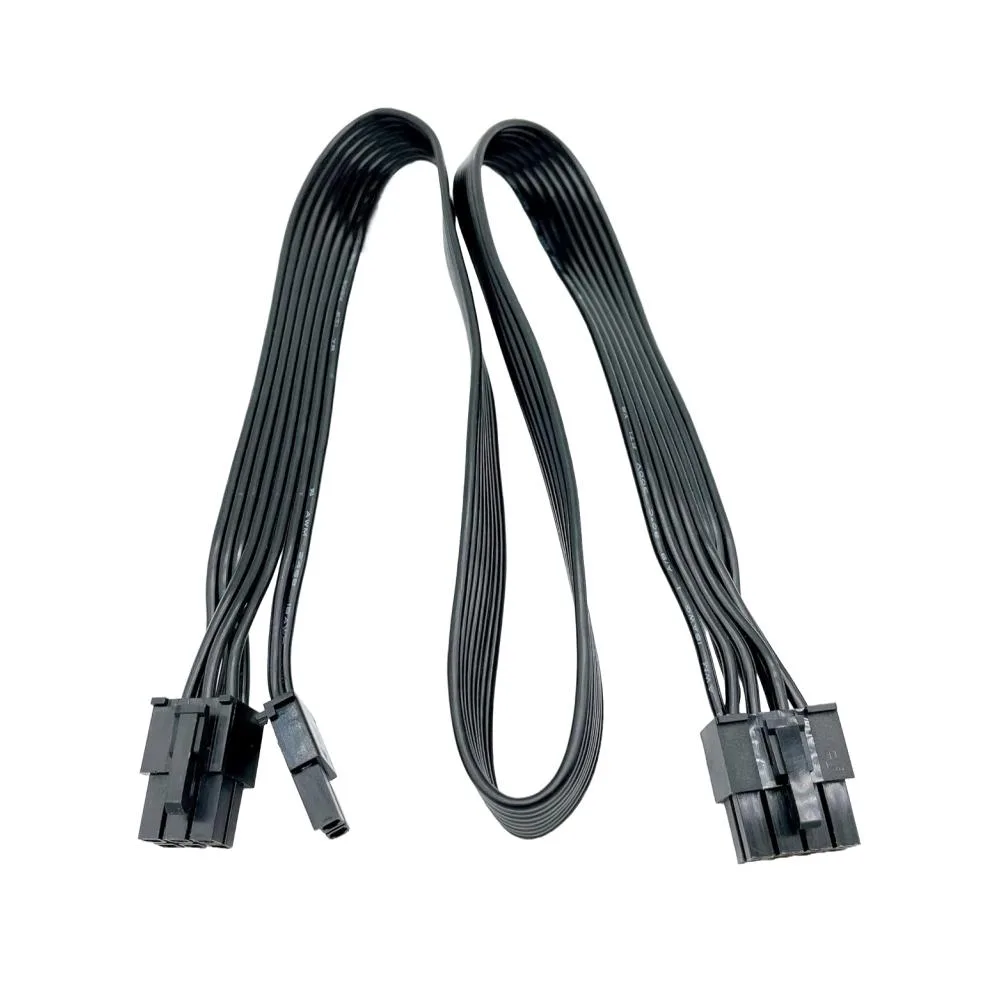

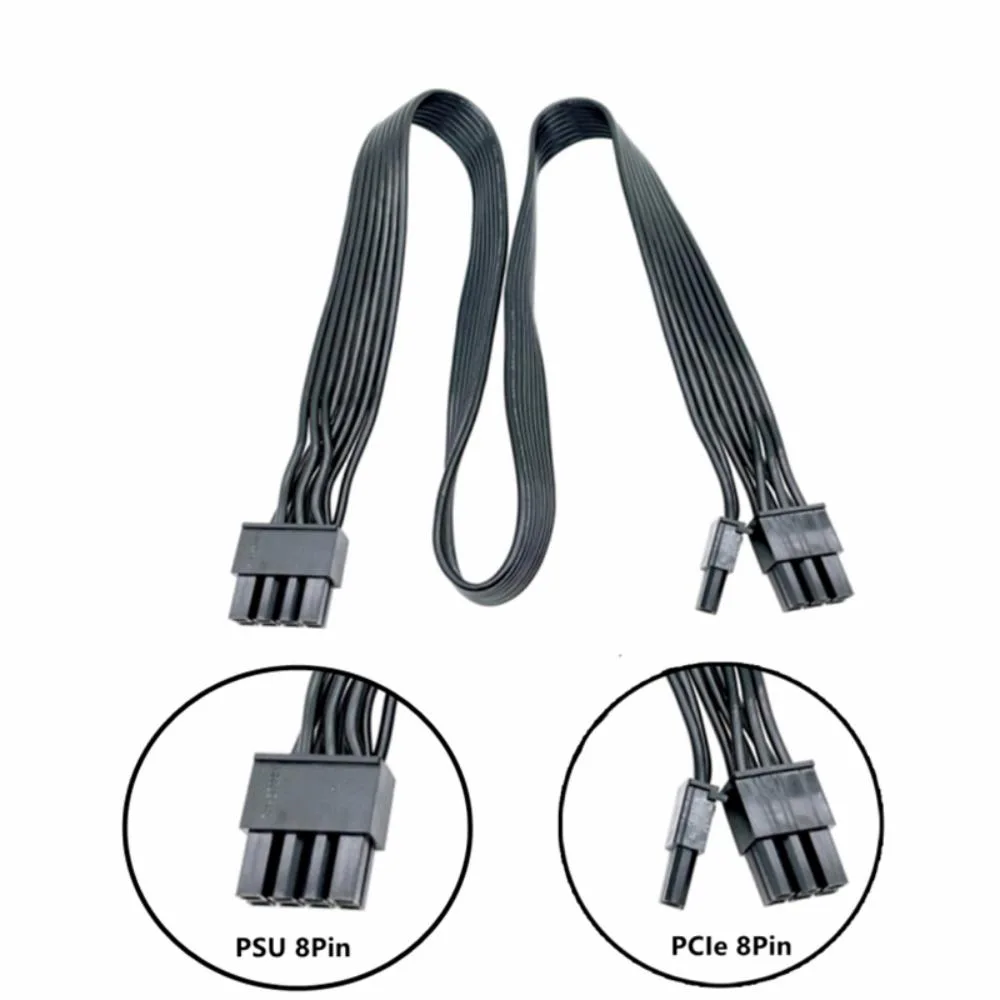

Black flat PCI-e 6+2 pin GPU power cable, 60 cm long

YEPLOOK

YEPLOOK PCI-e 6+2Pin 8Pin 18AWG 60CM internal power cable

SKU CH-DD6K-2SB51

Supplies GPU power from Corsair TX-M Gold PSUs via 18 AWG tinned copper flat cable with 6+2 pin connector, 60 cm length, rated 300 V and 800 W maximum

  • ColorBlack
  • Cable Length1.96 ft. (0.60m)
  • Tinned copper construction adds protection and extends cable life
  • Flat ribbon design enables tight folds for cleaner cable routing
  • 6+2 pin connector slides to fit 6-pin or 8-pin GPU sockets
  • 18 AWG wire rated for 300 V and up to 800 W GPU power draw
  • Built for Corsair TX-M Gold series PSUs with matching 8-pin header layout

PCI-e 6+2Pin 8Pin GPU power cable

This YEPLOOK internal power cable connects a Corsair TX-M Gold semi-modular power supply to a graphics card using a single 8-pin PCI-e 6+2Pin connector. It is built with 18AWG tin-plated copper wire and a flat profile for easier routing inside the case. The cable measures 60cm in length and is intended for new system builds or cable replacements.

Check PSU model and header layout before ordering

This cable works only with Corsair TX850M, TX750M, TX650M and TX550M 80 PLUS Gold semi-modular units, often labelled Type 3. It will not fit other brands or Corsair series, and mixing cables can cause damage. Verify that the PSU-side 8-pin header matches your original cable, noting that one empty pin on the PSU connector is a normal design feature.

Replaces a lost or damaged Corsair Type 3 PCI-e

The upgrade is worthwhile when the original GPU power lead is missing, too short or physically worn, and you need a 60cm flat cable rated for up to 800W. It supports graphics cards with 6-pin, 8-pin or 6+8-pin power sockets by sliding the 2-pin section on or off. Do not buy this if your power supply is not one of the listed TX-M Gold models.

Highlights

  • Tinned copper construction adds protection and extends cable life
  • Flat ribbon design enables tight folds for cleaner cable routing
  • 6+2 pin connector slides to fit 6-pin or 8-pin GPU sockets
  • 18 AWG wire rated for 300 V and up to 800 W GPU power draw
  • Built for Corsair TX-M Gold series PSUs with matching 8-pin header layout

Specifications

BrandYEPLOOK
ColorBlack
Cable Length1.96 ft. (0.60m)

Questions about this item

What comes in the package and do I need to buy anything else to connect my graphics card?

The box contains one PCI-e single 8-pin 6+2-pin GPU power cable. No extra parts are required; the 6+2-pin connector slides to fit either a 6-pin or 8-pin socket on the card.

The listing mentions Corsair TX-M Gold Type 3 units — how do I know which capacity matches my power supply?

This cable is made for Corsair TX850M, TX750M, TX650M and TX550M 80 PLUS Gold semi-modular supplies. Check the label on your PSU; if it matches one of those four model numbers the cable will fit the Type 3 modular header.

The headline says 800 W support — what does that mean once the cable is installed in my system?

The 18 AWG tinned copper conductors are rated for up to 800 W of GPU power draw, so the cable can deliver the full current needed by high-end cards without overheating, provided your power supply itself can supply that wattage.
