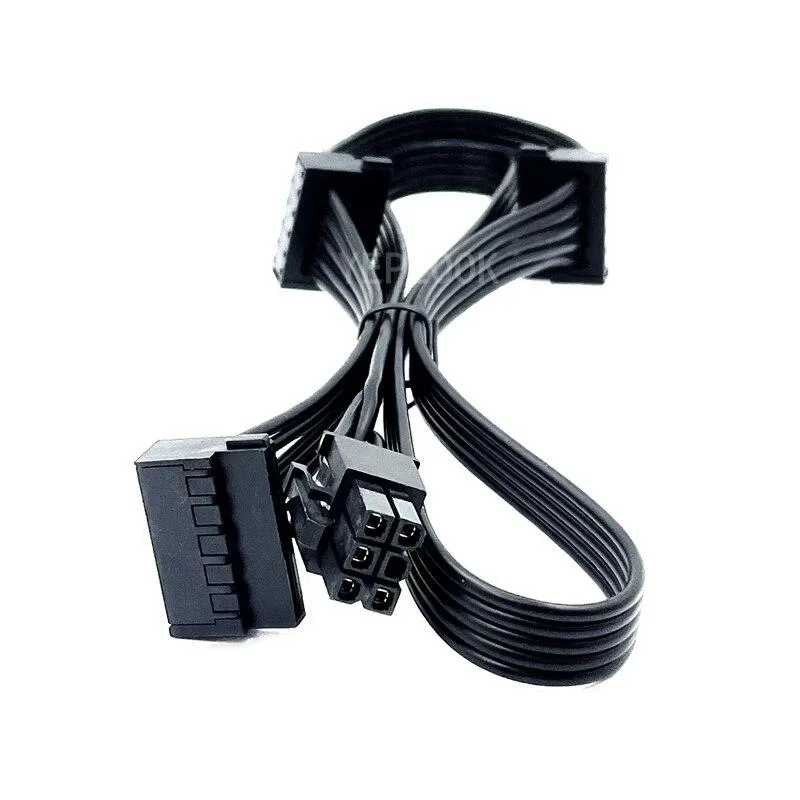

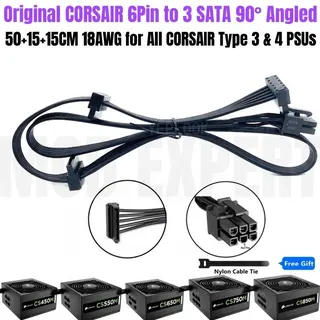

Black 6-pin to three SATA power cable with angled connectors, 18AWG, 50+15+15cm lengths

YEPLOOK

YEPLOOK 6Pin to 3 SATA Angled Cable 18AWG 50+15+15CM

SKU CH-V3E9-75STA

Connects three SATA drives to a Corsair Type 4 modular PSU with angled 18AWG cables

  • ColorBlack
  • Connect three drives from one PSU port
  • 6-pin to triple SATA splitter cable
  • Fits Corsair Type 3 and Type 4 modular PSUs
  • 18 AWG UL1007 wire resists heat and aging
  • Angled SATA plugs simplify tight-case cable routing

Compatible Power Cable

This 6-pin to triple SATA cable connects Corsair Type 3 and Type 4 modular power supplies to drives and riser cards. The 18 AWG UL1007 wiring handles the load while the angled plugs keep the routing tidy. Lengths are 50 cm to the first connector then 15 cm between each of the three SATA ends. It is a new component built for direct replacement or expansion.

Build Quality and Daily Use

The black sheathing resists heat and aging, and the wire bends easily for clean cable management inside the case. An empty pin hole on the 6-pin side is normal for this pinout and not a defect. Each SATA connector plugs into SSDs, hard drives or riser cards, while the 6-pin end seats firmly in the PSU modular port. The angled design reduces strain on both the power supply and the connected devices.

Upgrade Context and Limits

This cable replaces a missing or damaged lead for Corsair AXi, HXi, HX Gold, RM, RMi, TXm and CXm series units listed in the compatibility table. It adds three SATA power points from a single 6-pin port, useful when the stock cables fall short. Builders needing more than three drives or a different connector type will need additional cables. Compatibility is limited to the Corsair models explicitly named.

Highlights

  • Connect three drives from one PSU port
  • 6-pin to triple SATA splitter cable
  • Fits Corsair Type 3 and Type 4 modular PSUs
  • 18 AWG UL1007 wire resists heat and aging
  • Angled SATA plugs simplify tight-case cable routing

Specifications

ColorBlack

Questions about this item

What does the 6-pin to 3 SATA interface cap in practice?

The cable connects a Corsair Type 4 or Type 3 modular PSU to three SATA devices such as SSDs, hard drives or riser cards using 18AWG wire.

What physical space and clearance does the 50+15+15CM cable need to fit?

The main run is 50 cm from the PSU to the first SATA plug, then two 15 cm daisy-chain segments; the angled SATA connectors reduce clearance behind drives.

How is the cable installed and which step do people get wrong?

Plug the 6-pin end into the correct Corsair peripheral port, then attach each SATA plug; the empty NC hole on the 6-pin connector is normal and must not be filled.
