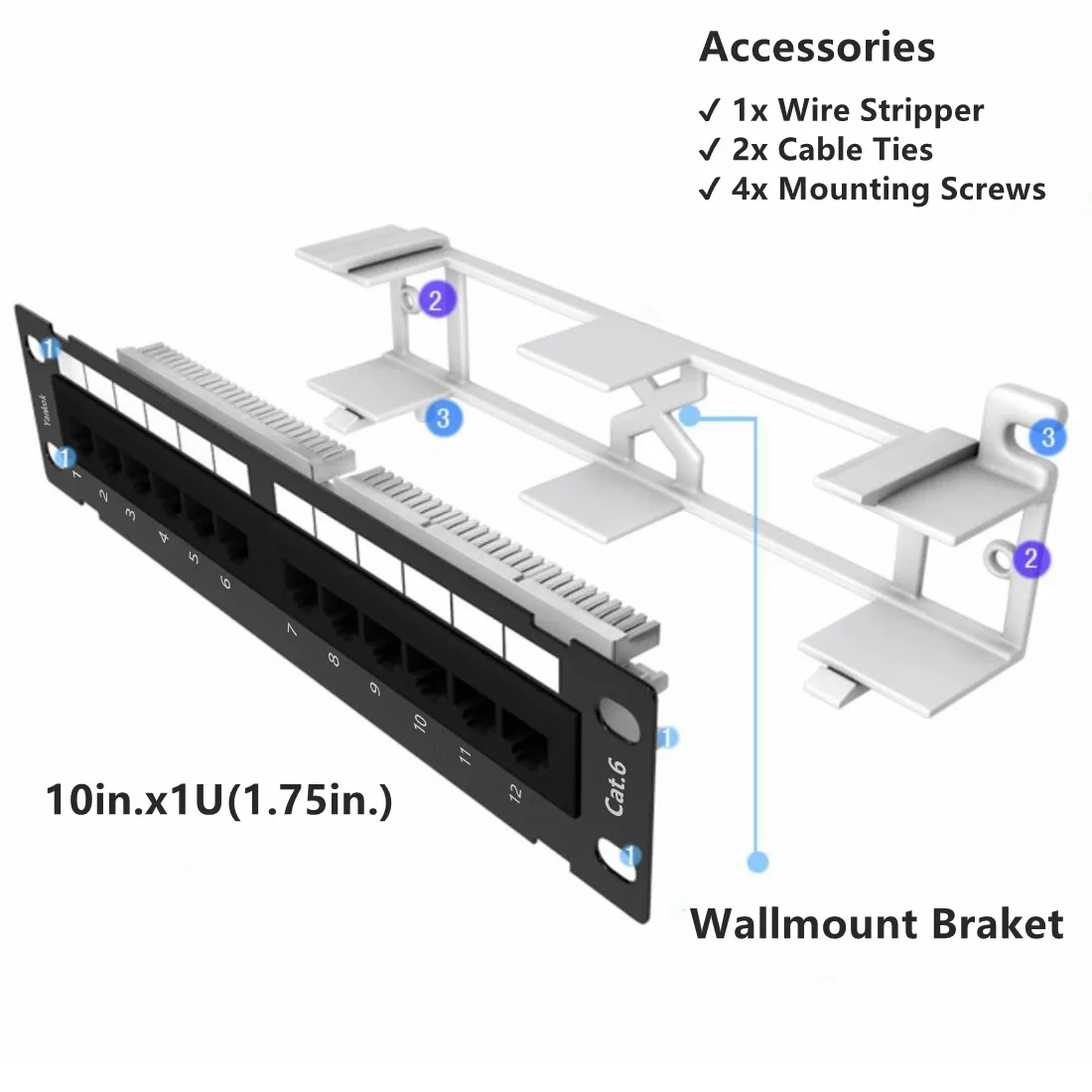

Black 12-port CAT6 patch panel with mounting bracket and mini punch-down tool

Yankok

Yankok CAT6 12 Port Patch Panel with Bracket and Mini Punch Down Tool

SKU CH-X73M-P64VG

A 12-port CAT6 patch panel with bracket and mini punch-down tool for rack or wall mounting

  • ColorBlack
  • TypeCAT6 12 Port Patch Panel
  • 12-port CAT6 panel supports legacy CAT5/5e cabling

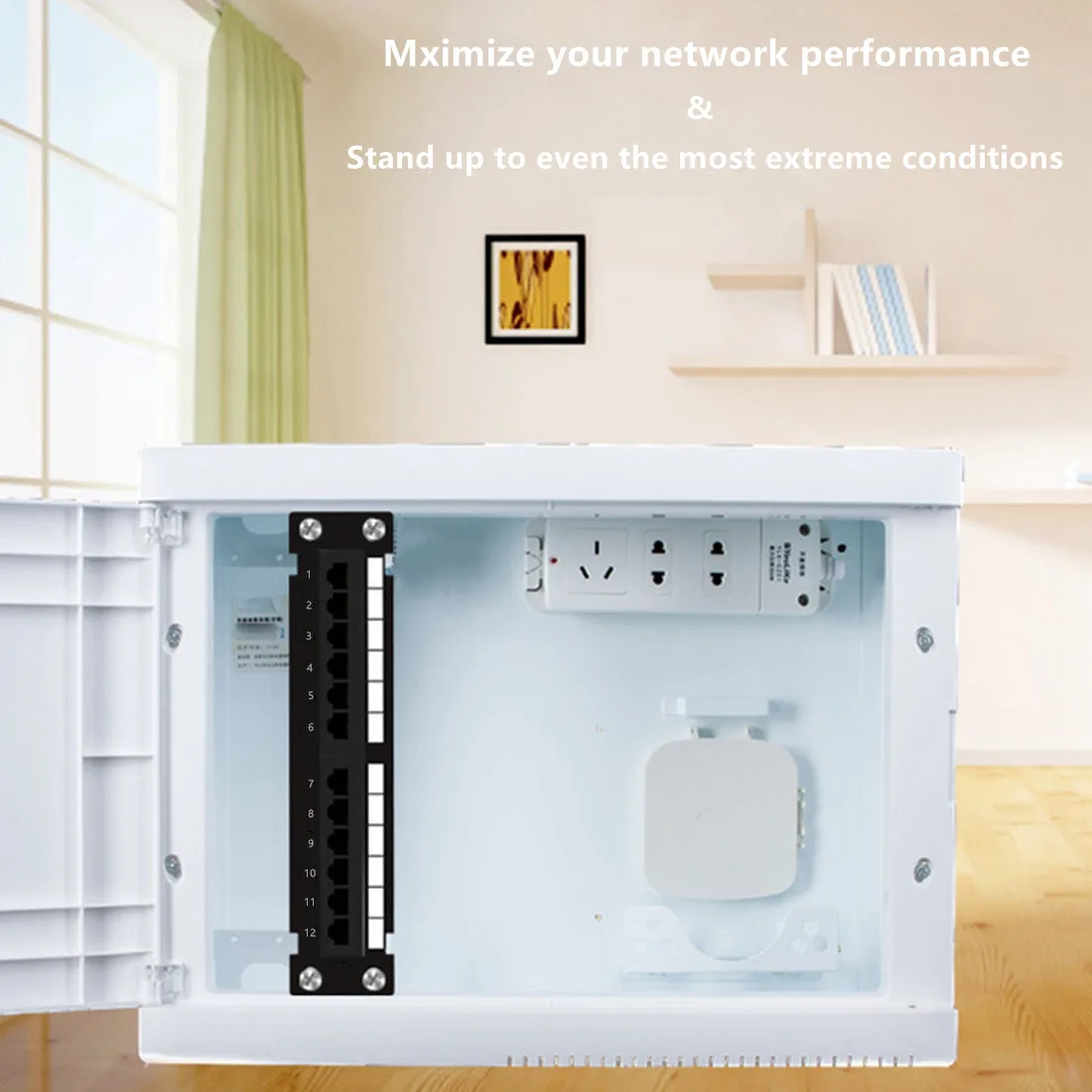

  • 1U 10-inch rack or wall mount fits tight spaces
  • Gold-plated RJ45 contacts with 110 punch-down ensure reliable termination
  • Includes mini punch-down tool cable ties and mount screws
  • Meets TIA/EIA 568-A/B and ISO/IEC 11801 standards

12-Port CAT6 Patch Panel

This 12-port CAT6 patch panel accepts 22 to 26 AWG solid or stranded cables and supports backward compatibility with CAT5 and CAT5e cabling. It mounts in a 1U rack space measuring 10 inches wide and includes a bracket for rack or wall installation. A mini punch-down tool, cable ties and mounting screws are supplied in the package.

Installers needing a compact termination point

The panel suits installers who want a pre-configured 110-style punch-down block with colour-coded T568A/B wiring labels on a black powder-coated steel frame. It is not for buyers who require shielded FTP or STP termination, angled RJ45 ports, or a higher port count in the same 1U footprint.

110-style punch-down termination

The rear uses 110 IDC contacts for solid or stranded conductors and the front presents 180-degree RJ45 jacks rated to 250 MHz. Gold-plated contacts and UL listing confirm compliance with TIA/EIA 568 and ISO/IEC 11801 standards for gigabit Ethernet performance.

Highlights

  • 12-port CAT6 panel supports legacy CAT5/5e cabling
  • 1U 10-inch rack or wall mount fits tight spaces
  • Gold-plated RJ45 contacts with 110 punch-down ensure reliable termination
  • Includes mini punch-down tool cable ties and mount screws
  • Meets TIA/EIA 568-A/B and ISO/IEC 11801 standards

Specifications

ColorBlack
TypeCAT6 12 Port Patch Panel

Questions about this item

What are the rack dimensions and mounting options for this 12-port patch panel?

The panel is 1U high at 44.5 mm or 1.75 inches and 10 inches long at 255 mm or 10.04 inches. It includes a bracket for both rack and wall mounting with four mount screws supplied.

How do I terminate cables on the 110-style punch-down blocks and which wiring scheme should I follow?

Use the included mini punch-down tool to seat each solid or stranded 22 to 26 AWG conductor into the 110 IDC contacts on the rear. Follow the printed colour-coded guide for either T568A or T568B wiring.

What ongoing care does the patch panel need and which parts might wear out?

The gold-plated RJ45 ports and steel frame require no routine maintenance. Only the mini punch-down tool may need replacement if its blade dulls after many terminations.
