White individually sleeved 16AWG cable kit with 90° 12VHPWR, 24-pin, 8-pin CPU and PCIe connectors

Xenlazar

Xenlazar NV40 Sleeved Cable Type B White 16AWG 12VHPWR 90°

SKU CH-M0C1-8KZ76

Individually sleeved white extension kit adds a 90-degree 12VHPWR cable for 600 W PCIe 5.0 graphics cards plus 24-pin, 8-pin CPU and 8-pin VGA connectors

  • TypeCable Connectors
  • ColorWhite
  • Length1" - 5"
  • Connector Number4
  • Connector DetailMB 24Pin/CPU 8Pin/VGA 8Pin/PCIE 16pin
  • Terminal GenderFemale to Male

Style Type B

  • Type B 12VHPWR fits Galax EVGA Asrock PNY Powercolor GPUs
  • 90° L‑angled patent design prevents pin looseness and contact defects
  • Supplies up to 600 W to PCIe 5.0 graphics cards
  • Individually sleeved paracord mesh gives a neat professional look
  • Pure white 16AWG copper extension kit includes 24‑pin 8‑pin and 16‑pin connectors

White 16AWG Extension Kit for PCIe 5.0 Builds

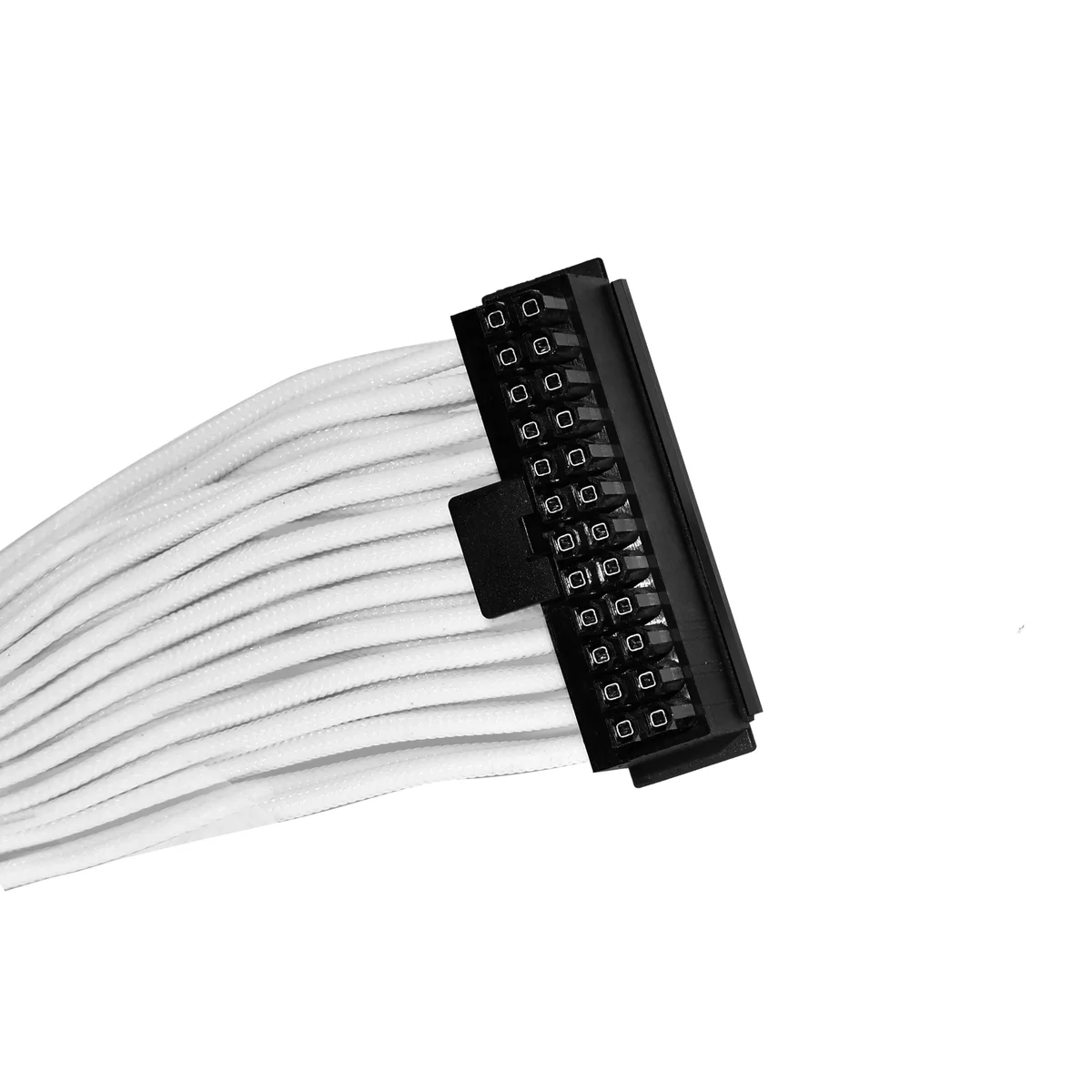

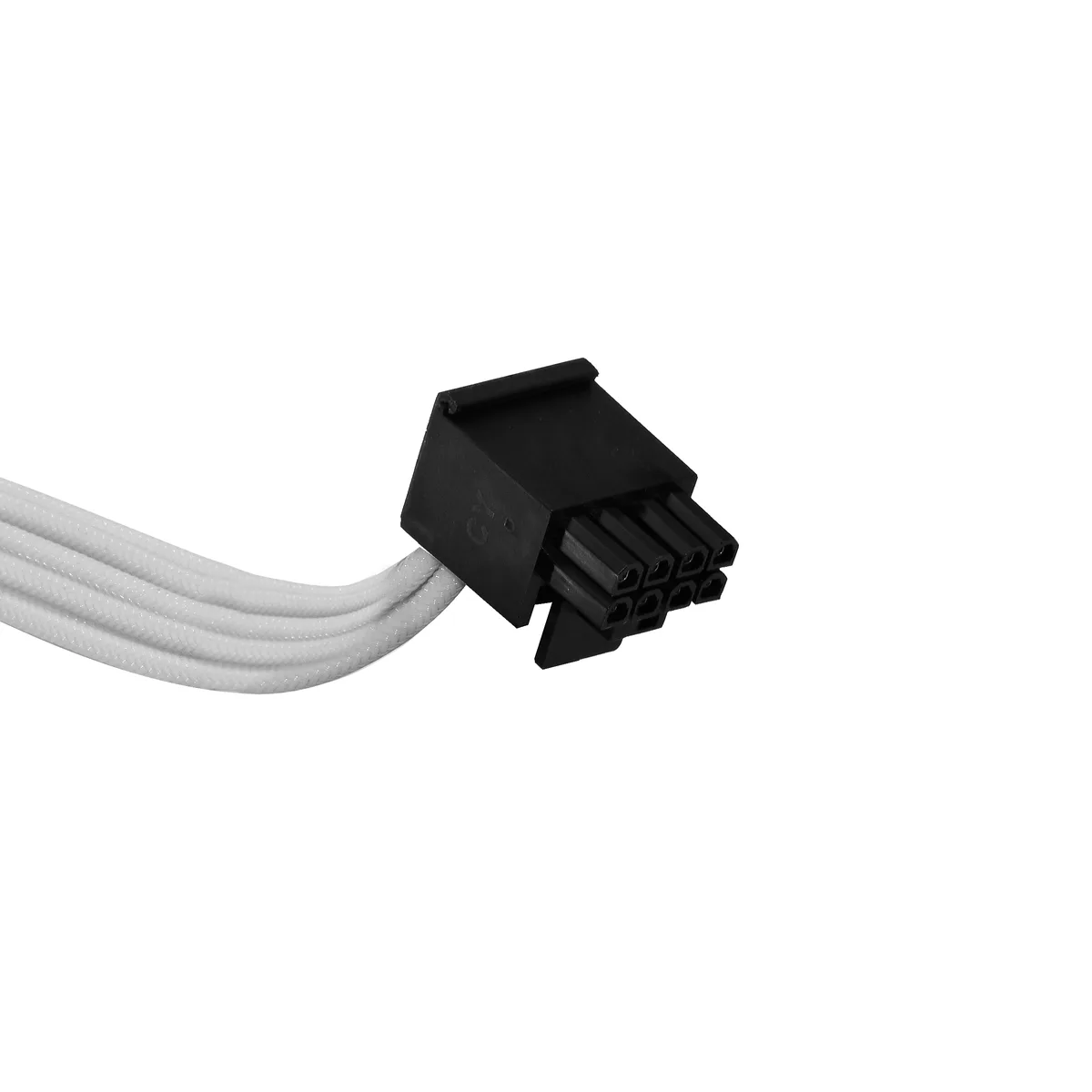

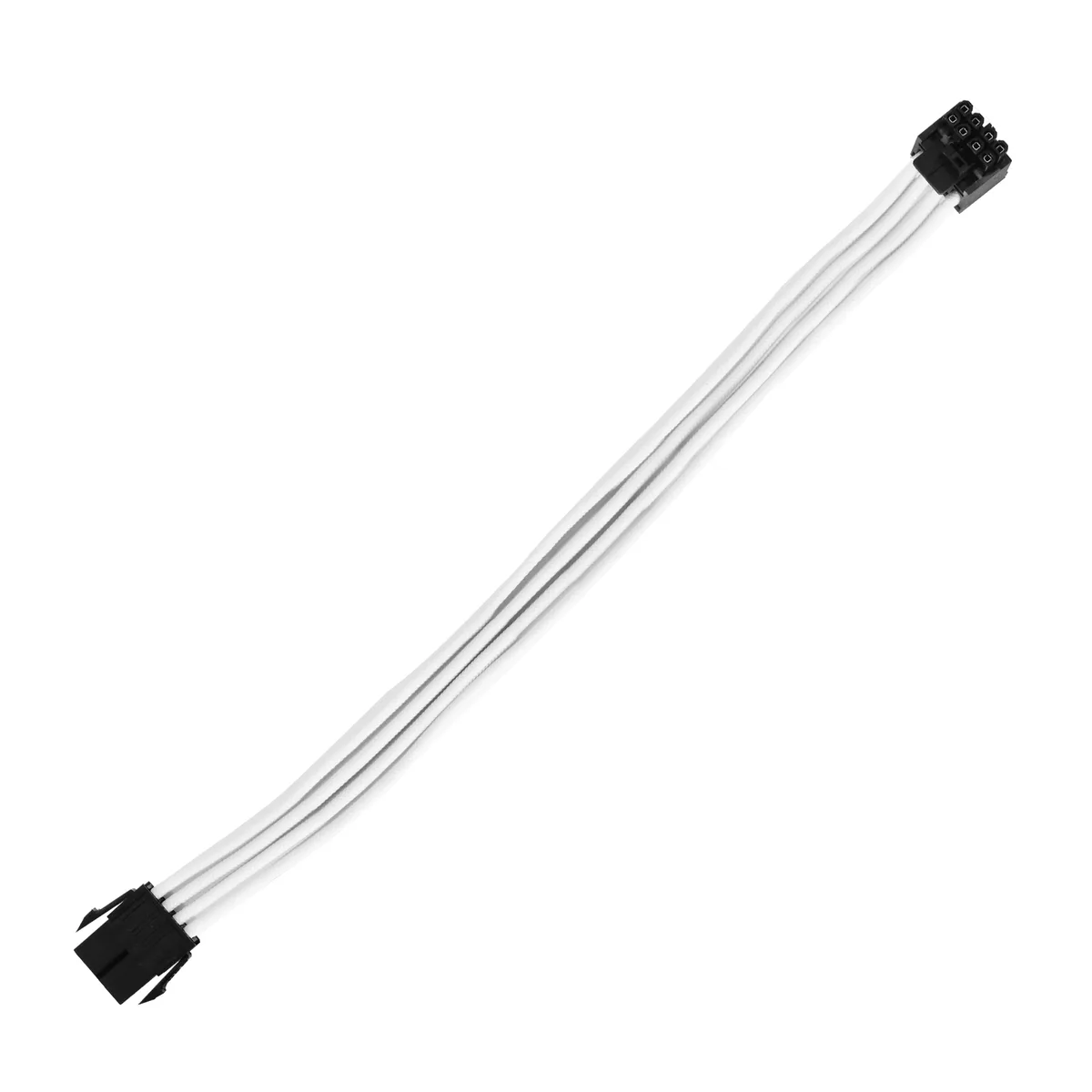

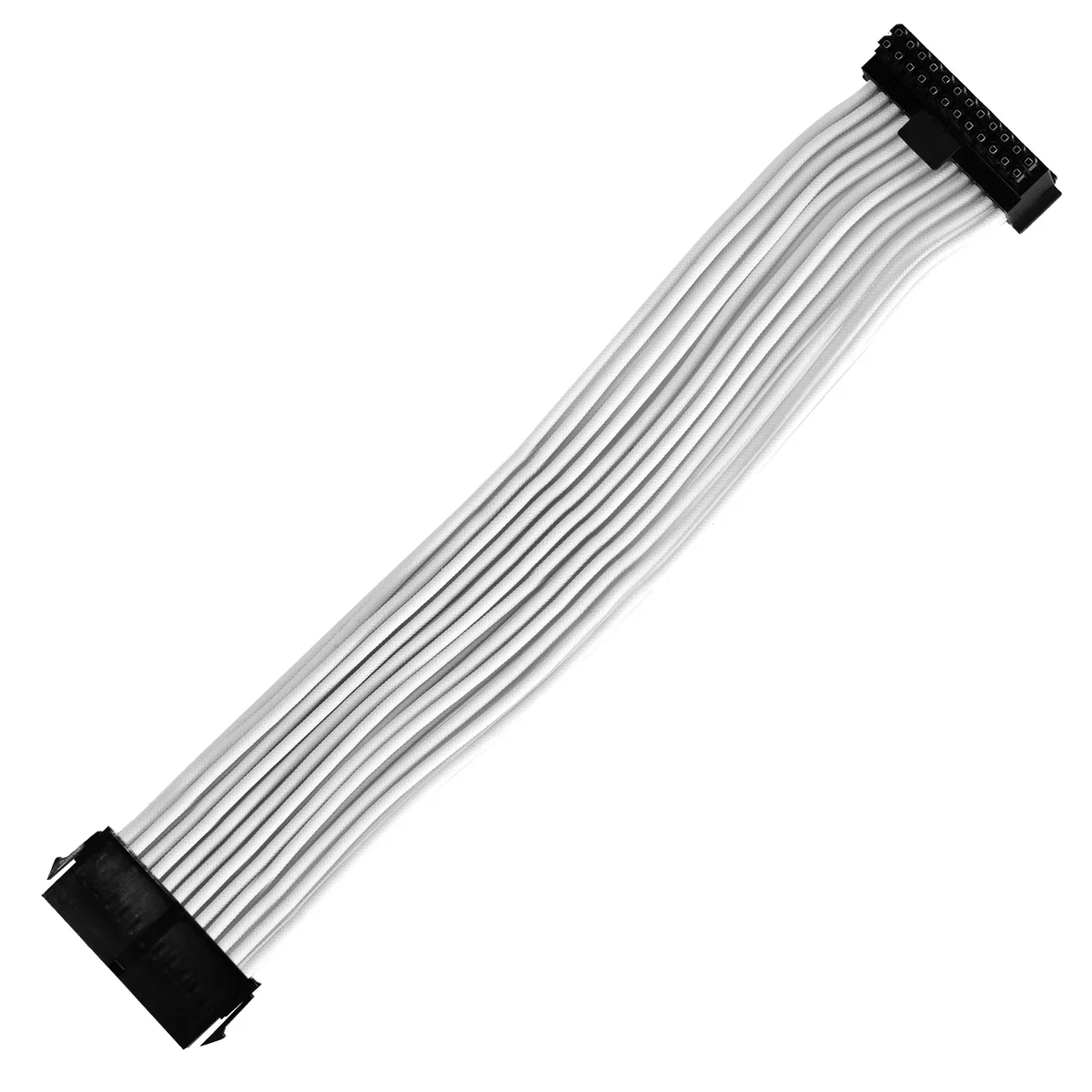

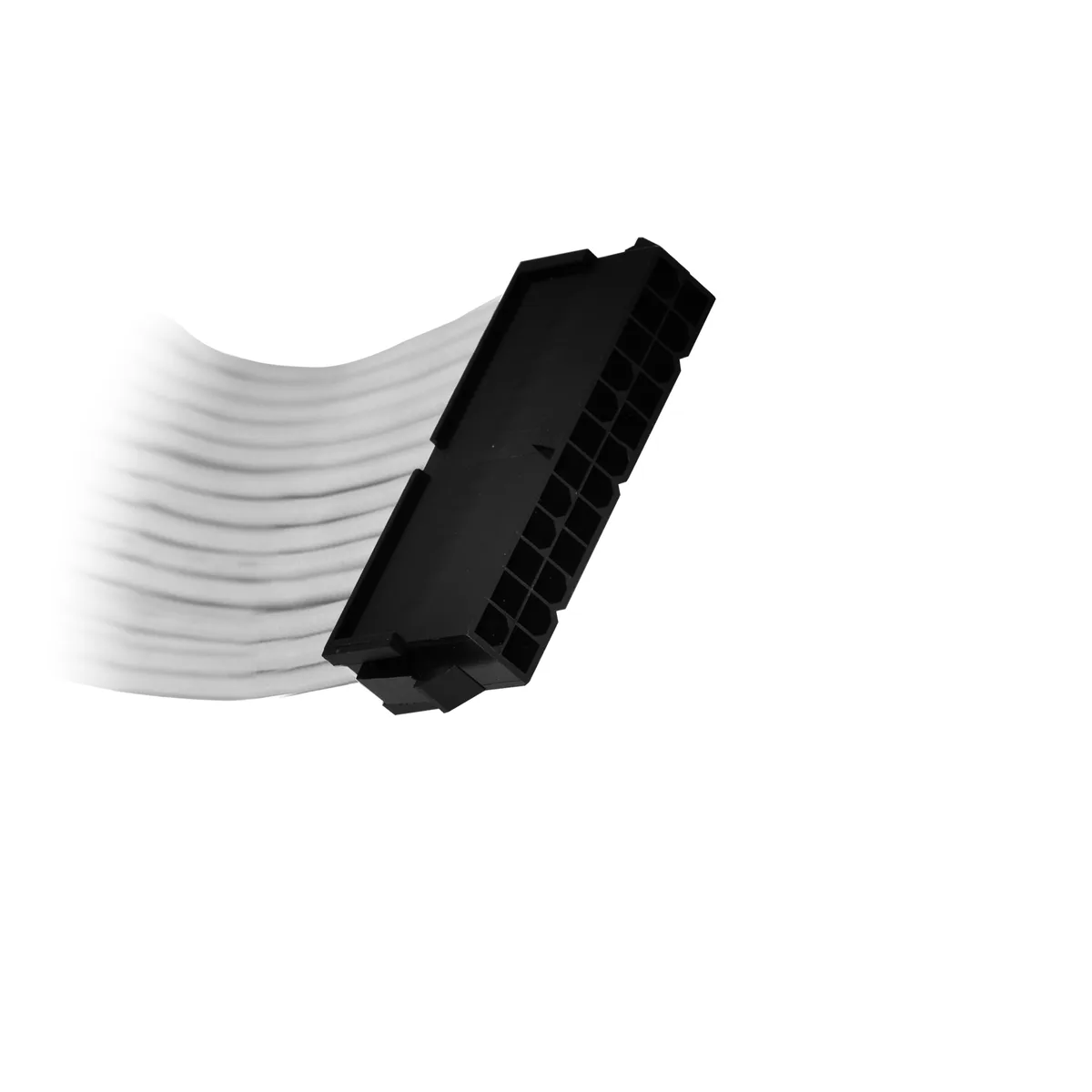

This set includes four individually sleeved cables covering the motherboard 24-pin, CPU 8-pin, VGA 8-pin and a 12VHPWR 16-pin connector. The pure white paracord sleeving gives a clean, professional appearance inside the case. Each cable runs from 1 to 5 inches long and uses 16AWG copper conductors. It is aimed at builders who want a tidy, colour-matched power loom for a modern graphics card.

Replaces Stock PSU Cables on High-Wattage GPU

The 12VHPWR lead is rated for 600W and complies with the PCIe 5.0 specification, removing the need for a separate adapter on compatible cards. The 90-degree Type B angled plug reduces strain on the connector and helps prevent loose pins or poor contact. This kit is not for systems that rely on older 6-pin or 8-pin PCIe power only, nor for builds where the PSU already supplies native 12VHPWR cables of sufficient length.

Female-to-Male Design Plugs Directly Into Existing

Installation is a simple pass-through: each extension connects between the power supply’s native cable and the component. The flexible mesh sleeving bends easily for routing, but the short 1-to-5-inch length limits placement options in larger chassis. Care is needed to seat the 12VHPWR connector fully, as the angled housing can mask a partial insertion if not checked visually.

Highlights

  • Type B 12VHPWR fits Galax EVGA Asrock PNY Powercolor GPUs
  • 90° L‑angled patent design prevents pin looseness and contact defects
  • Supplies up to 600 W to PCIe 5.0 graphics cards
  • Individually sleeved paracord mesh gives a neat professional look
  • Pure white 16AWG copper extension kit includes 24‑pin 8‑pin and 16‑pin connectors

Specifications

Brandxenlazar
ModelNV40 Sleeved Cable Type B
TypeCable Connectors
ColorWhite
Length1" - 5"
Connector Number4
Connector DetailMB 24Pin/CPU 8Pin/VGA 8Pin/PCIE 16pin
Terminal GenderFemale to Male
Specifications16AWG
ConductorCopper Conductor
FeaturesCable Extension

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 90-degree 12VHPWR plug clear a side panel that sits close to the GPU?

The patented 90-degree L-angled 12VHPWR connector directs the cable parallel to the card, reducing the depth needed behind the GPU and helping avoid pin stress in tight cases.

Which connectors must be matched to the PSU side when routing the four extensions?

The kit includes female-to-male extensions for a 24-pin motherboard, an 8-pin CPU, an 8-pin VGA and a 16-pin 12VHPWR; each female end plugs into your existing PSU cables, so match pin counts exactly.

How often should the individually sleeved 16AWG copper conductors be inspected after installation?

Check the sleeving and connector seating after the first few thermal cycles, then visually inspect once a year for abrasion or loosened pins, especially at the 90-degree 12VHPWR bend.
