25 clear plastic RJ45 plugs with gold pins and black strain-relief boots

XANHAM NW029 Cat6 RJ45 Pass-Through Connectors 25 Pack

SKU CH-94ZK-C1DGG

Pack of 25 Cat6 pass-through RJ45 connectors with gold-plated contacts and strain-relief boots for solid or stranded 23-24 AWG cable up to 6.3 mm

  • TypeCat6 Unshielded, Male-to-Male
  • Changer TypeEthernet, Male-to-Male
  • ColorBlack
  • Cable Length1 inches
  • Wire GaugeEthernet
  • SpecificationsPass-through Type, Gold-plated Contact, Male-to-Male, 1000 m
  • Pass-through design lets you verify wire order before crimping for faster termination
  • Gold-plated 8P8C contacts increase contact area for stable Gigabit connections
  • Supports Cat 6, Cat5e and Cat5 cables with 23-24 AWG solid or stranded conductors
  • Includes 25 connectors and 25 strain-relief boots for cables up to 6.3 mm diameter
  • RoHS compliant components meet environmental substance restrictions

Product Identity

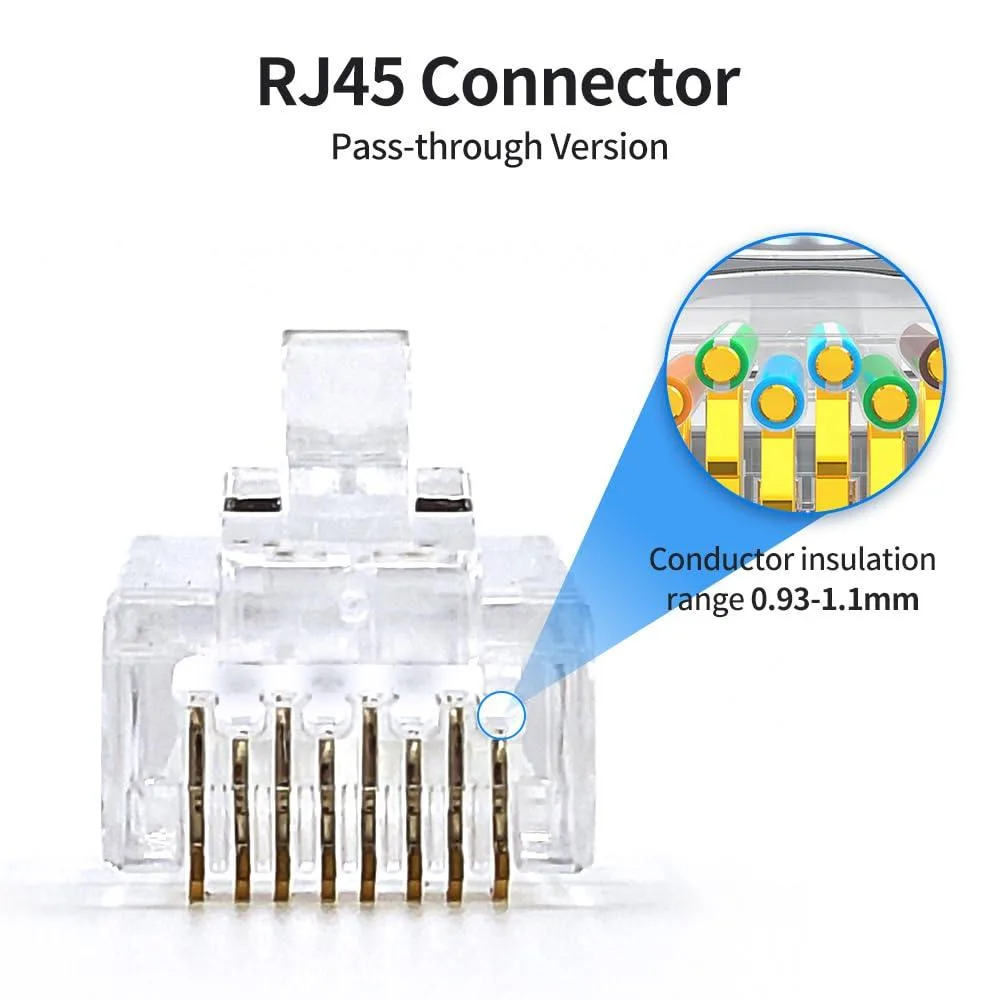

The XANHAM NW029 is a pack of twenty-five Cat6 unshielded RJ45 pass-through connectors designed for installers and DIY users who need to create custom-length Ethernet cables. Each connector accepts 23-24AWG solid or stranded wire with an insulated conductor diameter of 0.93 to 1.1mm and an overall cable diameter up to 6.3mm. The connectors are backward compatible with Cat5e and Cat5 cabling for Gigabit Ethernet or PoE applications.

Included Accessories

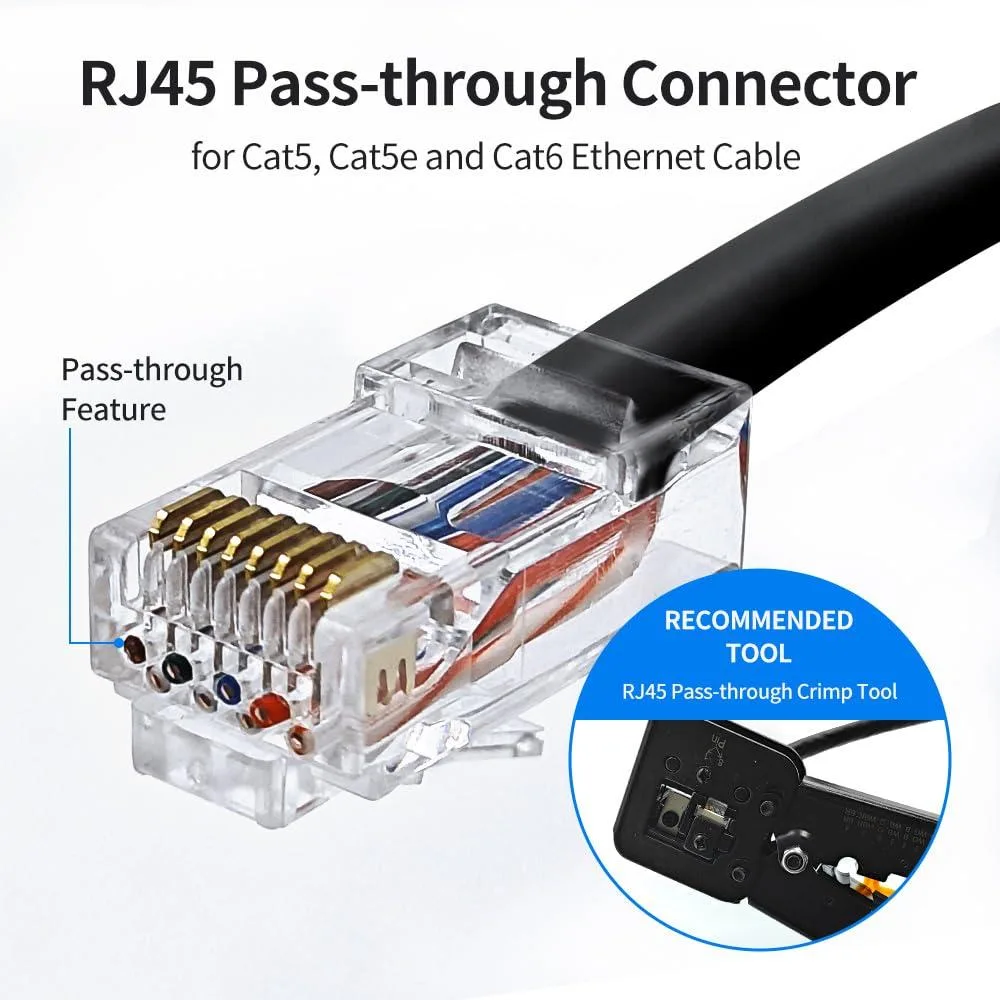

The package supplies twenty-five black strain-relief boots that slide over the cable before termination and support the same 6.3mm maximum outside diameter. These boots protect the crimp joint from bending stress and cable pull-out, while the pass-through design lets installers verify wire order through the clear housing before crimping, reducing rework on field terminations.

Deciding Specification

The pass-through design is the single feature that determines suitability: it allows conductors to be pushed completely through the connector for visual sequence verification before crimping, which speeds termination and lowers error rates on solid or stranded wire. Installers who prefer traditional closed-end connectors that require a separate wire-trimming step will find this style incompatible with their existing crimp tooling and workflow.

Highlights

  • Pass-through design lets you verify wire order before crimping for faster termination
  • Gold-plated 8P8C contacts increase contact area for stable Gigabit connections
  • Supports Cat 6, Cat5e and Cat5 cables with 23-24 AWG solid or stranded conductors
  • Includes 25 connectors and 25 strain-relief boots for cables up to 6.3 mm diameter
  • RoHS compliant components meet environmental substance restrictions

Specifications

BrandXANHAM
ModelNW029
Part NumberNW029
TypeCat6 Unshielded, Male-to-Male
Changer TypeEthernet, Male-to-Male
ColorBlack
Cable Length1 inches
Wire GaugeEthernet
SpecificationsPass-through Type, Gold-plated Contact, Male-to-Male, 1000 megabits_per_second, cat_6, Ethernet, Black, Modem, Network Switch, Laptop, NW029
FeaturesPass-through Type, Gold-plated Contact
Dimensions20'
Weight0.091 kilograms
Package Quantity25 Count
Package Contents25 x Small
DisclaimerRoHS, not_applicable

Questions about this item

Do the strain-relief boots need to be replaced after repeated crimping?

The 25 black boots supplied with the NW029 are single-use; once crimped onto a cable they stay in place and do not wear out in normal service.

What conductor size stops a solid 23 AWG wire from passing through the connector openings?

The pass-through holes accept insulated conductors from 0.93 mm to 1.1 mm, so a 23 AWG solid core at the upper end of that range will still feed through.

How warm do the gold-plated contacts get when carrying a 1000 Mbps PoE load continuously?

The connectors are passive components with no active circuitry, so they do not generate measurable heat during all-day Gigabit Ethernet or PoE operation.
