WUQ
WUQ 6x9 2-Way Component Speaker System 600W Peak 300W RMS 4 Ohm 96dB
A 6×9 two-way component set delivers 300 W RMS and 600 W peak through carbon-fibre cones, 1" silk dome tweeters and passive crossovers at 96 dB sensitivity
- TypeOther
- Crisp highs from 1" silk dome tweeters

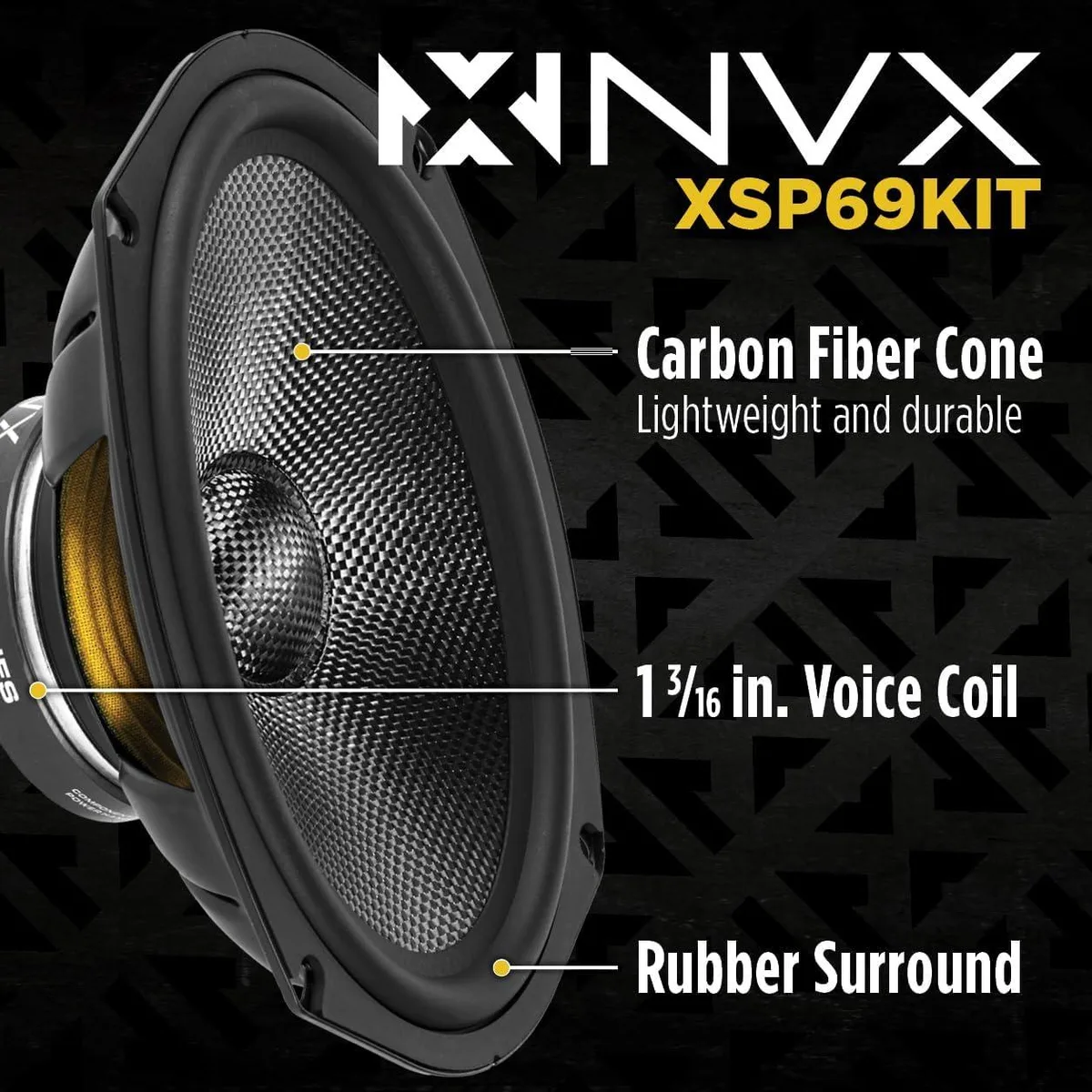

- Deep lows with carbon fibre cone and rubber surround
- 300 W RMS power handling for strong output
- 96 dB sensitivity delivers loud, clear sound
- 6" x 8.6" cutout fits standard 6x9 openings
6x9 2-Way Component System

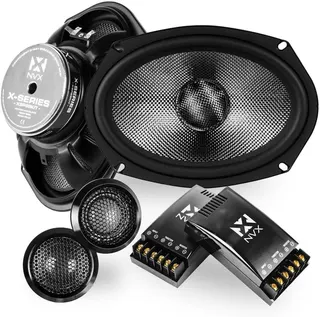

The WUQ XSP69KIT is a passive 6x9-inch two-way component speaker set designed for car and truck door installations. It includes 1-inch silk dome tweeters and passive crossovers for a complete front-stage upgrade. The 4-ohm impedance matches most aftermarket amplifiers and head units. Buyers who need a coaxial drop-in replacement or a three-way component set should look elsewhere.
300W RMS Continuous Output
The system handles 300 watts RMS per pair, so it delivers clean output during extended listening sessions without thermal compression. Carbon fibre cones with rubber surrounds maintain cone control at high excursion. Peak power reaches 600 watts for brief transients. Users who require more than 300 watts RMS for competition-level SPL will need larger drivers.
96dB Sensitivity and Shallow Mount
At 96 dB sensitivity the speakers play loudly on modest amplifier power, reducing current draw and heat. Top-mount depth is only 3 inches with cutout dimensions of 5.6 by 8.6 inches, fitting most factory door locations. The silk dome tweeters produce smooth highs without harshness. Installers who lack the cutout space or need lower impedance should choose a different model.
Highlights
- Crisp highs from 1" silk dome tweeters
- Deep lows with carbon fibre cone and rubber surround
- 300 W RMS power handling for strong output
- 96 dB sensitivity delivers loud, clear sound
- 6" x 8.6" cutout fits standard 6x9 openings
Specifications
| Type | Other |
|---|
Questions about this item
How much power does the 300 W RMS 6x9 component system draw from the amplifier during long listening sessions?
The speakers handle 300 W RMS continuously, so the amplifier must supply that power; the 4-ohm impedance and 96 dB sensitivity mean they play loudly with moderate amplifier output.
What amplifier connections and crossover wiring are required to run the silk dome tweeters and mid-bass drivers?
A stereo amplifier with 4-ohm stable channels and the included passive crossovers are needed; connect amp outputs to crossover inputs, then crossover tweeter and woofer leads to the 1" silk dome tweeters and 6x9 carbon-fiber mid-bass drivers.
Will the 5.6" x 8.6" cutout and 3" top-mount depth fit the factory door openings in an older vehicle?
The cutout measures 5.6 by 8.6 inches with a 3-inch mounting depth, matching standard 6x9 openings; verify your door panel clearance and adapter rings if the factory hole pattern differs.
