USB programmer board with 40-pin ZIF socket, 16-pin SOIC socket and 10-pin ISP header

Bazarc

Bazarc UPA USB Programmer V1.2 40pin ZIF 16pin SOIC 150mil 10pin ISP

SKU CH-0D1P-W3V73

A USB programmer with 40-pin ZIF, 16-pin SOIC and 10-pin ISP sockets for DIP, SOIC and in-circuit devices

  • TypePotentiometers, Trimmers & Rheostats
  • Config keys simplify safe device setup
  • 40-pin ZIF socket accepts narrow and wide DIP devices
  • 16-pin SOIC ZIF socket covers 150mil packages
  • 10-pin ISP connector supports included PLCC adapters
  • Direct connection to UUSP or optional DB9 extension

USB Programmer V1.2 for DIP and SOIC devices

The Bazarc UPA USB Programmer V1.2 provides a 40-pin ZIF socket for narrow and wide DIP devices plus a 16-pin SOIC ZIF socket at 150 mil pitch. It targets engineers and hobbyists who program through-hole and surface-mount packages directly on the bench. Buyers needing to program devices without ZIF-compatible footprints will require additional adapters.

Thermals noise and power draw

The unit draws power from the USB connection to the host UUSP programmer and includes a jumper to enable or disable target power on the 10-pin ISP header. No active cooling is present, so thermal output remains negligible during normal programming sessions. Acoustic noise is limited to the mechanical actuation of the ZIF levers.

Bundled adapters and ISP cable

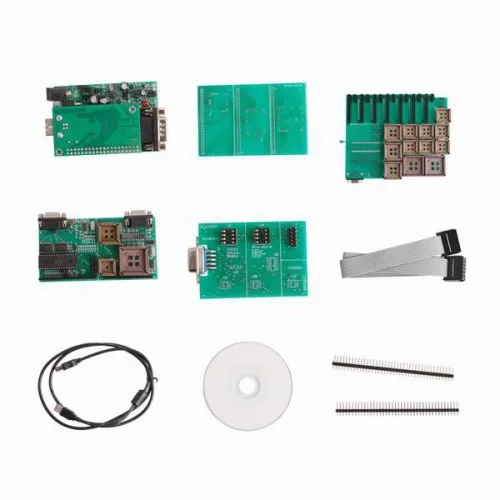

A standard 10-pin flat-ribbon cable and PLCC ISP adapters are supplied for in-circuit programming without soldering or clips. The 40-pin ZIF socket also accepts commonly available third-party adapters to extend package coverage. Configuration relies on dedicated config keys rather than manual wiring, reducing setup errors.

Highlights

  • Config keys simplify safe device setup
  • 40-pin ZIF socket accepts narrow and wide DIP devices
  • 16-pin SOIC ZIF socket covers 150mil packages
  • 10-pin ISP connector supports included PLCC adapters
  • Direct connection to UUSP or optional DB9 extension

Specifications

TypePotentiometers, Trimmers & Rheostats

Questions about this item

How do I install the Bazarc UPA USB Programmer V1.2 and what step do people often miss?

Connect the main device to the Elrasoft.com UUSP directly or with a DB9 male/female 1:1 extension cable, then ensure the jumper next to the 10 pin ISP connector is set correctly for target power.

What maintenance or replacement will the Bazarc UPA USB Programmer V1.2 need later?

The 40 pin ZIF socket and 16 pin SOIC ZIF 150mil socket contacts may wear after repeated insertions; keep them clean and replace sockets if pin grip weakens.

What limit appears first on the Bazarc UPA USB Programmer V1.2 during sustained use?

Continuous operation is limited by the USB-powered supply through the UUSP; the jumper-controlled ISP target power draw must stay within the host port current capability.
