Handheld oscilloscope tablet with seven inch touchscreen and high voltage probe

WUQ

WUQ 1013D Plus electrical system tool

SKU CH-YHG6-H61A6

A portable two-channel oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling, 7-inch touchscreen, 100× high-voltage probe, 400 V protection and 4-hour battery life

  • TypeOscilloscope
  • 100 MHz bandwidth captures fast signals
  • 1 GSa/s real-time sampling shows detail
  • 7 inch 800×480 touch screen aids operation
  • 6000 mAh battery gives 4 hours use
  • 1 GB storage holds 1000 waveforms and screenshots

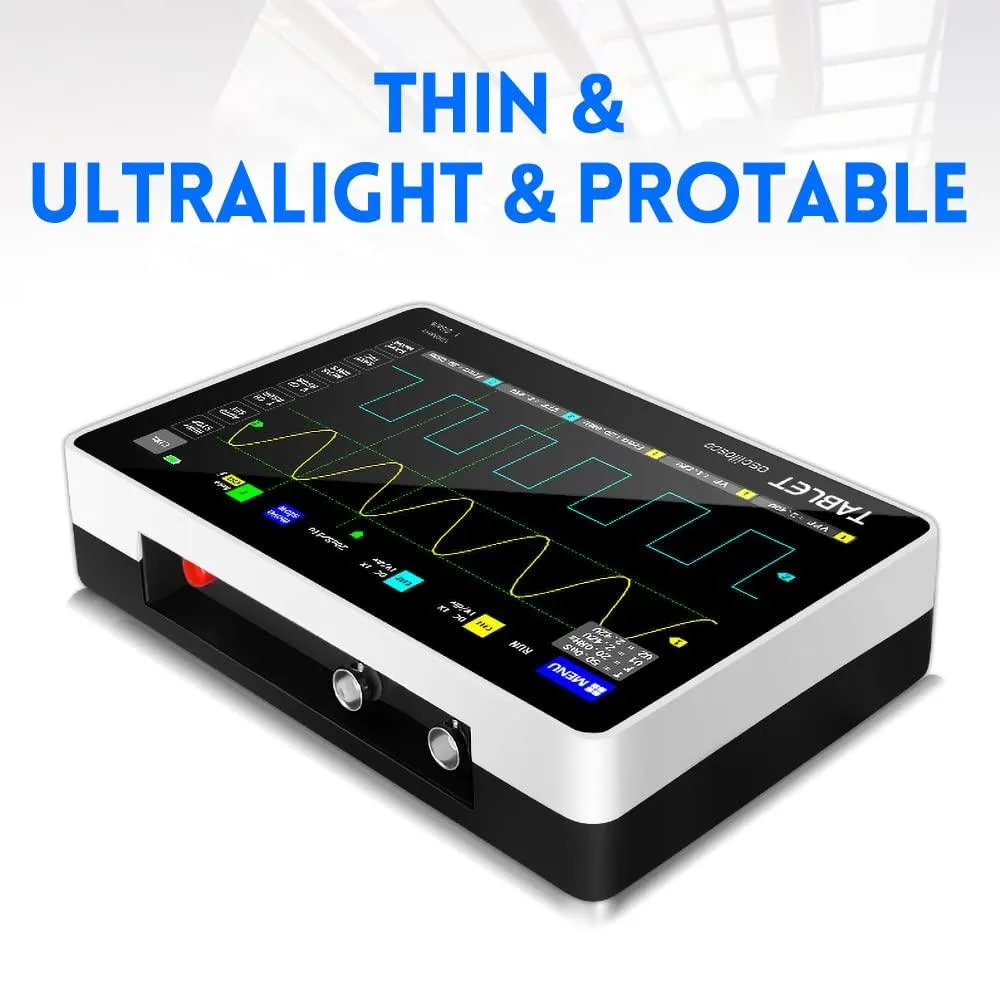

Portable Tablet Oscilloscope

The WUQ 1013D Plus is a handheld oscilloscope built for automotive electrical diagnostics and field service work. Its 7-inch capacitive touchscreen and 6000mAh battery allow four hours of continuous use away from a bench supply.

Setup and Common Issues

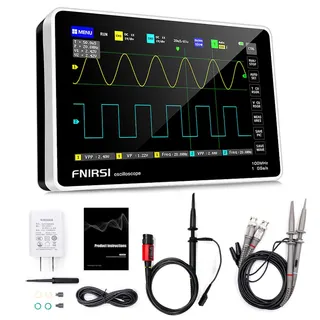

The kit ships with two matched 100MHz probes, a 100X high-voltage probe, a USB Type-C cable and a charger so it is ready to operate immediately. The 400V built-in protection module guards the front end, but the 100MHz bandwidth ceiling means faster transients will be attenuated or missed entirely.

100MHz Bandwidth Decides Fit

A 100MHz analog bandwidth and 1GSa/s real-time sampling rate set the measurement ceiling for this instrument. Signals with significant harmonic content above 100MHz cannot be captured accurately, so engineers working on high-speed serial buses or wide-bandwidth switching circuits need a wider-bandwidth scope.

Highlights

  • 100 MHz bandwidth captures fast signals
  • 1 GSa/s real-time sampling shows detail
  • 7 inch 800×480 touch screen aids operation
  • 6000 mAh battery gives 4 hours use
  • 1 GB storage holds 1000 waveforms and screenshots

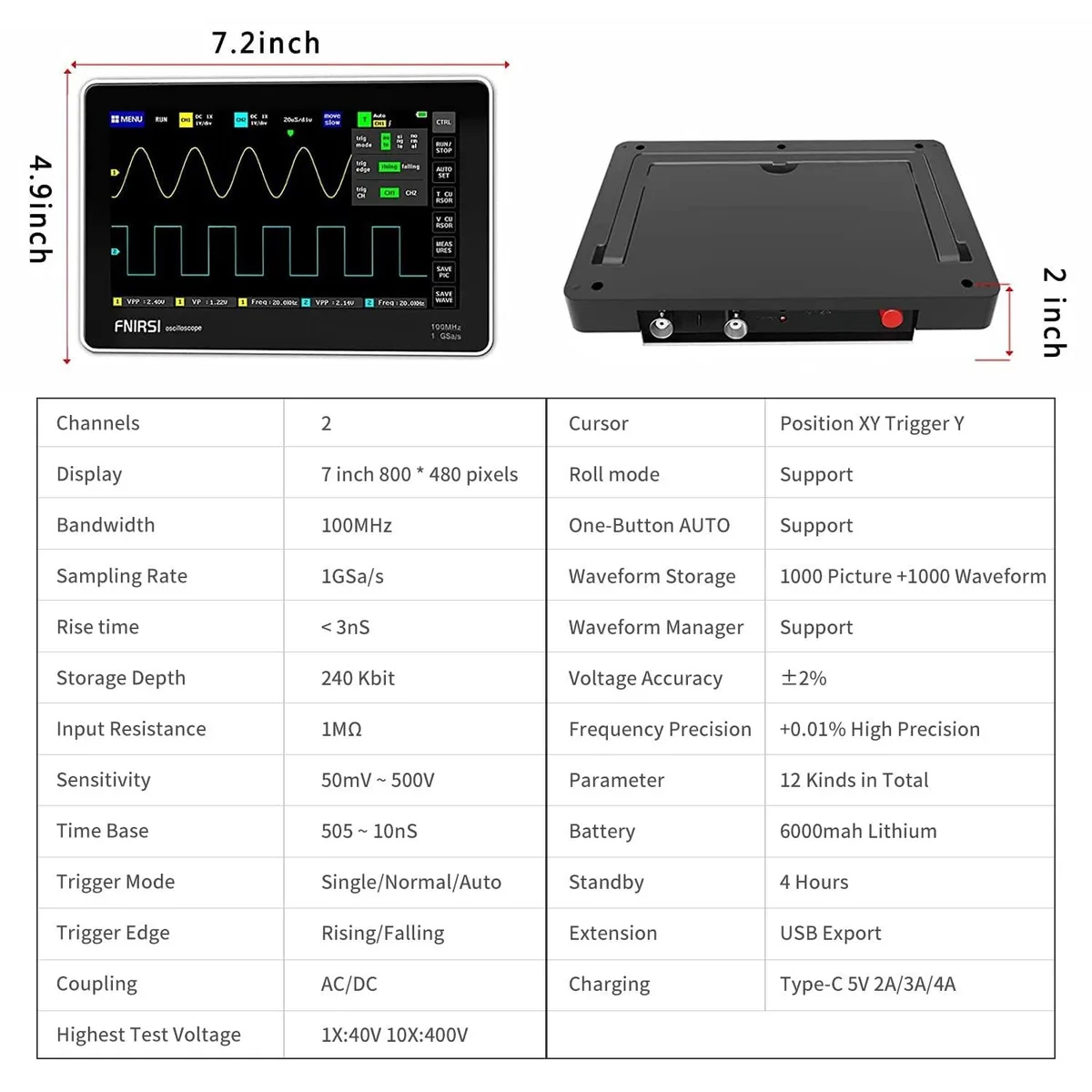

Specifications

TypeOscilloscope

Questions about this item

How can I verify the 1013D Plus is sampling at the stated 1GSa/s after setup?

Capture a known fast edge or square wave and check that the displayed rise time matches the 100MHz bandwidth specification.

Which probes and accessories are included versus sold separately?

The box contains two matched 100MHz probes, one P4100 100X high-voltage probe, a USB Type-C data cable, charger, English manual and the oscilloscope itself.

Which bandwidth and sampling combination suits general-purpose troubleshooting?

The single listed version provides 100MHz analog bandwidth with 1GSa/s real-time sampling, covering most automotive and bench signals.
