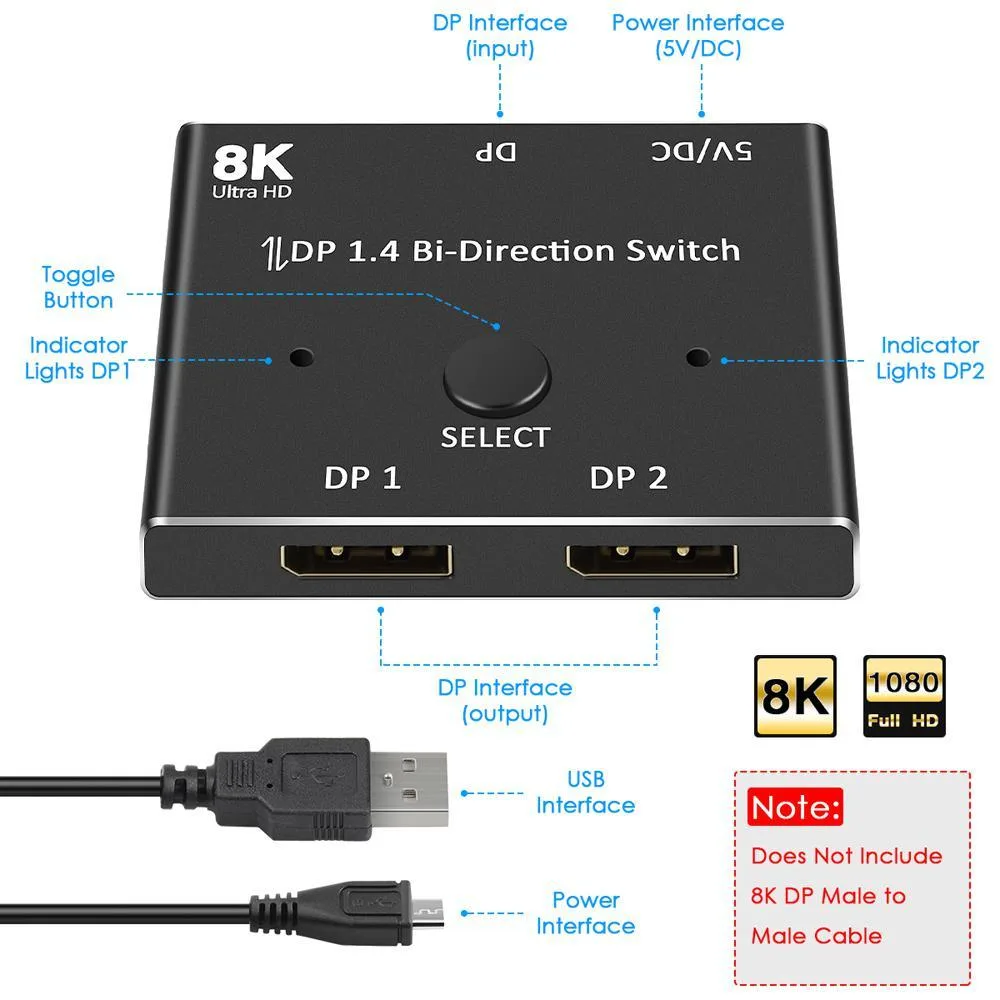

Black rectangular DisplayPort switch box with button and indicator lights

WRIARICH

WRIARICH TJ-A009 DP 1.4 Bi-Directional Video Switch

SKU CH-7XZD-TFW2N

A bi-directional DisplayPort 1.4 switch toggles between two sources on one display or one source across two displays at up to 8K 60 Hz

  • TypeDisplayPort Switchers
  • Changer TypeDisplayPort Switch/Extender
  • ColorBlack
  • Ports2
  • SpecificationsVersion: DP 1.4 Bandwidth: 32.4gbps Refresh rate: 8K / 60Hz
  • Input Connector1 x DisplayPort 1.4

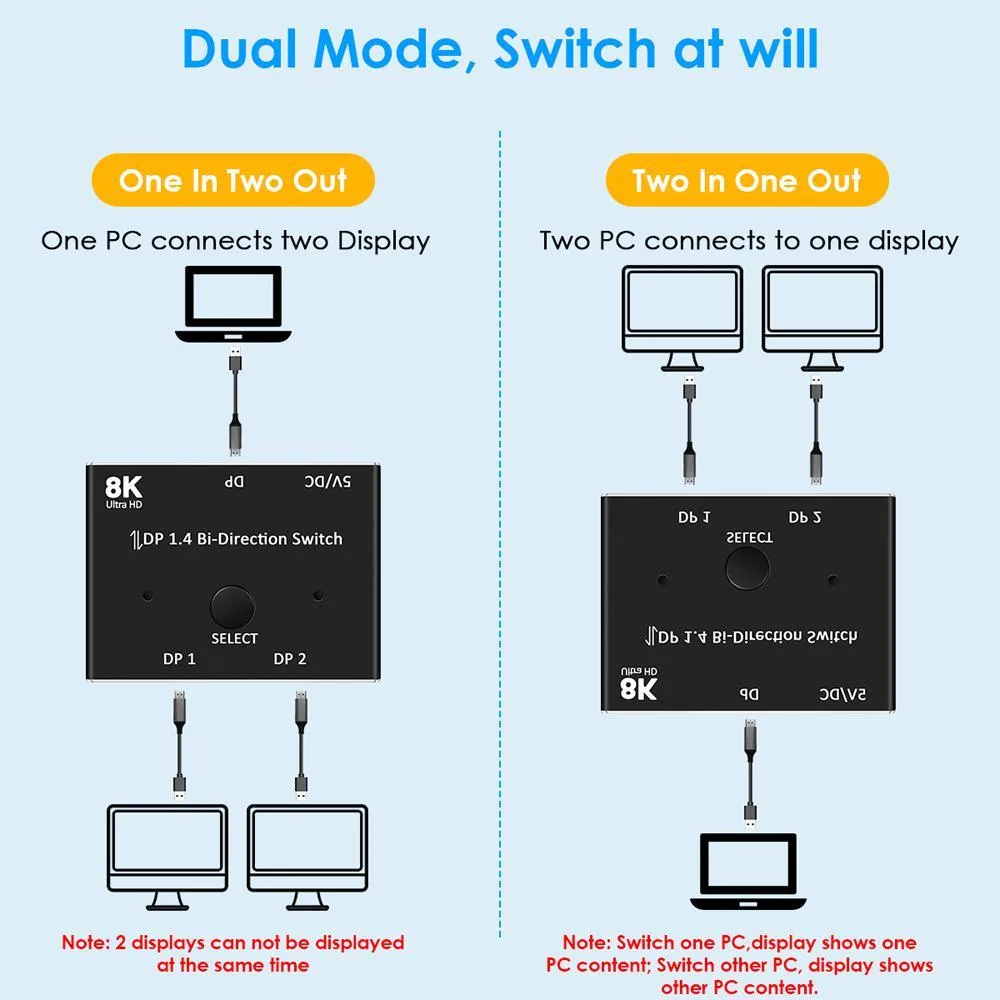

  • Bi-directional design connects two sources to one display or one source to two displays
  • 8K at 60 Hz plus 4K at 120 Hz for high-resolution gaming and creative work
  • 4 Gbps bandwidth with 10-bit colour and HDR for rich image quality
  • Front-panel button swaps the active signal in under a second with LED status
  • External 5 V power ensures stable operation across all supported modes

Bi-Directional DP 1.4 Switch

This WRIARICH TJ-A009 switch routes a single DisplayPort 1.4 source to one of two displays or selects between two sources for one display. It handles 8K at 60 Hz, 4K at 120 Hz and 1080p at 240 Hz with 32.4 Gbps bandwidth and 10-bit colour depth. External power is required and a button press swaps the active signal in about one second.

Replaces Manual Cable Swapping

The unit removes the need to physically unplug and reconnect DisplayPort cables when moving a GPU between a monitor and a projector or when sharing one screen between two computers. The upgrade is worth it when you change inputs daily and want instant switching with LED status indication. It does not serve users who need both outputs active at the same time.

Check Source and Cable Compatibility

Verify that each source and display has a native DisplayPort 1.4 port and that you have certified DP 1.4 cables rated for 32.4 Gbps to reach the advertised resolutions. The switch needs a free USB or wall outlet for the included 5 V power adapter. Buyers who require simultaneous dual-monitor output or who lack a spare power socket should look elsewhere.

Highlights

  • Bi-directional design connects two sources to one display or one source to two displays
  • 8K at 60 Hz plus 4K at 120 Hz for high-resolution gaming and creative work
  • 4 Gbps bandwidth with 10-bit colour and HDR for rich image quality
  • Front-panel button swaps the active signal in under a second with LED status
  • External 5 V power ensures stable operation across all supported modes

Specifications

BrandWRIARICH
SeriesTJ-A009
ModelTJ-A009
Part NumberTJ-A009
TypeDisplayPort Switchers
Changer TypeDisplayPort Switch/Extender
ColorBlack
Ports2
SpecificationsVersion: DP 1.4
Bandwidth: 32.4gbps
Refresh rate: 8K / 60Hz 4K / 120Hz / 144hz 2K / 144hz / 165hz
Sound effect transmission: 32-bit / 24bit / 1536kh
High dynamic HDR: Yes
Color depth: 10bit
Multi screen display: Yes
Aux auxiliary channel: 720mb
Input Connector1 x DisplayPort 1.4
Output Connector2 x DisplayPort 1.4
Maximum Resolutions8K@60Hz 4K@120Hz
BandwidthHigh Speed 32.4Gbps
FeaturesHigh Resolution: DP display port switch splitter box supports 8K@60HZ, 4K@120Hz, 1080P@240Hz, 3D resolution and HD audio, the DP switcher will brings you a luxurious and wonderful audio-visual experience.
Plug and Play: External power required, the DP switch box is easy to setup and operate. Note: While using, press"select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
High Speed: This DP splitter provides bandwidth data transmission up to 32.4Gbps.
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1 x DisplayPort 2 in 1 Out/1 in 2 Out Bidirectional Switcher Splitter Box
1 x DC 5v Power cable

Questions about this item

What space is required for the 12 x 6 x 0.08 inch switch?

The unit measures 12 inches wide, 6 inches deep and 0.08 inches high, so allow at least that footprint on a desk or shelf with clearance for the three DisplayPort cables and the DC 5 V power lead.

Which step do users often miss when setting up the bi-directional DP 1.4 switch?

Connect the supplied DC 5 V power cable first; the switch will not pass 32.4 Gbps video signals without external power, then press the button to select the active port.

What will need replacement first on the TJ-A009 switch?

The DC 5 V power cable is the only external consumable; the switch itself has no moving parts or user-serviceable components, so only the cable or the DP 1.4 leads would ever require swapping.
