WRIARICH SDI2HDMI SDI to HDMI Media Converter with Audio Embedder
Converts SDI signals to HDMI with audio embedding, auto-detecting SD, HD and 3G-SDI formats up to 1080p at 60 Hz and providing an SDI loop output
- FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
- Resolution Support1080P
- ColorBlack
- VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
- HDMI1 In
- SDI2 Out
- Converts SD, HD and 3G-SDI to HDMI with auto detection
- Loop-through SDI output extends cable runs up to 300 ft at 2.97 Gbps
- Embeds eight channels of 48 kHz digital audio into the HDMI signal
- USB 5 V power adapter included for portable broadcast setups
- Compact 5.83 × 4.49 × 2.44 in enclosure weighs 7.8 oz
SDI-to-HDMI converter for broadcast signals
The WRIARICH SDI2HDMI accepts SD-SDI, HD-SDI and 3G-SDI sources over a single BNC input and produces an HDMI output plus an SDI loop-out. Auto format detection handles 480i, 567i, 720p and 1080i or 1080p signals at 24, 25, 30, 50, 59.94 and 60 Hz frame rates. The unit supports cable runs up to 1000 ft for SD-SDI, 500 ft for HD-SDI and 300 ft for 3G-SDI. It is not bi-directional and cannot convert HDMI back to SDI.
Power adapter and manual included
A USB 5 V 1 A power adapter ships in the box so the converter can run from any USB port or wall charger without a separate supply. The printed user manual provides connection diagrams and basic troubleshooting steps for first-time installers. No additional cables, mounting brackets or software licences are bundled with the device.
Check signal type and cable length before ordering
Verify that your source outputs SD, HD or 3G-SDI over BNC and that the required run stays within the 300 ft, 500 ft or 1000 ft limits for the chosen standard. The converter needs a free USB power source and an HDMI display or recorder capable of 720p or 1080p input. It will not work for HDMI-to-SDI conversion or for formats beyond 1080p.
Highlights
- Converts SD, HD and 3G-SDI to HDMI with auto detection
- Loop-through SDI output extends cable runs up to 300 ft at 2.97 Gbps
- Embeds eight channels of 48 kHz digital audio into the HDMI signal
- USB 5 V power adapter included for portable broadcast setups
- Compact 5.83 × 4.49 × 2.44 in enclosure weighs 7.8 oz
Specifications
| Brand | WRIARICH |
|---|---|
| Series | SDI2HDMI |
| Model | SDI2HDMI |
| Format | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| Resolution Support | 1080P |
| Color | Black |
| Video | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |
| HDMI | 1 In |
| SDI | 2 Out |
| LED Indicator | Yes |
| Display | SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz. HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz. |

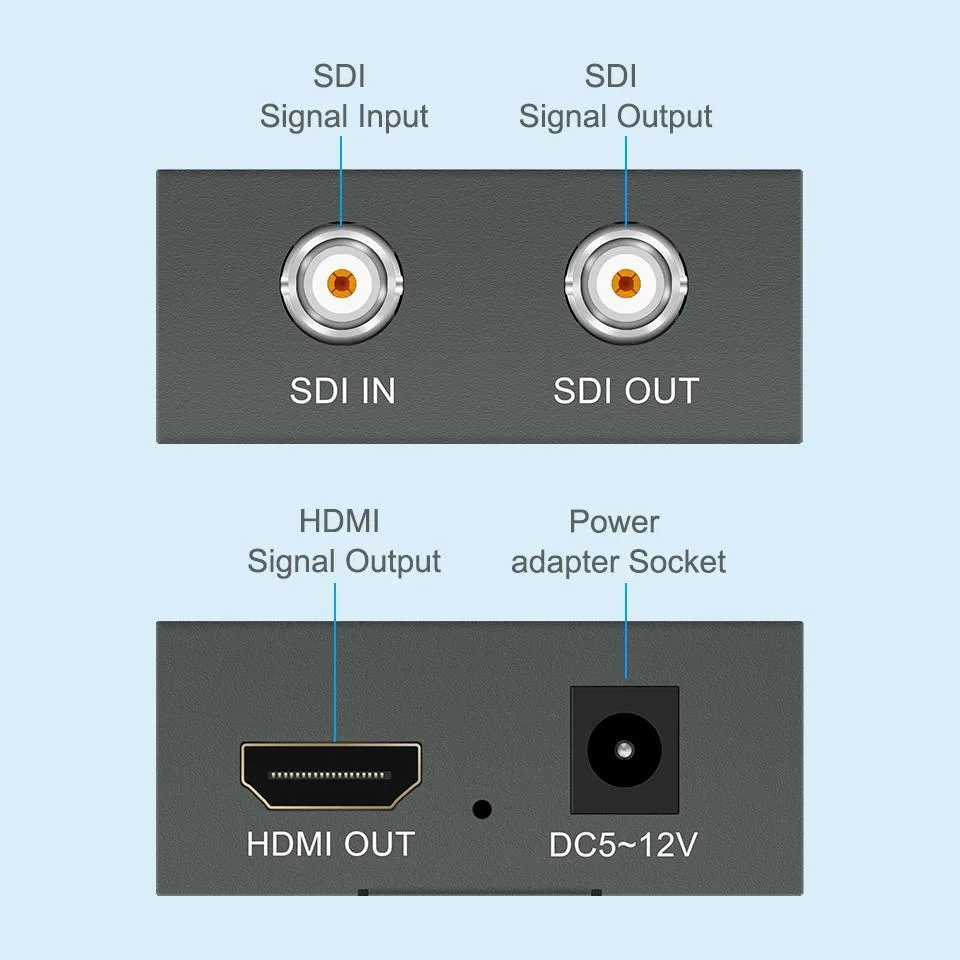

| Specification | - Product Type: SDI to HDMI Converter - Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI) - Output Port: 1 x HDMI Port, 1 x SDI Output (BNC) - Power Supply: USB DC 5V/1A |
| Feature | - SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps - SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz - HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz - Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C - One way SDI output, with the Re-clock function, can support multiple cascaded |
| Dimensions | 5.83 x 4.49 x 2.44 inches |
| Weight | 7.8 ounces |
| Package Content | 1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual. |
Questions about this item
Does the USB 5 V power adapter need periodic replacement under continuous operation?
The converter draws power from the included USB DC 5 V/1 A adapter; no internal battery or user-serviceable power component is present, so the external supply is the only part that may require replacement over time.
What is the maximum SDI cable length before signal loss at 3G-SDI rates?
At 2.97 Gbps 3G-SDI the input supports runs up to 300 ft and the loop-through output up to 300 ft; longer runs are rated for HD-SDI at 500 ft and SD-SDI at 1000 ft.
How much heat does the unit generate when converting 1080p60 all day?
The compact aluminium enclosure (5.83 x 4.49 x 2.44 in, 7.8 oz) is passively cooled with no fan; typical operation at full 3G-SDI throughput remains warm but within normal limits for continuous use.
