Black compact SDI to HDMI converter with BNC ports and LED indicator

WRIARICH

WRIARICH SDI2HDMI 3G-SDI HD-SDI SD-SDI Loopout media converter

SKU CH-M7HK-FQJQA

Converts SD, HD and 3G-SDI signals to HDMI with automatic format detection and an SDI loop output for monitoring

  • FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • Resolution Support1080P
  • ColorBlack
  • VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 10
  • HDMI1 In
  • SDI2 Out
  • Converts SDI to HDMI with auto detection of 3G, HD and SD signals
  • SDI loop output lets you extend the signal up to 300 ft for 3G-SDI
  • Supports 1080p at 24, 25, 30, 50 and 60 Hz frame rates
  • Handles SDI data rates of 270 Mbps, 1.485 Gbps and 2.97 Gbps
  • Compact unit measures 5.83 x 4.49 x 2.44 inches and weighs 7.8 ounces

SDI to HDMI converter for broadcast workflows

The WRIARICH SDI2HDMI converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI with automatic format detection. It accepts SDI input resolutions from 480i and 567i up to 1080p at 24, 25, 30, 50 and 60 Hz. A BNC loop output passes the original SDI signal onward for monitoring or recording chains.

Replaces separate scan converters

This single unit handles SD, HD and 3G data rates of 270 Mbps, 1.485 Gbps and 2.97 Gbps without manual switching. It supersedes older boxes that only supported one SDI standard or required external power bricks. The upgrade is worth it when you need simultaneous HDMI monitoring and SDI loop-through on long cable runs up to 300 ft for 3G-SDI.

Check power and cable requirements before ordering

The converter draws 5 V at 1 A via USB so a compatible supply or powered port is essential. Verify that your source equipment outputs one of the listed SDI formats and frame rates. Ensure BNC cables are rated for the intended distance: 300 ft for 3G-SDI, 500 ft for HD-SDI or 1000 ft for SD-SDI.

Highlights

  • Converts SDI to HDMI with auto detection of 3G, HD and SD signals
  • SDI loop output lets you extend the signal up to 300 ft for 3G-SDI
  • Supports 1080p at 24, 25, 30, 50 and 60 Hz frame rates
  • Handles SDI data rates of 270 Mbps, 1.485 Gbps and 2.97 Gbps
  • Compact unit measures 5.83 x 4.49 x 2.44 inches and weighs 7.8 ounces

Specifications

BrandWRIARICH
SeriesSDI2HDMI
ModelSDI2HDMI
FormatSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Resolution Support1080P
ColorBlack
VideoSDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
HDMI1 In
SDI2 Out
LED IndicatorYes
DisplaySDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz.
HDMI Output Resolution: Support Auto detection of SD, HD, 3G SDI signal, HDMI Output format support 720P/@50Hz,720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz.
Specification- Product Type: SDI to HDMI Converter

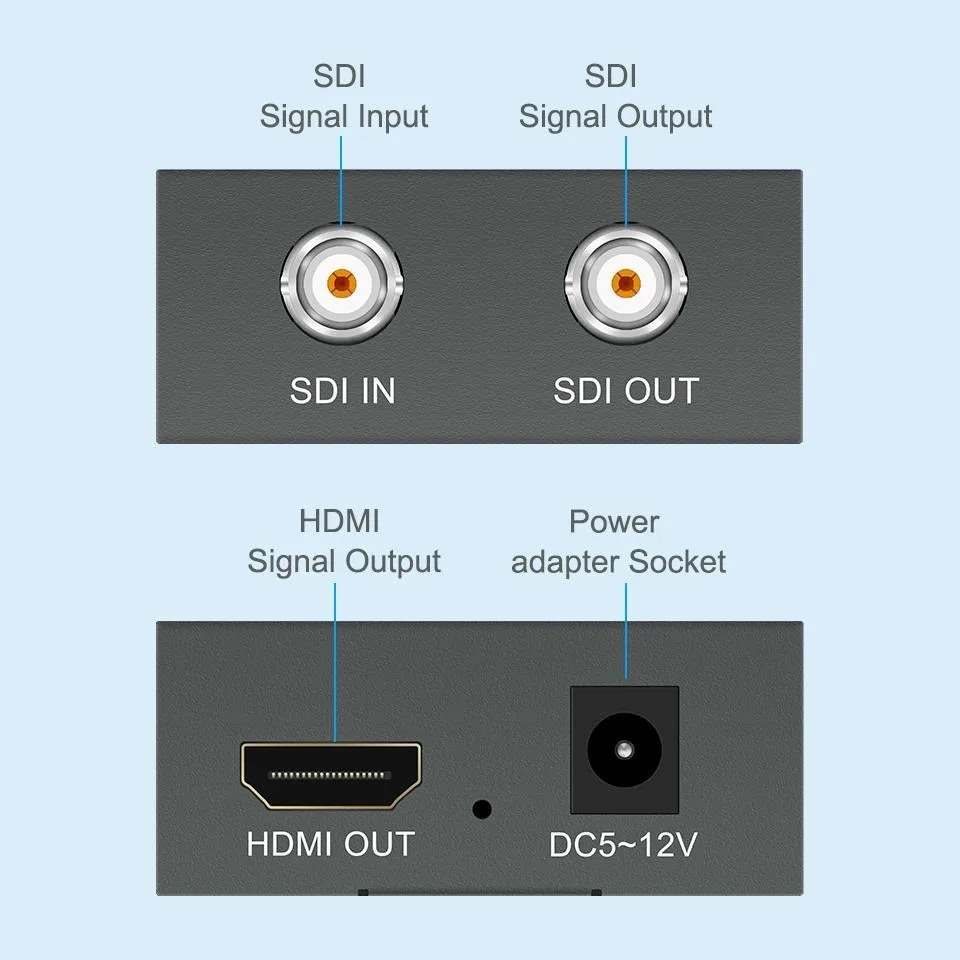

- Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
- Output Port: 1 x HDMI Port, 1 x SDI Output (BNC)
- Power Supply: USB DC 5V/1A
Feature- SDI data rates: 270Mb/s,1.485 Gbps,2.97Gbps
- SDI input resolutions: 480i/567i, 720P/@30Hz/@50Hz/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz, 1080P/@24Hz/@25Hz/@30Hz
- HDMI Output resolutions: 720P/@50Hz, 720P/@60Hz,1080p/@24Hz/@25Hz/@30Hz/@50Hz/@60Hz
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- One way SDI output, with the Re-clock function, can support multiple cascaded
Dimensions5.83 x 4.49 x 2.44 inches
Weight7.8 ounces
Package Content1 x SDI to HDMI Converter, 1 x Power Adapter, 1 x User Manual.

Questions about this item

What power connection does the WRIARICH SDI2HDMI converter require?

It draws 5 V at 1 A through a USB power adapter, so a standard USB port or wall charger with that rating will run the unit.

Which step is most often missed when hooking up the SDI loop-out?

Connect the source to the BNC input first, then run a second BNC cable from the loop-out to the next device; skipping the loop-out cable leaves the downstream monitor without signal.

How long can the SDI cables be before the signal degrades?

The input accepts up to 300 ft for 3G-SDI, 500 ft for HD-SDI and 1000 ft for SD-SDI; the loop-out holds up to 300 ft at the same data rates.
