Green PCB expansion card with six blue USB-A and two blue USB-C ports, three black power modules, silver bracket

WRIARICH

WRIARICH PCIe USB 3.2 8-Port Card 6 USB-A 2 USB-C 3 Power Modules

SKU CH-KGFQ-Z0GTJ

Adds six USB-A and two USB-C ports over a PCIe slot with three independent power modules for stable 10 Gbps operation

  • Specificationspci, 2.6 L x 13.1 W x 15.6 H centimeters, 0.11 kilograms, 12
  • Connector A30
  • Connector StyleStandard
  • Package Contents6 USB + 2 Type C, 1, false
  • Eight ports add six USB-A and two USB-C connections
  • NEC 720210 and 720201 chips deliver 10 Gb/s theoretical speed

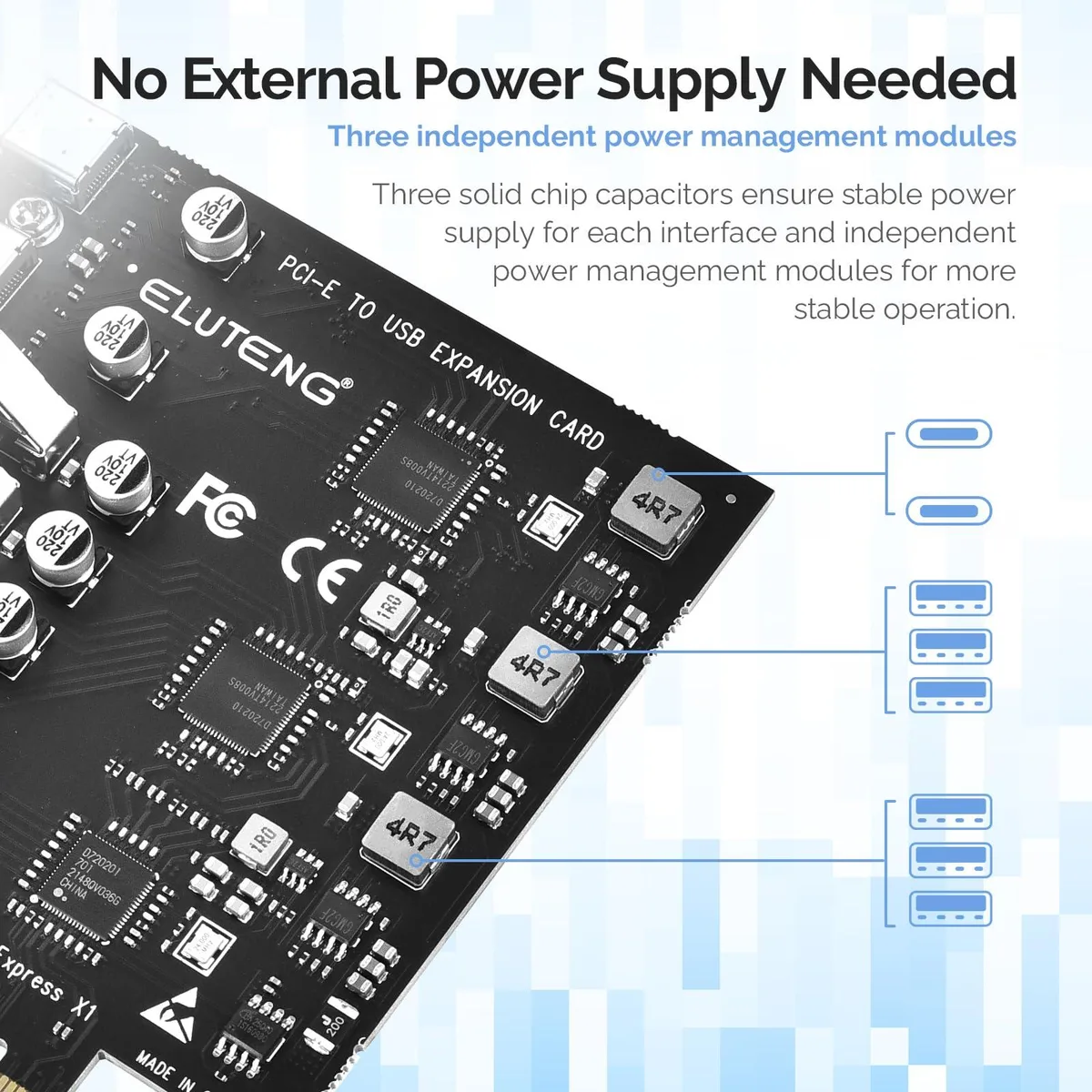

  • Three independent power modules keep each port stable
  • Solid-state capacitors rated for 250 °C ensure reliable power
  • Over-current protection cuts power instantly and auto-recovers

Eight-port USB 3.2 expansion

This PCIe add-in card provides six USB-A and two USB-C ports for desktop users who need more high-speed connections than their motherboard supplies. It is suited to enthusiasts attaching multiple external drives, cameras or peripherals at once. Builders who require internal headers or legacy ports will not find them here.

Capacity and headroom

The controller combination NEC720210 plus NEC720201 delivers a theoretical 10 Gbps per port under the USB 3.2 Gen 2 specification. Each port includes independent solid-state capacitors rated to 250 degrees Celsius, so simultaneous heavy transfers across all eight ports remain stable without an external power brick. Sustained throughput will fall below the peak when every port is saturated.

PCIe lane and power limits

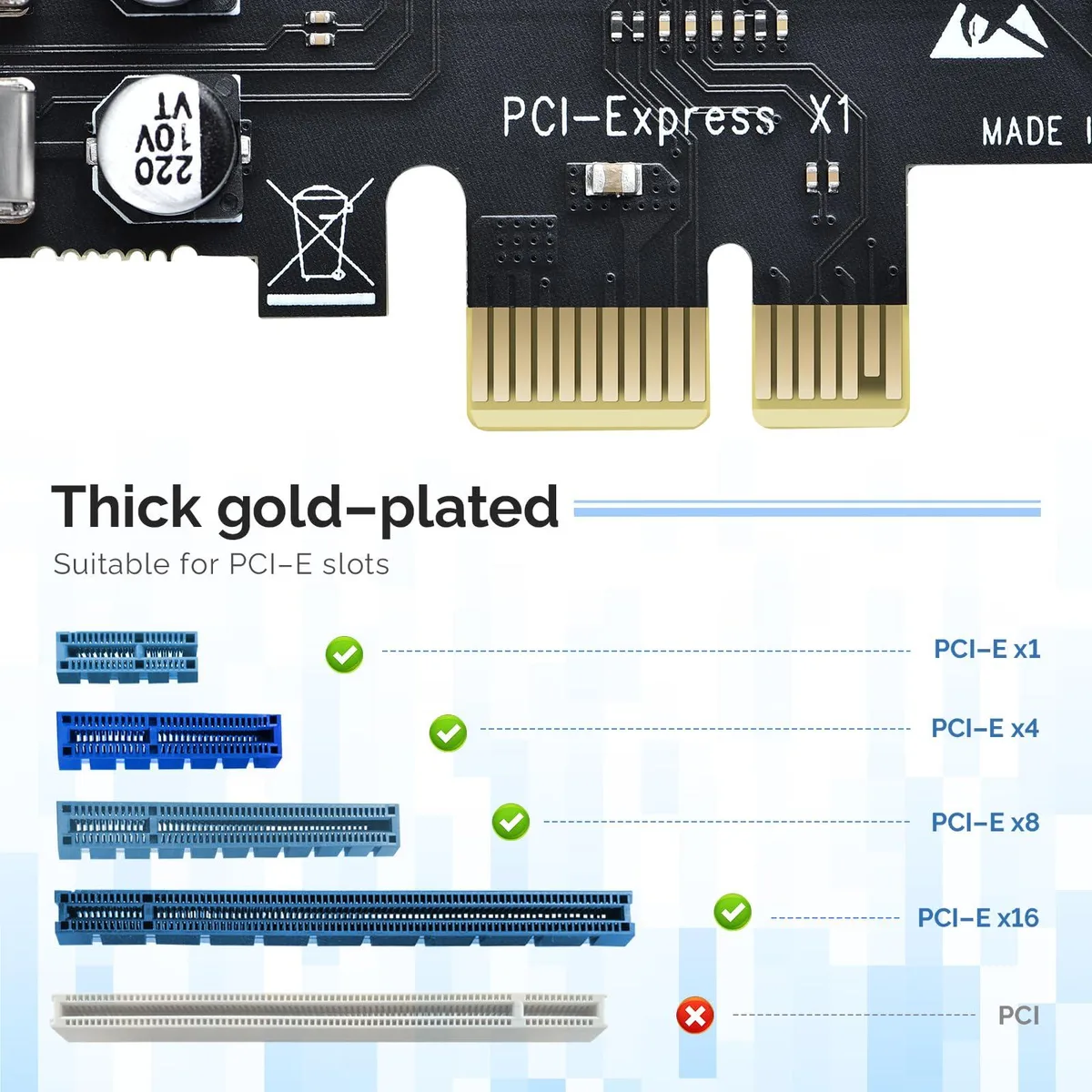

The card plugs into a standard PCI Express slot and draws all required power from the bus, so no auxiliary connector is needed. Bandwidth is ultimately constrained by the slot generation and lane count available on the host platform. Systems limited to PCIe 2.0 or a single lane will not reach the 10 Gbps ceiling.

Highlights

  • Eight ports add six USB-A and two USB-C connections
  • NEC 720210 and 720201 chips deliver 10 Gb/s theoretical speed
  • Three independent power modules keep each port stable
  • Solid-state capacitors rated for 250 °C ensure reliable power
  • Over-current protection cuts power instantly and auto-recovers

Specifications

BrandDell
SeriesELUTENG PCIE USB Card
Specificationspci, 2.6 L x 13.1 W x 15.6 H centimeters, 0.11 kilograms, 12 Months, ELUTENG PCIE USB Card, 43201400
Connector A30
Connector StyleStandard
Package Contents6 USB + 2 Type C, 1, false

Questions about this item

Will this PCIe USB 3.2 card work in my older motherboard that only has PCIe 2.0 slots?

The card uses a standard PCIe interface and is backward compatible with PCIe 2.0 slots, though each port will be limited to the slot's maximum bandwidth of 5 Gbps instead of the card's 10 Gbps capability.

How can I verify that all eight ports are delivering the full 10 Gbps speed after installation?

Connect a USB 3.2 Gen 2 device to each port and run a benchmark tool such as CrystalDiskMark; each port should show sequential read and write speeds approaching 10 Gbps if the NEC720210 and NEC720201 controllers are operating correctly.

Does the box include the three independent power modules mentioned in the title, or must I buy them separately?

The package contents list only the expansion card with 6 USB-A and 2 USB-C ports; the three independent power modules are not included and must be purchased separately if required.
