WRIARICH
WRIARICH PAP-001 USB 3.0 HDMI capture card 1080p 60fps
Captures 4K HDMI input at 30 fps and outputs 1080p 60 fps over USB 3.0 or USB-C for streaming, recording and conferencing on Windows, Android, macOS or Linux
- Housing ColorGrey-A/C
- SpecificationDevice with USB 3.0 interface and one of the following opera
- OthersVideo Recording, 1080p, YUV2/MJPEG, Windows, Linux, Mac Os,
- TypeExternal TV Tuner Box
- Resolution Support1080P
- FormatYUV2/MJPEG
- Low-latency streaming with USB 3.0 up to 1080p 60fps output

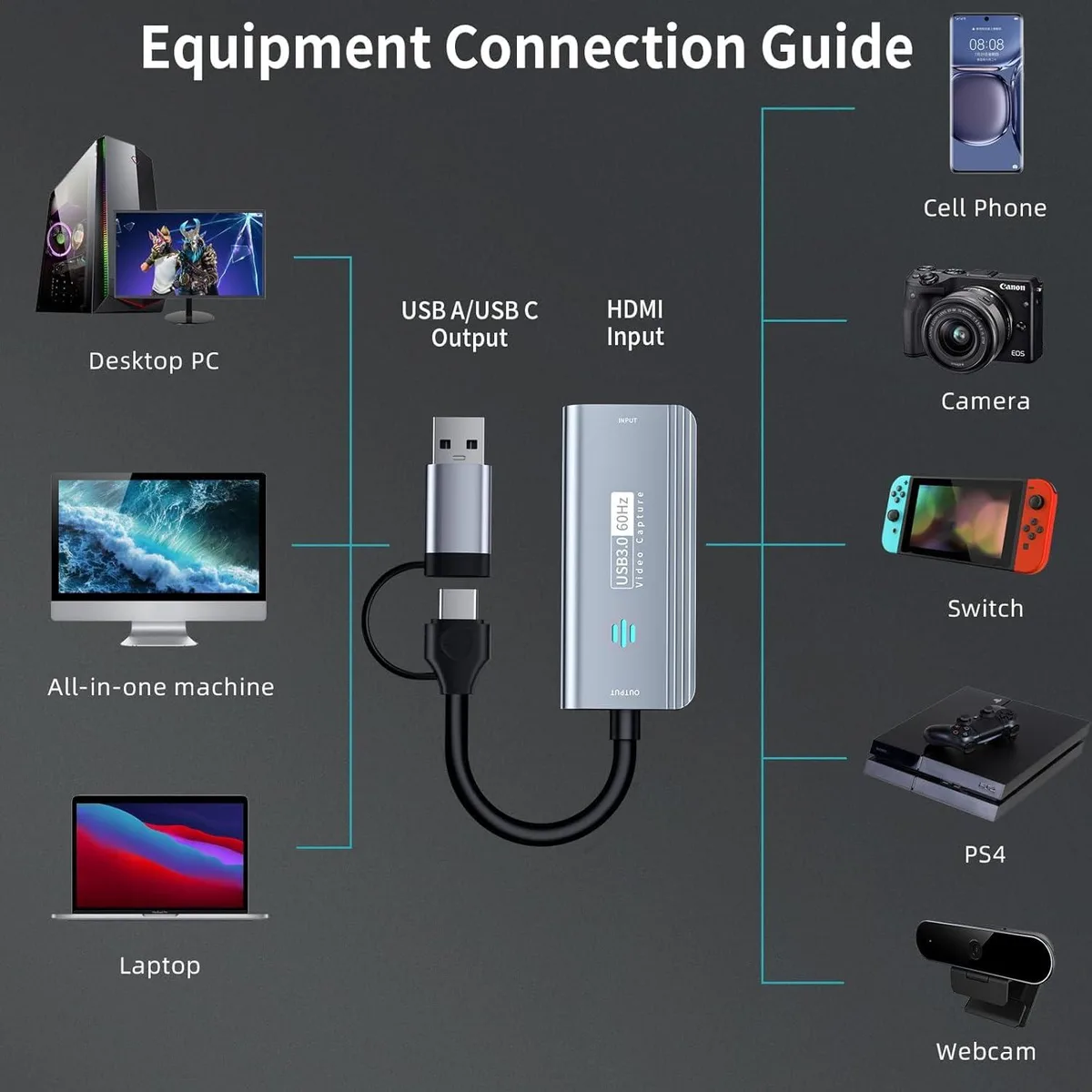

- Dual USB-A and USB-C connectors fit laptops, tablets and phones
- Real-time preview via OBS, VLC or Amcap with no added delay
- Works with Windows, Android, macOS and Linux driver-free on Mac
- Compact 53×25×9 mm aluminium body draws only 0.2 A at 5 V
USB 3.0 HDMI capture for streaming
The WRIARICH PAP-001 captures HDMI sources at up to 1080p 60 fps through a USB 3.0 connection. It suits creators, educators and gamers who need to record or broadcast gameplay, camera feeds or presentations on Windows, Android, macOS or Linux.
Check USB port and software needs
Your computer must provide a USB 3.0 port for YUV2 uncompressed capture; hubs may reduce compatibility. On macOS use QuickTime Player, while Windows users typically rely on OBS, VLC or Amcap. The device accepts HDMI input up to 3840×2160 at 30 Hz.
Low power draw and quiet operation
The capture card draws a maximum of 0.2 A at 5 V DC from the USB bus, so no external supply is required. With no fan it runs silently in normal use. Operating temperature range is -10 to +55 °C. The compact aluminium housing measures 53 × 25 × 9 mm with a 160 mm cable.
Highlights
- Low-latency streaming with USB 3.0 up to 1080p 60fps output
- Dual USB-A and USB-C connectors fit laptops, tablets and phones
- Real-time preview via OBS, VLC or Amcap with no added delay
- Works with Windows, Android, macOS and Linux driver-free on Mac
- Compact 53×25×9 mm aluminium body draws only 0.2 A at 5 V
Specifications
| Brand | elgato |
|---|---|
| Series | PAP-001 |
| Model | PAP-001 |
| Housing Color | Grey-A/C |
| Specification | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux, 1080p, YUV2/MJPEG, Windows, Linux, Mac Os, Video Recording, Installation Guide |
| Others | Video Recording, 1080p, YUV2/MJPEG, Windows, Linux, Mac Os, Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Type | External TV Tuner Box |
| Resolution Support | 1080P |
| Format | YUV2/MJPEG |
| Max Monitor Supported | YUV2/MJPEG |
| Color | Black |
| Video | YUV2/MJPEG, 1080p |
| Device Control | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Video Input | usb3.0, usb3.0_c, hdmi |
| Video Output | YUV2/MJPEG |
| Audio Output | usb3.0_c |
| Display | 1080p |
| System Requirements | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Power Supply | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux, false |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Weight | 28 grams |
| Package Content | Installation Guide |
| Package Contents | Installation Guide |
| Ports In | usb3.0, usb3.0_c, hdmi |
| Specifications | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux, 1080p, YUV2/MJPEG, Installation Guide, 28 grams, 1.9 L x 8.1 W x 11.4 H centimeters, Papeaso_HDMI_USB_C_Capture_Card |
| Processor | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Graphics Card | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Memory | Device with USB 3.0 interface and one of the following operating systems: Windows, Android, MacOS, or Linux |
| Operating Systems Supported | Microsoft Windows, Mac OS X, Linux |
| Video Encoding | Hardware Encoding |
| Video Format | Divx |
| Windows Vista | Certified for Windows Vista |
| Features | Video Recording, 1080p |
Questions about this item
What comes in the box and do I need any extra cables?
The card includes both USB-A and USB-C connectors on a 160 mm tether, so you can plug straight into a USB 3.0 port. You must supply your own HDMI cable to connect the source device.
The specs list 4K 30 Hz input and 1080p 60 Hz output — which should I use for streaming?
Choose 1080p 60 Hz output for smooth live streaming; the 4K 30 Hz input is only useful if your source runs at 3840×2160@30 Hz and you are happy with the down-scaled 1920×1080@60 Hz feed.
What does the 1080p 60 fps headline mean once the card is in my PC?
The device captures YUV2 or MJPEG video at up to 1920×1080@60 Hz with ultra-low latency, drawing 0.2 A from the USB 3.0 bus, and works driver-free with OBS, VLC or QuickTime on Windows, macOS, Linux or Android.
