Black rectangular HDMI audio extractor with HDMI, optical and 3.5mm ports

WRIARICH

WRIARICH OZV8 HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-SMNQ-BTKWB

Extracts audio from an HDMI source to optical SPDIF and 3.5 mm outputs while passing 4K 60 Hz video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to optical or 3.5 mm jack for soundbar or headphones
  • Pass-through 4K at 60 Hz keeps video sharp on your display
  • EDID switch selects stereo or 5.1 surround output mode
  • HDCP 1.4 and ARC support for protected content and return audio
  • Compact 5.59 x 3.15 x 1.26 in unit includes power supply and HDMI cable

HDMI Audio Extractor for 4K 60Hz

The WRIARICH OZV8 takes a single HDMI source and splits the signal into a pass-through HDMI output plus separate optical SPDIF and 3.5 mm analogue audio. It is designed for users who need to feed a soundbar, amplifier or headphones while keeping the video path intact. An EDID switch selects pass-through, two-channel or 5.1-channel audio modes. A 5 V power adapter is included.

Thermals noise and power draw

The unit draws power from the supplied 5 V 1 A adapter and runs without a fan, so operation is completely silent. Its compact enclosure stays cool during normal use because the circuitry only processes the HDMI stream and extracts audio. No active cooling or external heatsink is required.

Build quality and daily connectivity

The black housing measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, making it easy to tuck behind a display or AV rack. Gold-plated connectors resist corrosion on the HDMI input, HDMI output, optical port and 3.5 mm jack. The EDID switch and power socket are accessible on the same face for quick adjustments.

Highlights

  • Extract audio to optical or 3.5 mm jack for soundbar or headphones
  • Pass-through 4K at 60 Hz keeps video sharp on your display
  • EDID switch selects stereo or 5.1 surround output mode
  • HDCP 1.4 and ARC support for protected content and return audio
  • Compact 5.59 x 3.15 x 1.26 in unit includes power supply and HDMI cable

Specifications

BrandWRIARICH
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

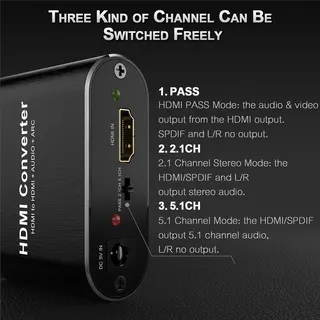

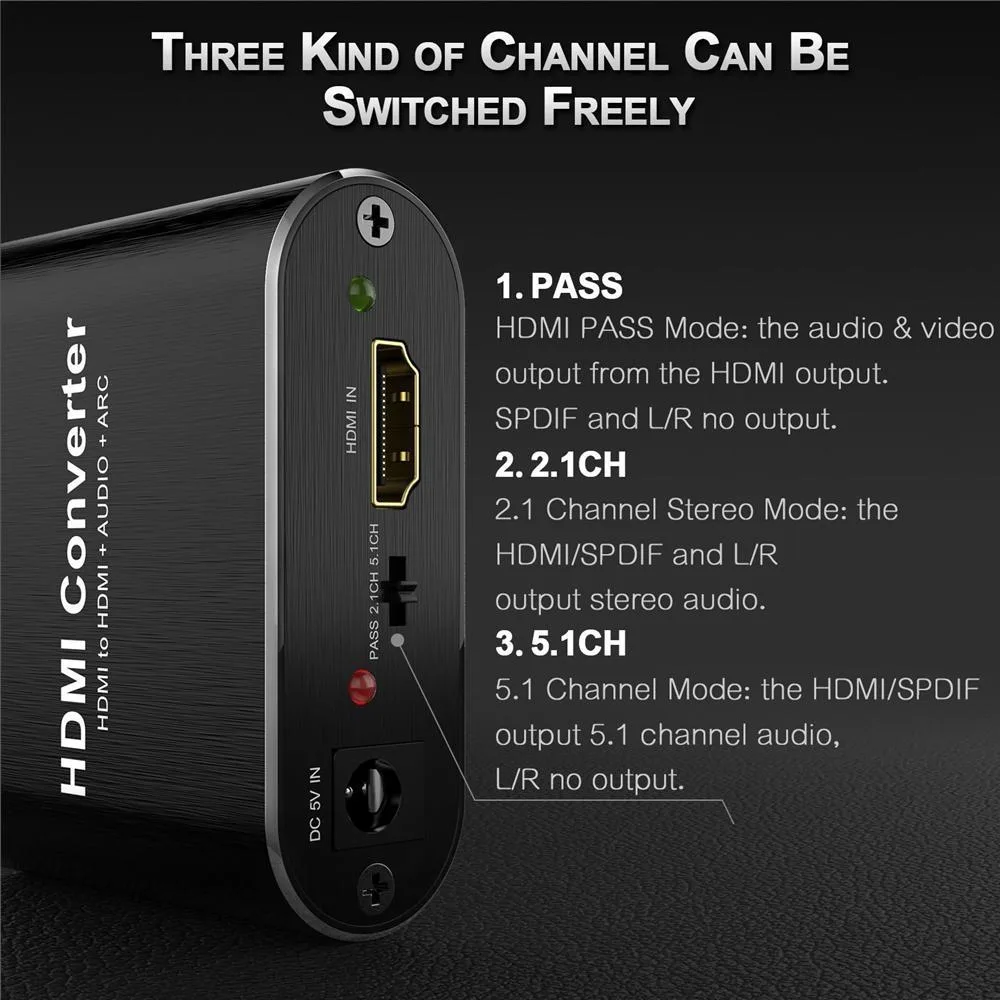

2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How do I connect the OZV8 extractor and which EDID switch position should I use for 5.1 surround?

Connect the source to HDMI IN, attach the included 5V/1A adapter to the power port, run HDMI OUT to the display, then set the EDID switch to 5.1CH before powering on so the source sends multichannel audio to the optical and 3.5mm outputs.

Will the optical or 3.5mm jack degrade over time and need replacement?

Both outputs are passive connectors with no moving parts; they do not wear out under normal use and require no scheduled maintenance or replacement.

At what bandwidth does the HDMI path reach its limit with 4K 60 Hz content?

The HDMI path is rated for 18 Gbps bandwidth, which is the maximum for 4K 60 Hz 4:4:4 signals; sustained use at that rate is the first limit encountered.
