Small black box with HDMI, optical and 3.5mm ports

WRIARICH

WRIARICH OZV8 4K 60Hz HDMI Audio Extractor ARC

SKU CH-X6KV-DKMCA

Extracts 4K 60Hz HDMI audio to optical SPDIF and 3.5 mm stereo with ARC support

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • ARC support returns TV sound to a soundbar or amplifier without extra cables
  • EDID switch selects Pass, 2-channel or 5.1-channel audio for compatibility
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz with deep colour
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure fits behind any display

Compact HDMI audio extractor

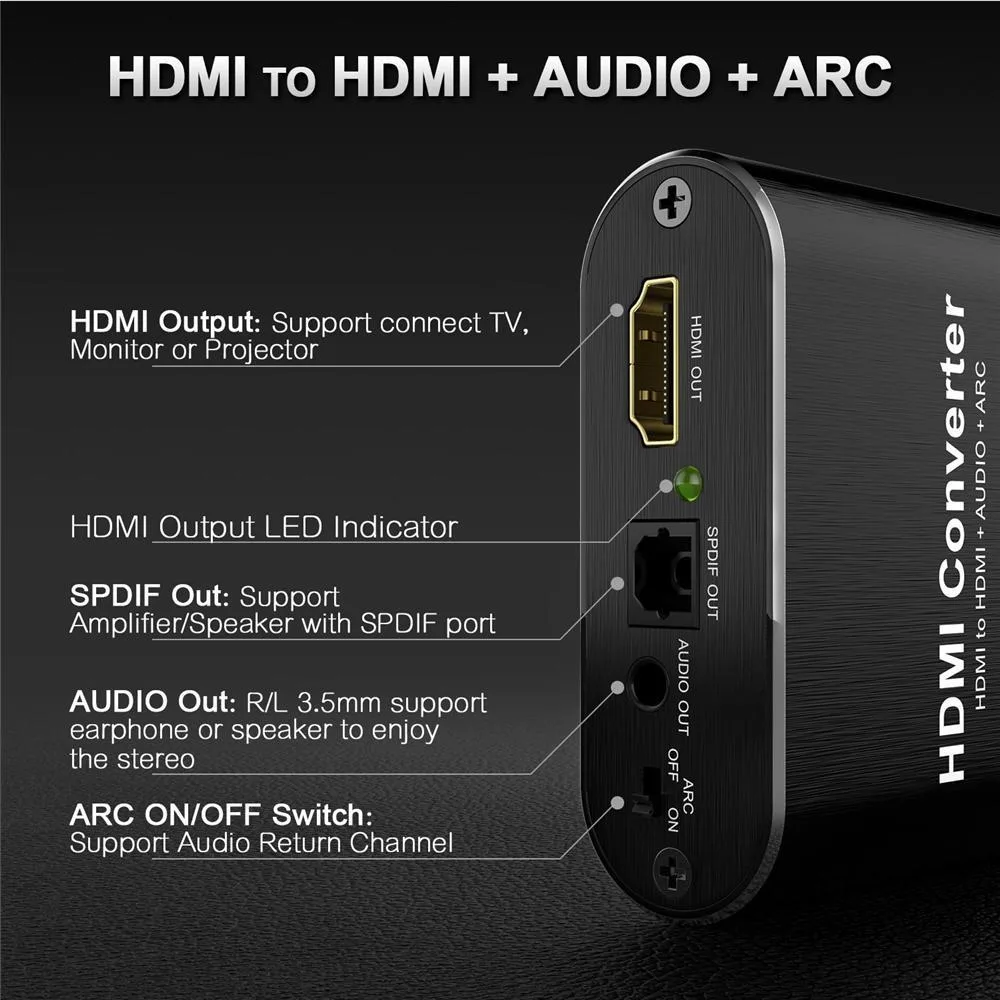

The WRIARICH OZV8 takes a single HDMI source and splits the signal into a pass-through HDMI output plus separate optical TOSLINK and 3.5 mm analogue audio feeds. It handles video up to 4K at 60 Hz with 18 Gbps bandwidth and HDCP 1.4 compliance. The unit is aimed at installers and home users who need to route sound to a soundbar, amplifier or headphones while keeping the picture on a display.

Bundled cable and power supply

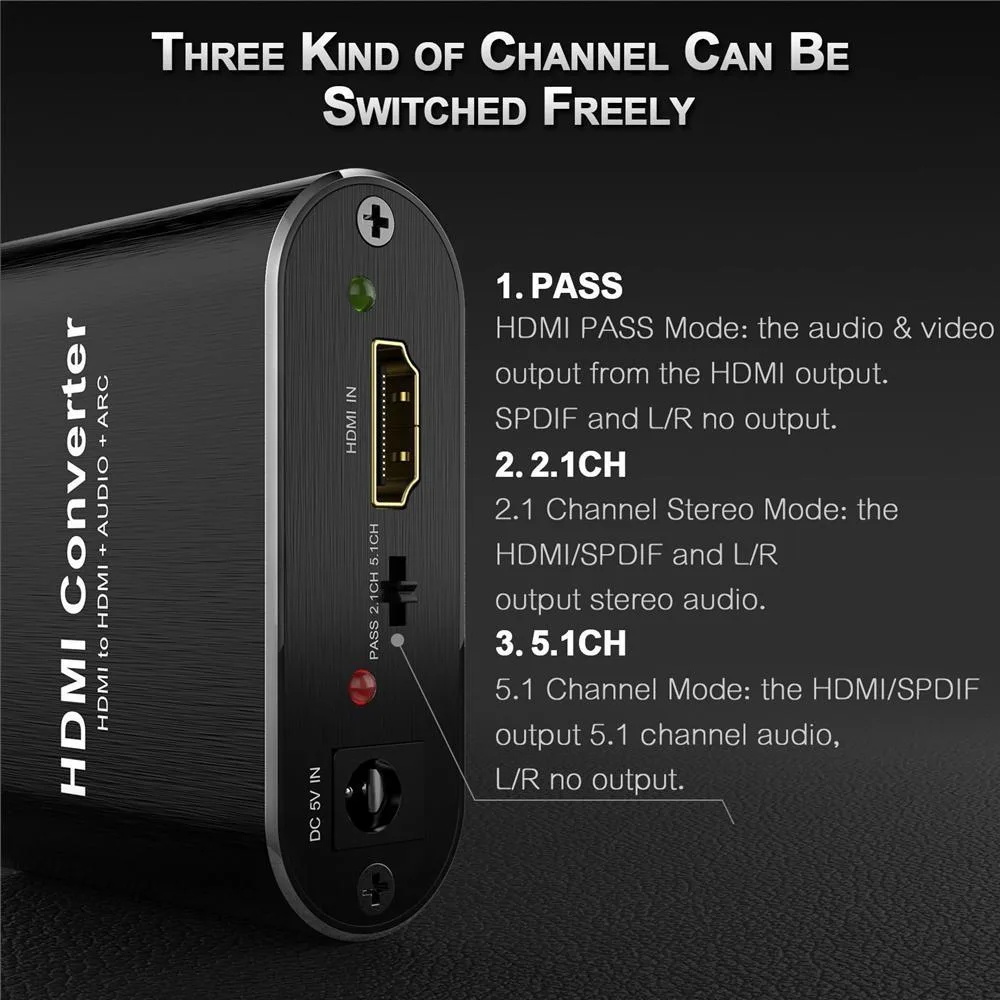

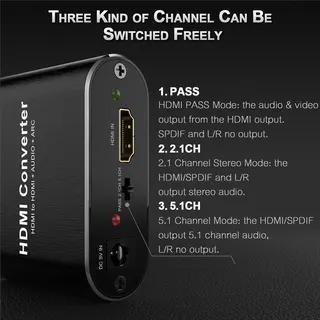

A 5 V 1 A power adapter and an HDMI cable are included so the extractor works immediately without extra purchases. Three EDID audio switches let you choose Pass, 2-channel or 5.1-channel output to match the connected audio device. Both the optical and analogue ports can drive different receivers at the same time, simplifying multi-zone setups.

Small metal enclosure with mounting ears

The black chassis measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, fitting easily behind a TV or in a rack. Gold-plated HDMI connectors resist corrosion and maintain the 340 MHz signal integrity needed for 24-bit, 30-bit and 36-bit deep colour. ARC support allows audio return from a compatible display without an extra cable run.

Highlights

  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • ARC support returns TV sound to a soundbar or amplifier without extra cables
  • EDID switch selects Pass, 2-channel or 5.1-channel audio for compatibility
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz with deep colour
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure fits behind any display

Specifications

BrandESTONE
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Will the 5V power adapter or the HDMI cables need replacing over time?

The unit ships with a 5V/1A power adapter and an HDMI cable; both are standard consumables that can be swapped with any compatible 5V 1A supply or certified HDMI lead if they wear out.

What bandwidth ceiling limits 4K 60Hz passthrough during extended sessions?

The extractor handles 18Gbps bandwidth at 340MHz pixel clock, so the 4K 60Hz signal stays within spec as long as the source and display both support HDMI 1.4 and HDCP 1.4.

Does the box get hot or draw much power when it runs 24/7?

It draws only 5V at 1A from the included adapter, so heat output is minimal and the compact 5.59 x 3.15 x 1.26 inch case stays cool during continuous operation.
