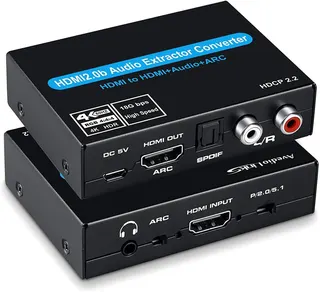

Small black box with HDMI input and multiple audio outputs including optical, RCA and 3.5mm jack

WRIARICH

WRIARICH OZV8-2 HDMI Audio Extractor 4K 60Hz ARC

SKU CH-WXC1-CCGGZ

Splits one HDMI source into HDMI ARC plus optical, stereo RCA and 3.5 mm audio outputs at 4K 60 Hz

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extracts audio to SPDIF, RCA and 3.5 mm from one HDMI source
  • Passes 4K 60 Hz YUV4:4:4 video with HDR10 and Dolby Vision
  • Handles Dolby Atmos, DTS-HD and 7.1 LPCM through ARC return channel
  • Runs up to 10 metres on AWG26 cable at HDMI 2.0 bandwidth
  • Compact 3.35 x 0.79 x 2.68 inch unit powered by 5 V 1 A adapter

What this HDMI audio extractor does

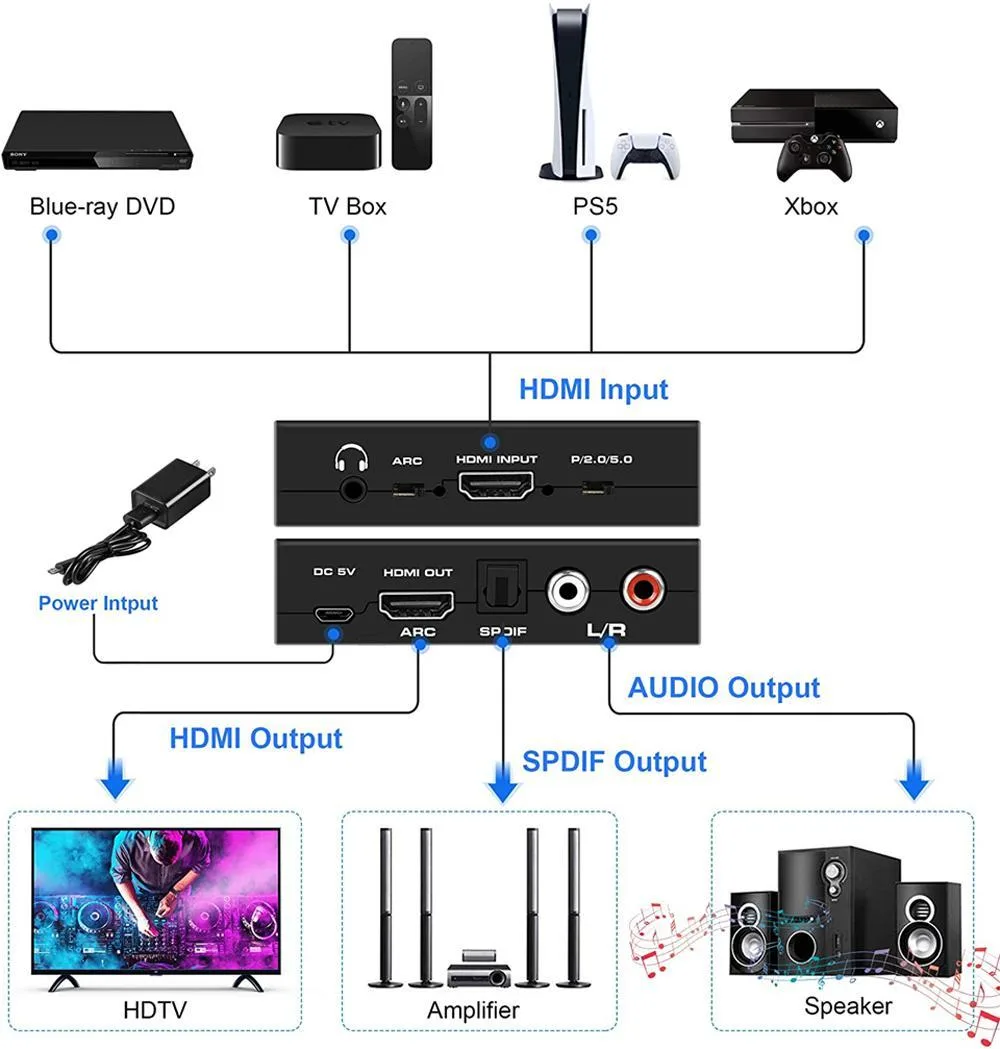

The WRIARICH OZV8-2 takes one HDMI source and splits the signal into an HDMI ARC output plus three analogue and digital audio ports. It is built for owners of 4K displays or projectors who need separate sound feeds for a soundbar, AV receiver or headphones. The unit ships with a 5 V power adapter and a user manual.

The specification that decides compatibility

It supports 4K at 60 Hz with YUV 4:4:4 chroma, HDR10, Dolby Vision and Dolby Atmos, plus HDCP 2.2 copy protection. The HDMI input follows the 2.0a standard and the box accepts cables up to 10 metres using AWG 26 wire. Audio formats handled include DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD.

Who should buy this and who should not

Home-cinema builders who want to keep 4K 60 Hz video intact while extracting multichannel or stereo audio will find the OZV8-2 a direct fit. Buyers who need more than one HDMI input, or who require HDMI 2.1 bandwidth for higher frame rates, should look at a different class of switch.

Highlights

  • Extracts audio to SPDIF, RCA and 3.5 mm from one HDMI source
  • Passes 4K 60 Hz YUV4:4:4 video with HDR10 and Dolby Vision
  • Handles Dolby Atmos, DTS-HD and 7.1 LPCM through ARC return channel
  • Runs up to 10 metres on AWG26 cable at HDMI 2.0 bandwidth
  • Compact 3.35 x 0.79 x 2.68 inch unit powered by 5 V 1 A adapter

Specifications

BrandWRIARICH
ModelOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack
Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.

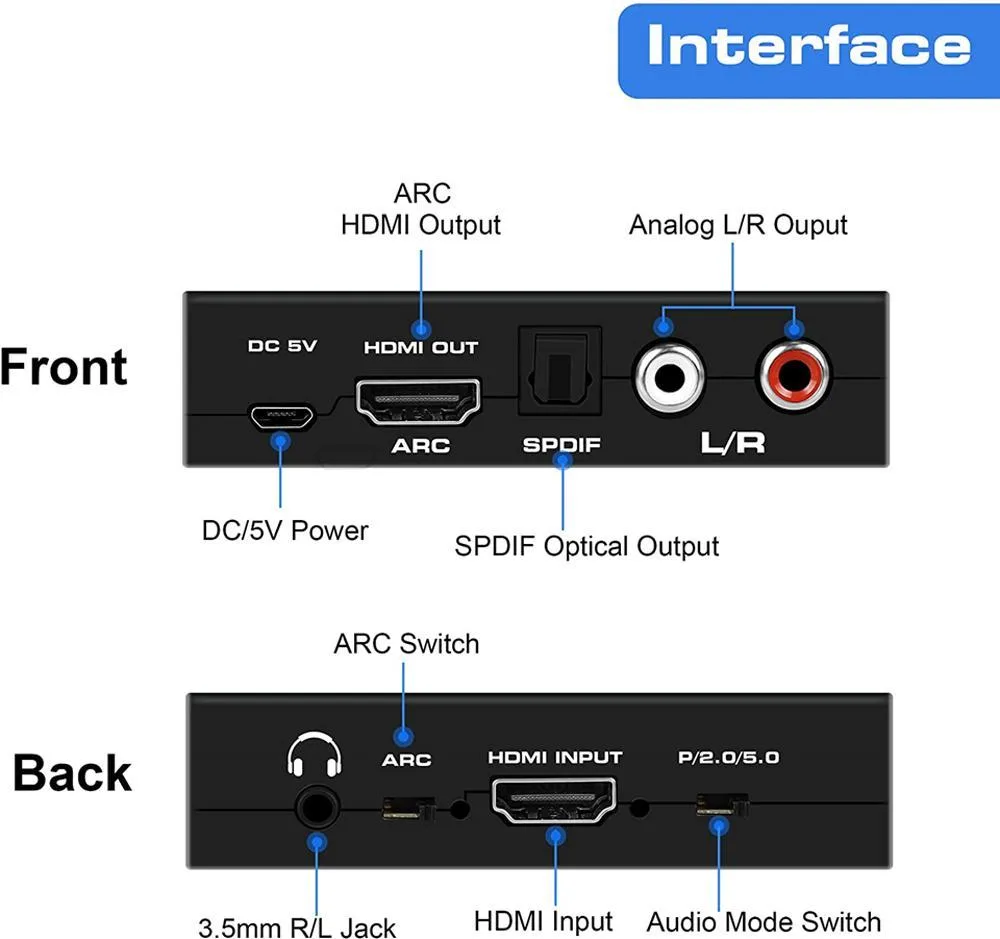

Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More De
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

What does 4K at 60 Hz actually deliver on a TV or projector?

The extractor passes 4K x 2K at 60 Hz with YUV 4:4:4 chroma, so the display receives full-resolution, full-colour video without subsampling.

How does the 600 MHz HDMI 2.0 link limit what I can send through it?

The 600 MHz bandwidth caps the signal at 4K 60 Hz 4:4:4 and HDCP 2.2; higher refresh rates or 8K content cannot be transmitted.

What space and connections do I need to mount the 3.35 x 0.79 x 2.68 inch unit?

It fits in a 3.35 by 2.68 inch footprint with 0.79 inch height, requires one HDMI input and provides HDMI ARC plus SPDIF, RCA and 3.5 mm audio outputs, powered by the included 5 V 1 A adapter.
