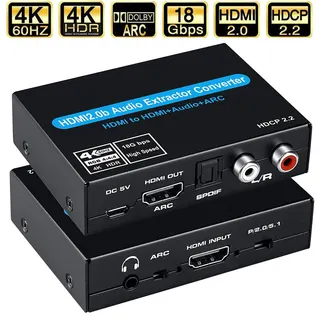

Small black box with HDMI, optical, 3.5mm and RCA ports

WRIARICH

WRIARICH OZV8-2 4K HDMI Audio Extractor Splitter with ARC

SKU CH-2KXQ-EZDF6

Extracts audio from a 4K HDMI source to HDMI ARC, optical, 3.5 mm jack and RCA outputs with HDR and Dolby Atmos support

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extract audio to multiple outputs via HDMI ARC, optical, RCA and 3.5 mm jack
  • Pass 4K 60 Hz YUV4:4:4 video with HDR10 and Dolby Vision support
  • Handle HDCP 2.2 protected content from Blu-ray, consoles and streaming devices
  • Decode Dolby Atmos, TrueHD, DTS-HD and 7.1 LPCM through digital and analogue ports
  • Compact 3.35 x 0.79 x 2.68 inch unit powered by included 5 V 1 A adapter

Audio extractor for HDMI sources

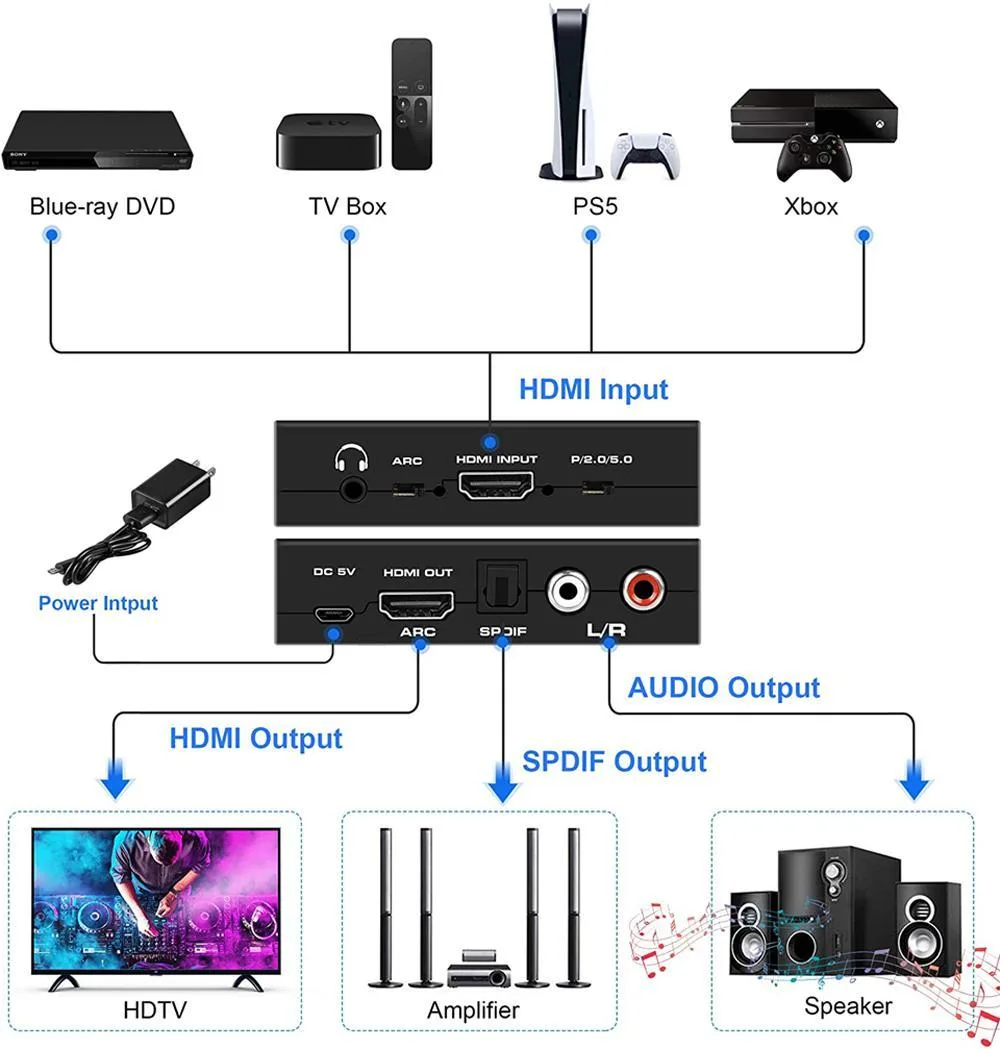

The WRIARICH OZV8-2 takes a single HDMI input and provides simultaneous HDMI ARC output plus optical SPDIF, stereo RCA and 3.5 mm analogue audio connections. It is intended for users who need to separate sound from a 4K video stream for an external sound system or headphones.

Replaces basic HDMI splitters without audio breakout

When a display or projector lacks audio outputs, this unit adds three analogue and digital paths without downgrading the video signal. The upgrade is worthwhile when the source device only offers HDMI and the listening equipment requires Toslink, RCA or a headphone jack.

Maintains 4K 60 Hz YUV4:4:4 through extended cable

Signal retiming and HDCP 2.2 support keep the picture stable over 10 m AWG26 cables at the full 600 MHz bandwidth. HDR10, Dolby Vision and multi-channel formats such as LPCM 7.1 and DTS-HD pass through without dropouts during long playback sessions.

Highlights

  • Extract audio to multiple outputs via HDMI ARC, optical, RCA and 3.5 mm jack
  • Pass 4K 60 Hz YUV4:4:4 video with HDR10 and Dolby Vision support
  • Handle HDCP 2.2 protected content from Blu-ray, consoles and streaming devices
  • Decode Dolby Atmos, TrueHD, DTS-HD and 7.1 LPCM through digital and analogue ports
  • Compact 3.35 x 0.79 x 2.68 inch unit powered by included 5 V 1 A adapter

Specifications

BrandWRIARICH
ModelOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack
Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.

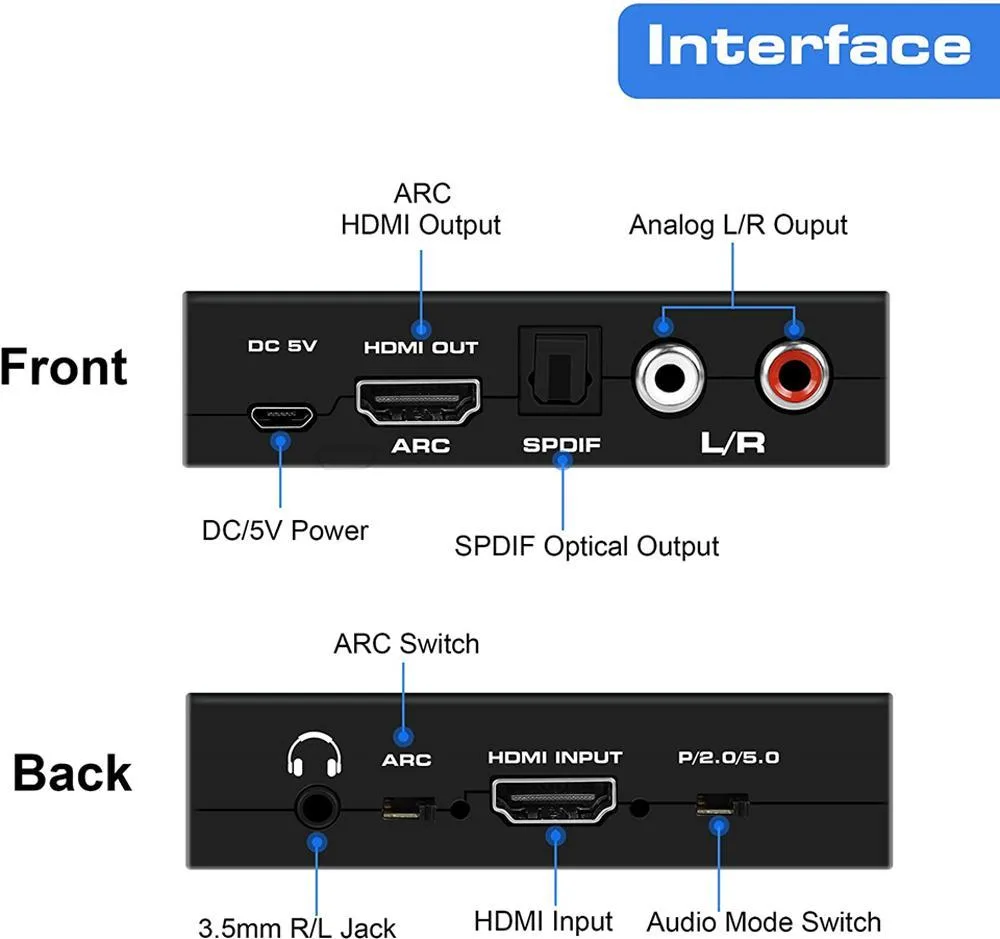

Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More De
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

What size cutout or shelf space does the 3.35 x 0.79 x 2.68 inch unit need?

The extractor measures 3.35 by 0.79 by 2.68 inches and weighs 4.4 ounces, so a small shelf or Velcro mount with that footprint is sufficient.

Which cables plug in first to avoid a handshake failure on the ARC link?

Connect the HDMI source to the input, attach the display to the HDMI ARC output, then plug the 5 V 1 A power adapter before turning on the source.

When should the 5 V 1 A power adapter be replaced?

Replace the adapter if the unit loses audio sync, drops the 4K 60 Hz signal, or the LED no longer lights with a known-good cable.
