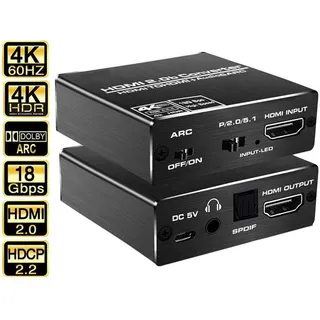

Compact black aluminium box with HDMI, optical and 3.5 mm ports

WRIARICH

WRIARICH OZV8-1 4K HDMI Audio Extractor Splitter 18Gbps

SKU CH-T3HE-1ZBVB

Splits one HDMI source into HDMI video plus optical and 3.5 mm audio at up to 4K 60 Hz with 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio via optical or 3.5mm while passing 4K 60Hz video
  • 18Gbps bandwidth supports 3840×2160 resolution with deep colour up to 36bit
  • Accepts 10m input cable at AWG26 for flexible source placement
  • Handles Dolby TrueHD, DTS-HD and LPCM 7.1 for high-fidelity surround sound
  • Compact aluminium shell measures 5.59×3.15×1.26 inches and weighs 3.2 ounces

Purpose and audience

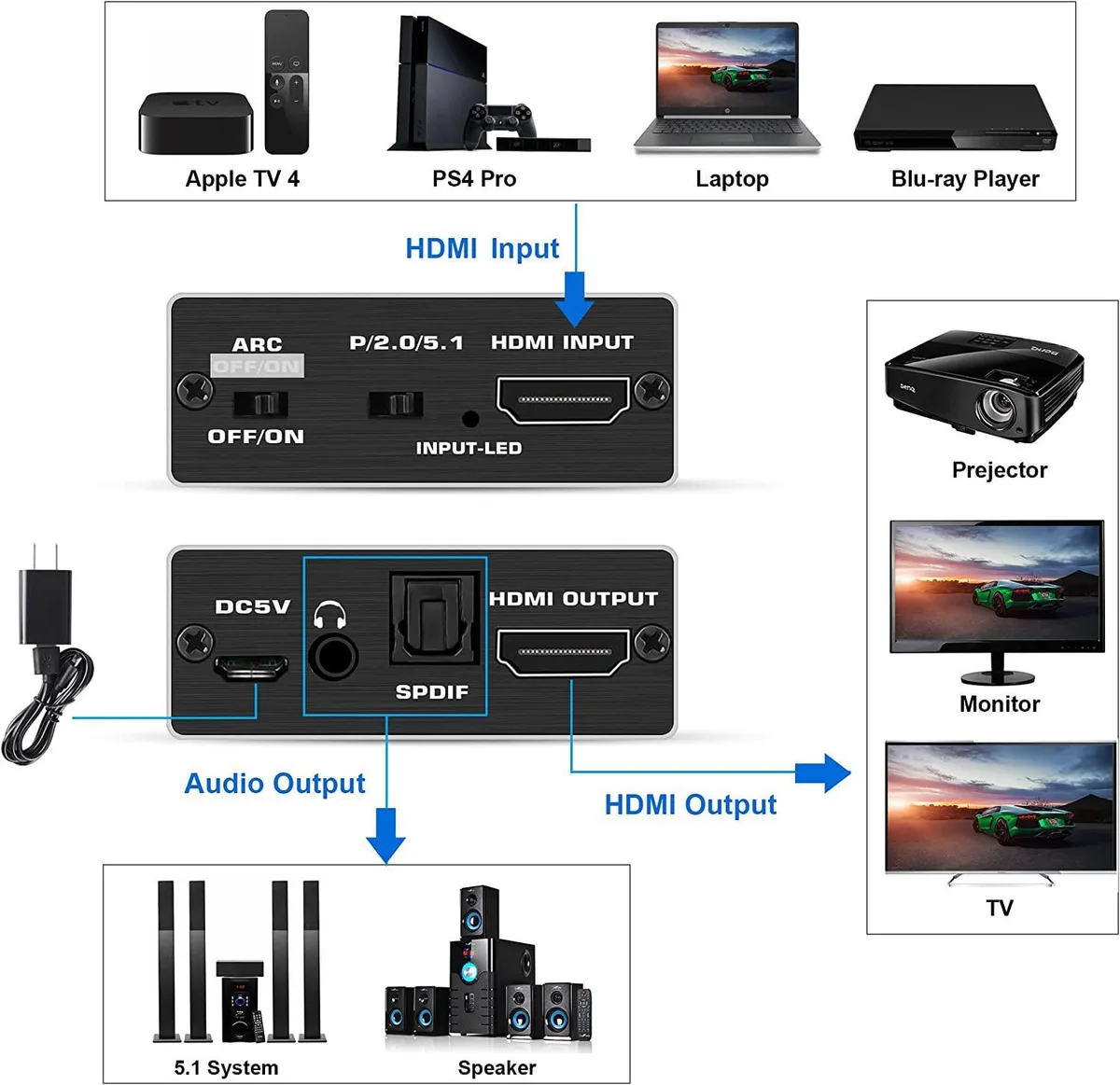

The WRIARICH OZV8-1 extracts digital and analogue audio from a single HDMI source while passing the video signal through to a display. It suits installers and home-theatre owners who need separate optical or 3.5mm feeds for soundbars, AV receivers or powered speakers.

Interface limits

The HDMI path handles 18Gbps bandwidth and supports 3840 x 2160 at 60Hz with 24-bit, 30-bit or 36-bit deep colour. Input cables up to 10m using AWG26 are specified; longer runs may reduce reliability. Dolby Digital Plus is not decoded on the optical output.

Build and connections

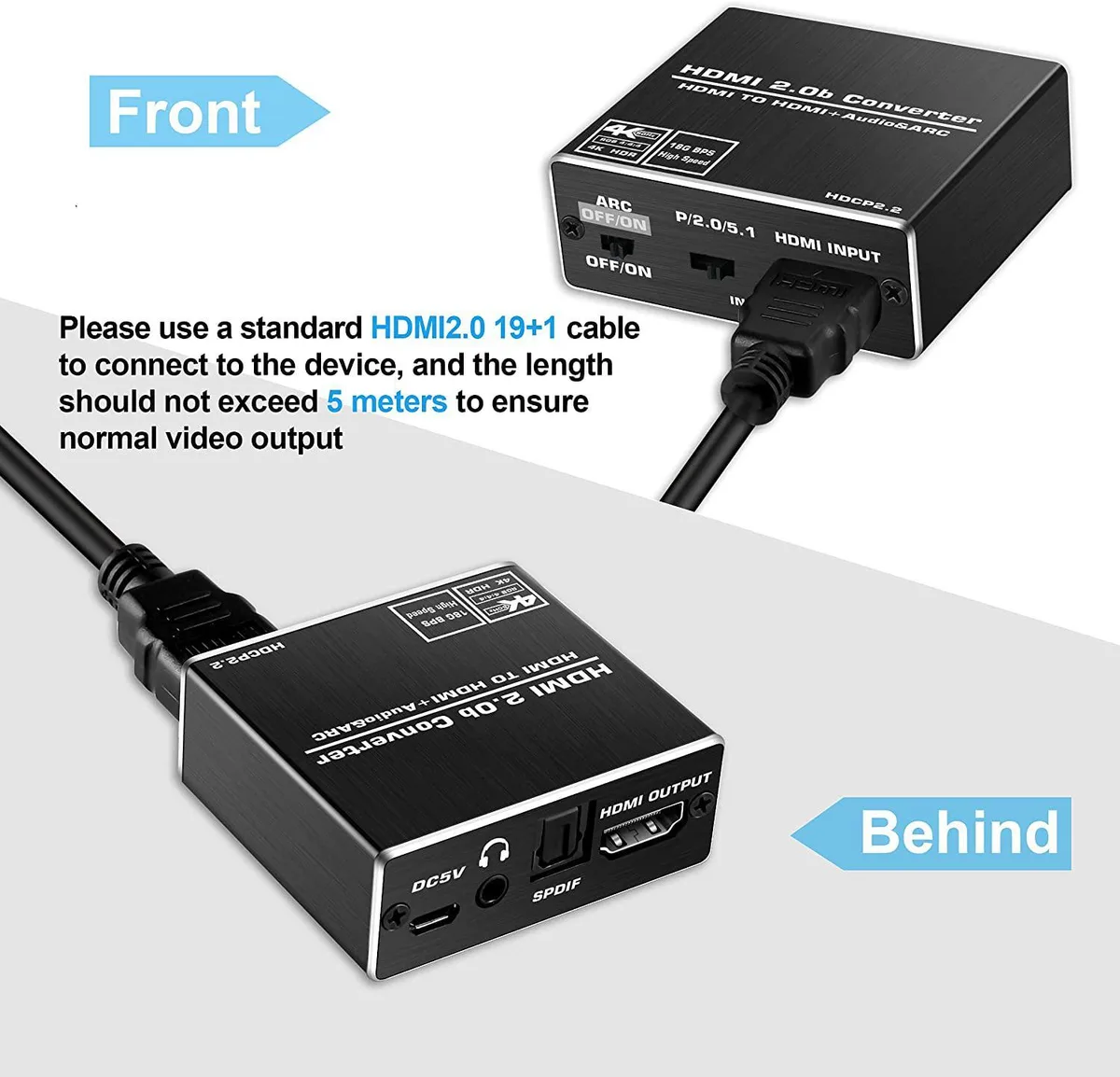

An aluminium shell houses one HDMI input, one HDMI output, a TOSLINK port and a 3.5mm jack. A 5V/1A power adapter is included and required for operation. The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, allowing discreet placement behind equipment.

Highlights

  • Extract audio via optical or 3.5mm while passing 4K 60Hz video
  • 18Gbps bandwidth supports 3840×2160 resolution with deep colour up to 36bit
  • Accepts 10m input cable at AWG26 for flexible source placement
  • Handles Dolby TrueHD, DTS-HD and LPCM 7.1 for high-fidelity surround sound
  • Compact aluminium shell measures 5.59×3.15×1.26 inches and weighs 3.2 ounces

Specifications

BrandWRIARICH
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the OZV8-1 come in different versions or capacities?

The OZV8-1 is a single model with one HDMI input and three outputs: HDMI pass-through, optical TOSLINK, and 3.5 mm stereo. No alternative versions are offered.

What does the 18 Gbps bandwidth mean for my 4K display?

18 Gbps supports 4K at 60 Hz with deep-colour formats up to 36 bit, so HDR sources and high-frame-rate content pass through without compression.

Which HDMI standard does the 18 Gbps figure correspond to, and what does it limit?

18 Gbps matches the HDMI 2.0 capability ceiling, capping video at 4K 60 Hz 4:4:4 and multichannel audio at LPCM 7.1 or bitstream Dolby TrueHD and DTS-HD.
