WRIARICH

WRIARICH OZV8-1 4K@60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-KJEB-VGMXK

Splits one HDMI source into HDMI video plus optical and 3.5mm audio at 4K 60Hz

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extracts digital audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth for 3840 × 2160 resolution at 60 Hz
  • Handles 7.1-channel LPCM and DTS-HD formats via optical output
  • Aluminium shell aids heat dissipation during continuous operation
  • Includes 5 V 1 A power adapter for stable performance

HDMI Audio Extractor for 4K Sources

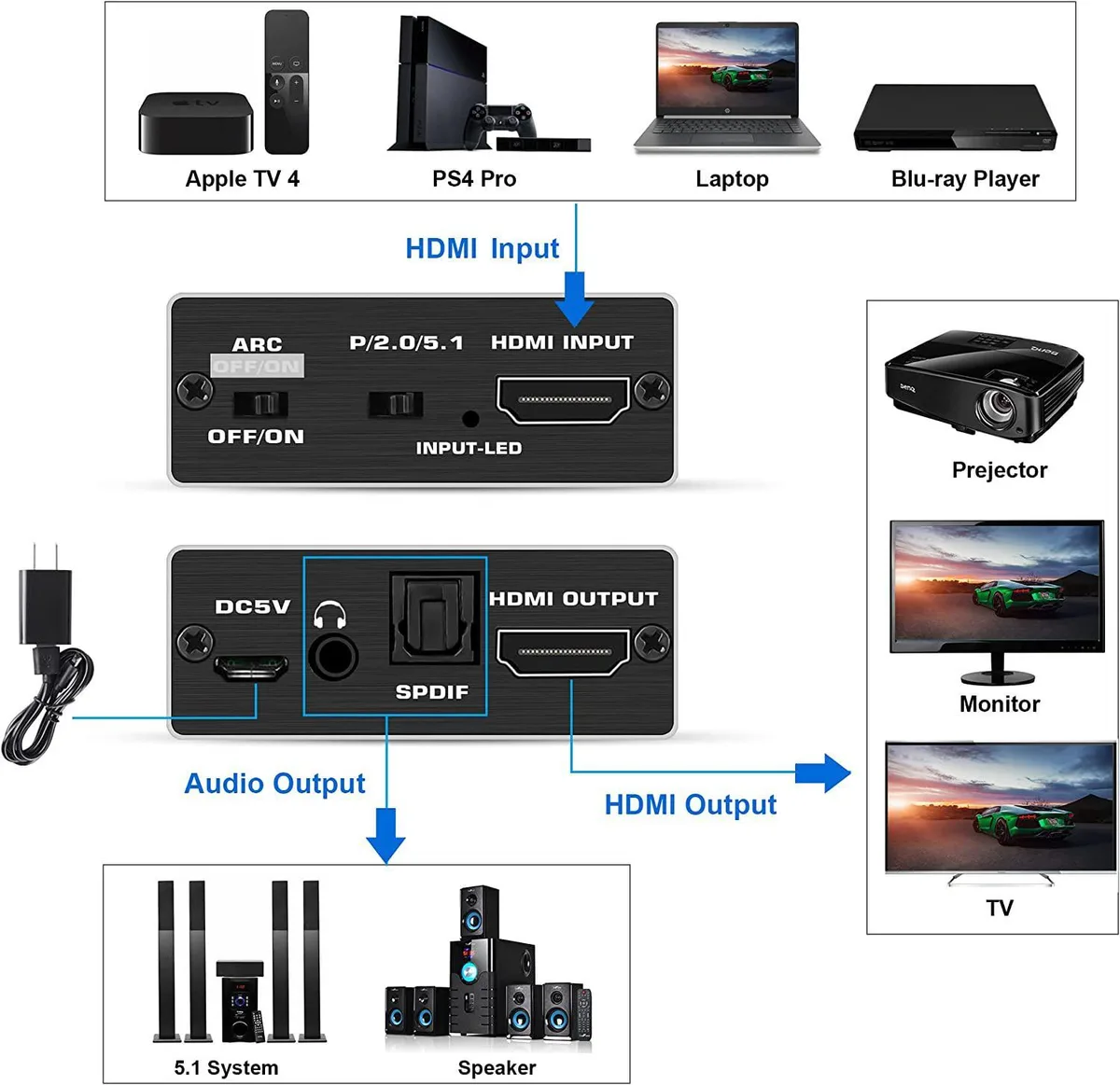

The WRIARICH OZV8-1 separates audio from a single HDMI source while passing video through to a display. It suits owners of consoles, streaming sticks or Blu-ray players who need optical or analogue feeds for older amplifiers or active speakers.

18 Gbps Bandwidth with 4K60 Support

The extractor handles resolutions up to 3840 x 2160 at 60 Hz and deep-colour formats up to 36-bit. It accepts input cables up to 10 metres using AWG26 wire, but will not pass Dolby Digital Plus or exceed the 600 MHz bandwidth limit.

Aluminium Housing with External Power

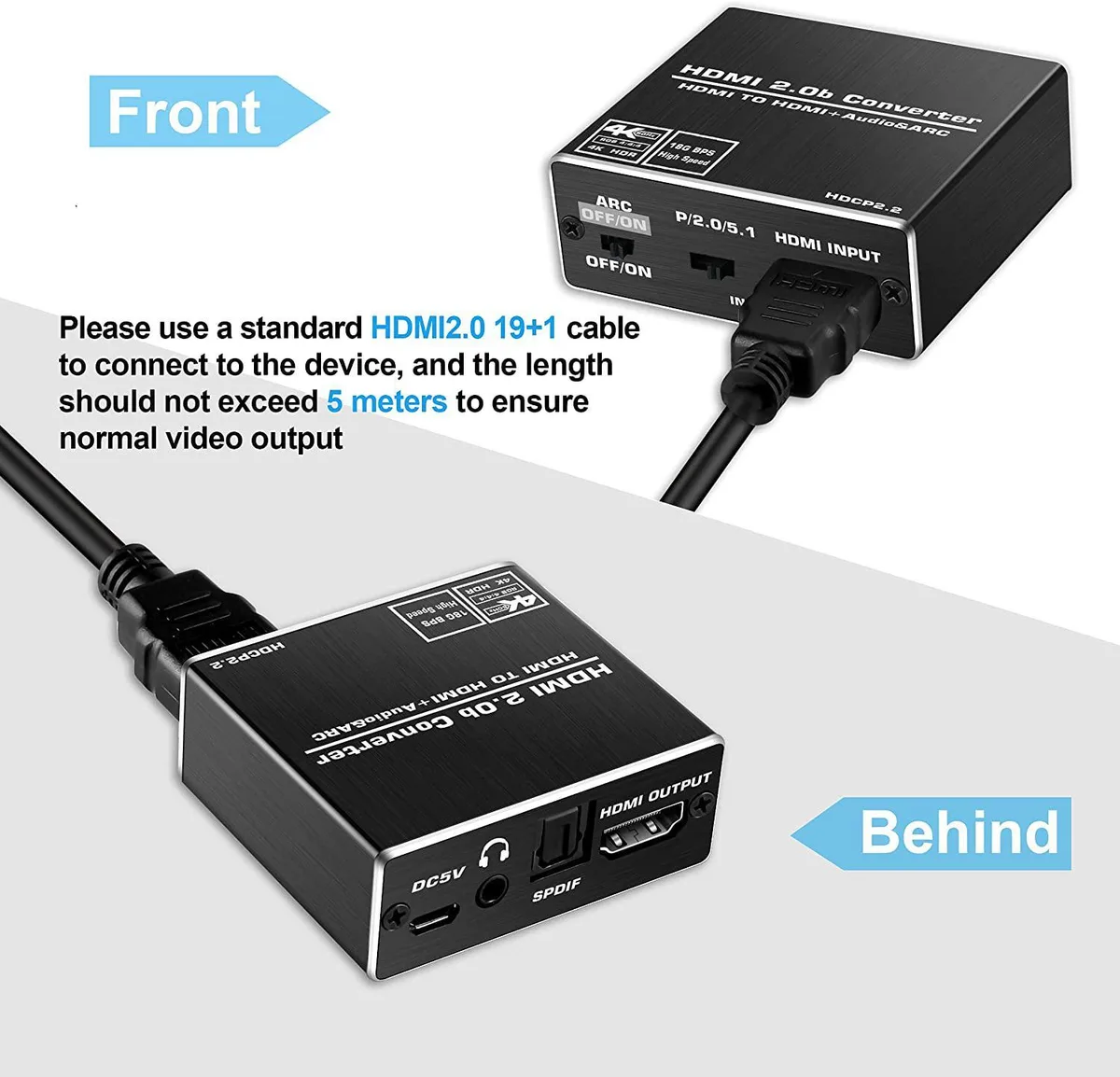

A black aluminium shell houses one HDMI input, one HDMI output, one Toslink port and one 3.5 mm jack. The unit requires the included 5 V/1 A adapter, measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces.

Highlights

  • Extracts digital audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth for 3840 × 2160 resolution at 60 Hz
  • Handles 7.1-channel LPCM and DTS-HD formats via optical output
  • Aluminium shell aids heat dissipation during continuous operation
  • Includes 5 V 1 A power adapter for stable performance

Specifications

BrandWRIARICH
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Will the OZV8-1 pass 4K 60 Hz video from my Fire Stick to an older 1080p TV while sending 5.1 audio to my AV receiver via optical?

Yes — the extractor accepts 4K2K at 60 Hz on its HDMI input and passes the same resolution through the HDMI output; the TV will downscale automatically while the Toslink port carries 5.1-channel DTS or Dolby TrueHD to the receiver.

How can I verify the OZV8-1 is extracting audio correctly once I connect it?

Play a 5.1 test clip; the optical LED should glow and your receiver must show DTS-HD or Dolby TrueHD decoding, while the 3.5 mm jack outputs stereo only — if both match, the extractor is working.

Does the OZV8-1 box include the HDMI cables I need for my PS3 and soundbar, or must I buy them separately?

The package contains only the extractor, a 5 V 1 A power adapter and a user manual; all HDMI cables must be purchased separately.
