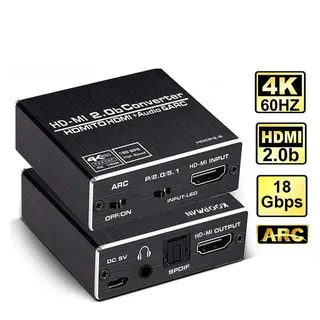

Small black aluminium box with HDMI, optical and 3.5mm ports

WRIARICH

WRIARICH OZV8-1 4K 60Hz HDMI Audio Extractor

SKU CH-1DCQ-FADGA

Extracts audio from 4K 60 Hz HDMI sources to optical, 3.5 mm and HDMI outputs with 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth with deep colour up to 36 bit
  • Handles 3D and multiple resolutions from 480i to 4K 2160p
  • Decodes DTS-HD, Dolby TrueHD and LPCM 7.1 on SPDIF output
  • Aluminium housing with 5 V power adapter included for stable operation

4K 60Hz HDMI Audio Extractor

The WRIARICH OZV8-1 splits a single HDMI source into one HDMI pass-through plus optical Toslink and 3.5 mm analogue outputs. It handles resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and supports 3D and deep colour formats. Ideal for users who need to route audio to a soundbar or AV receiver while keeping the video signal intact.

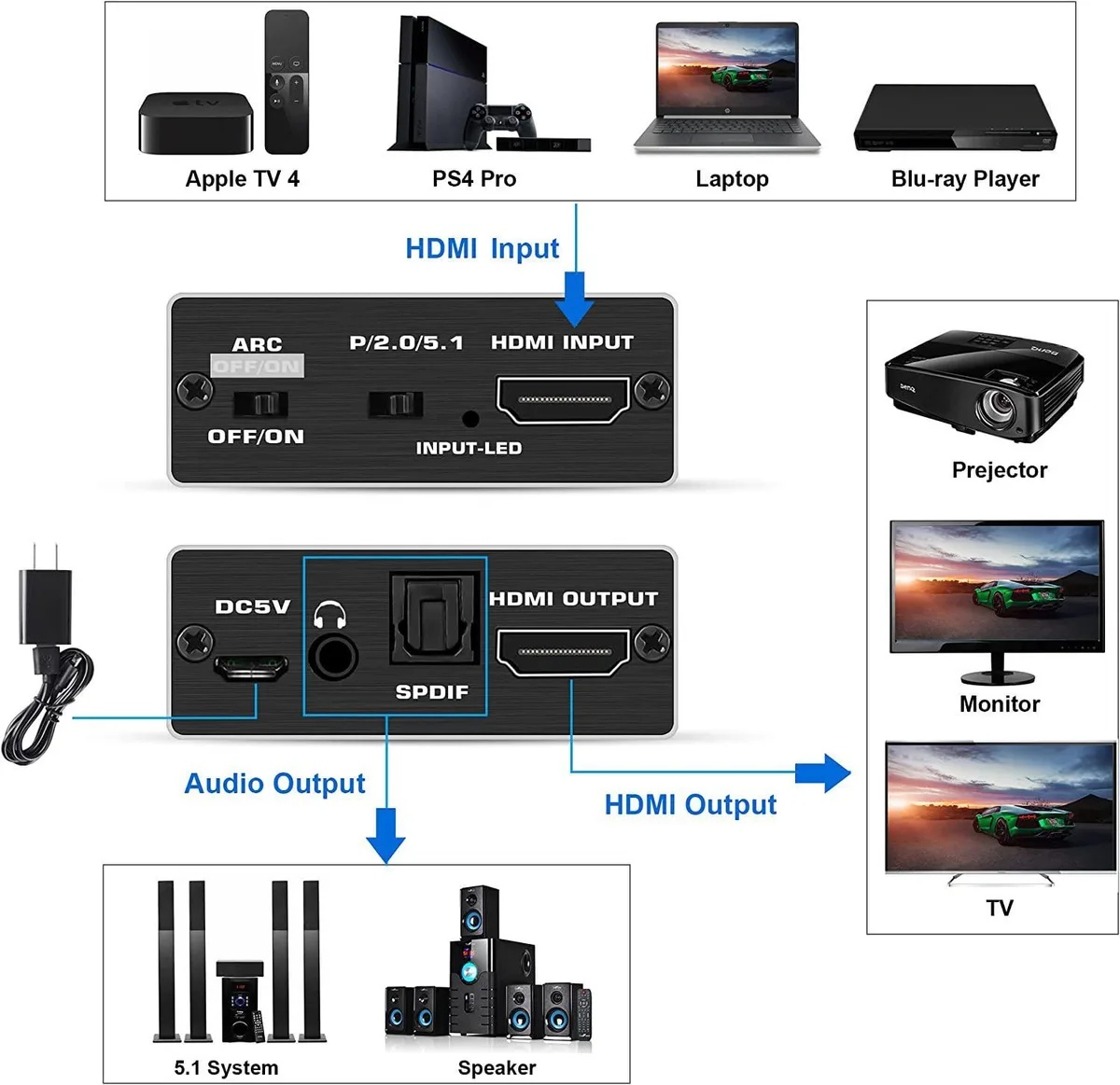

Simple connection with external power

Plug the source into the HDMI input, connect the display to the HDMI output, and attach either the optical or 3.5 mm cable to your audio system. The unit requires the included 5 V 1 A adapter; without it the extractor will not function. Input cables up to 10 m using AWG26 standard HDMI are supported, but longer runs may cause signal loss.

Stable 18 Gbps throughput under load

The aluminium shell aids heat dissipation during continuous 4K 60 Hz playback, maintaining the full 18 Gbps baud rate without dropouts. Audio formats including LPCM 7.1, DTS-HD and Dolby TrueHD pass through the optical port reliably during extended sessions. The 3.5 mm output remains limited to two-channel stereo, so multichannel analogue setups are not supported.

Highlights

  • Extract audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth with deep colour up to 36 bit
  • Handles 3D and multiple resolutions from 480i to 4K 2160p
  • Decodes DTS-HD, Dolby TrueHD and LPCM 7.1 on SPDIF output
  • Aluminium housing with 5 V power adapter included for stable operation

Specifications

BrandWRIARICH
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How do I confirm the OZV8-1 is passing 4K 60Hz video after connecting it?

Play 4K 60Hz content from your source and verify the display shows 3840 x 2160 at 60 Hz with 24 bit or deep color 30 bit and 36 bit support active.

Which cables and accessories are included with the OZV8-1 and what must I provide?

The box contains the extractor, a 5V 1A power adapter and a user manual; you must supply the HDMI input cable up to 10 m AWG26 and any HDMI, optical Toslink or 3.5 mm output cables.

Which audio output mode should I select on the OZV8-1 for my sound system?

Use the HDMI pass-through for video with audio, choose SPDIF optical for 2.0 CH or 5.1 CH digital audio, or use the 3.5 mm jack for 2 CH analogue stereo.
