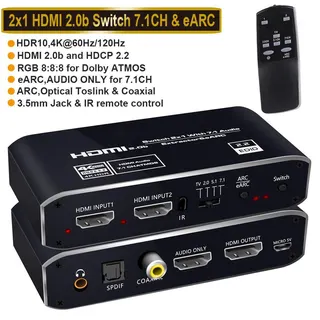

Small black box with two HDMI inputs and multiple audio outputs, IR remote included

WRIARICH

WRIARICH OZV2E 4K 60Hz HDMI 2.0b Switch Audio Extractor

SKU CH-TKC6-0N83B

A 2-port HDMI 2.0b switch extracts audio to optical, 3.5 mm, coaxial and 7.1-channel HDMI while passing 4K 60 Hz video with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switches two HDMI sources to one display at 4K 60 Hz
  • Extracts audio to optical, coaxial, 3.5 mm and 7.1-channel HDMI
  • Supports Dolby Atmos, DTS:X and multi-channel LPCM via ARC
  • Four-position toggle selects TV, 2.0, 5.1 or 7.1 audio output
  • Includes IR remote and 5 V power supply for immediate setup

4K 60Hz HDMI 2.0b Audio Switch

The WRIARICH OZV2E is a 2-port HDMI 2.0b switch with integrated audio extraction. It accepts two HDMI sources and routes video to one HDMI output while sending audio to optical Toslink, coaxial, 3.5 mm jack or a dedicated 7.1-channel HDMI audio port. The unit supports 4K resolution at 60 Hz and 3D content.

Upgrade from basic HDMI splitters

Basic splitters duplicate the same signal to multiple displays without audio separation. This switch adds format conversion via a four-position toggle for TV, 2.0, 5.1 and 7.1 audio modes. It also handles ARC and eARC return audio from a compatible television. The jump is worthwhile when a sound system lacks HDMI inputs or when source devices outnumber display ports.

Home-theatre owners with legacy audio gear

Buyers who need to connect modern 4K sources to an older AV receiver or powered speakers via optical, coaxial or analogue inputs will benefit. The extractor also serves setups requiring simultaneous HDMI video and separate multi-channel audio. Users needing more than two HDMI inputs or HDMI 2.1 bandwidth should consider a different solution.

Highlights

  • Switches two HDMI sources to one display at 4K 60 Hz
  • Extracts audio to optical, coaxial, 3.5 mm and 7.1-channel HDMI
  • Supports Dolby Atmos, DTS:X and multi-channel LPCM via ARC
  • Four-position toggle selects TV, 2.0, 5.1 or 7.1 audio output
  • Includes IR remote and 5 V power supply for immediate setup

Specifications

BrandWRIARICH
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.

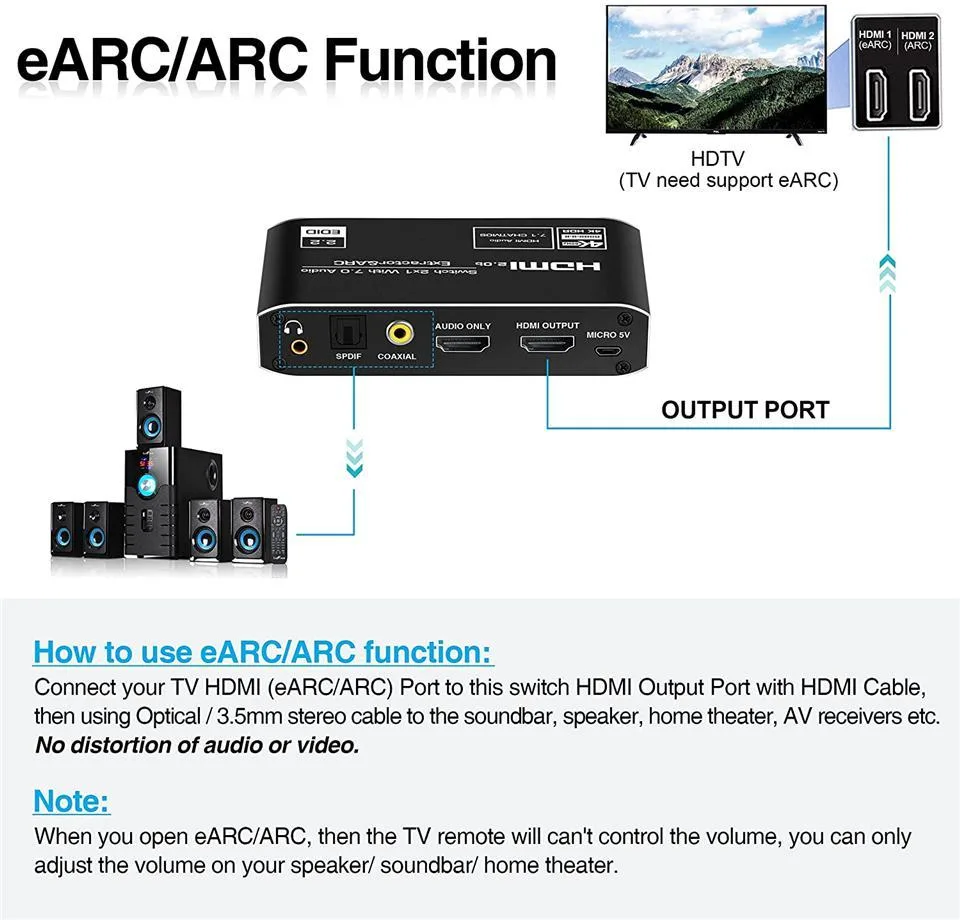

HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

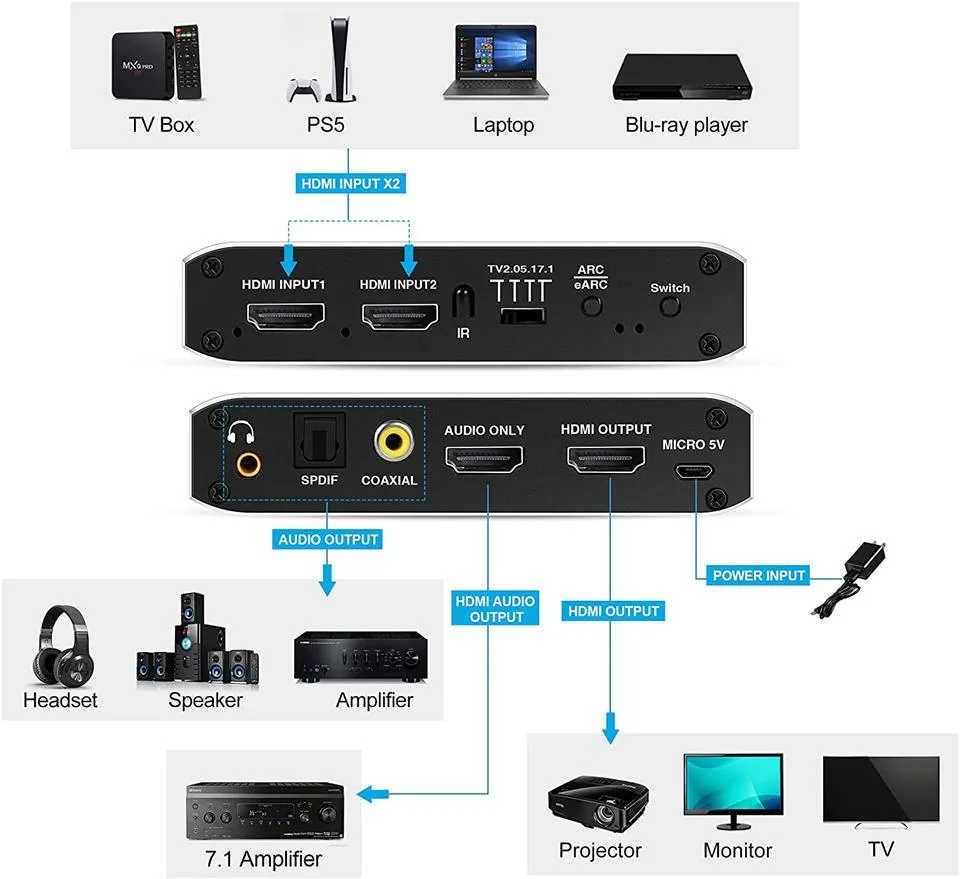

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What cables and clearance does the 5.75 x 5.08 x 1.5 inch switch need?

Two HDMI 2.0b inputs and one HDMI 2.0b output plus audio cables; the unit measures 5.75 x 5.08 x 1.5 inches and weighs 8.8 ounces, so allow space for the 5V/1000mA power adapter and cable bend radius.

Which step is most often missed when hooking up the IR remote and audio formats?

Insert a battery into the IR remote (not supplied), connect the 5V/2A DC power adapter before switching sources, then use the 4-position toggle to select TV, 2.0, 5.1 or 7.1 audio output.

What will need replacing or cleaning over time on this extractor?

The IR remote battery will need replacement; keep the optical Toslink, 3.5mm, coaxial and HDMI ports dust-free and ensure the 5V/2A power adapter remains ventilated.
