Black rectangular HDMI switch with four inputs and multiple audio outputs

WRIARICH

WRIARICH OZQ9 4K 60Hz HDMI Switch Audio Extractor

SKU CH-NGRB-13VR2

A 4-input HDMI switch extracts audio to optical, coaxial, 3.5 mm and stereo RCA while passing 4K 60 Hz video with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four HDMI sources to one display with 4K 60 Hz support
  • Extract audio via optical, coaxial or 3.5 mm jack with ARC function
  • Switch inputs instantly using the included IR remote control
  • Maintains 18 Gbps bandwidth and 36-bit deep colour for HDR content
  • Compact 5.91 x 2.36 x 0.79 inch metal chassis fits any setup

Four-input HDMI switch with audio extraction

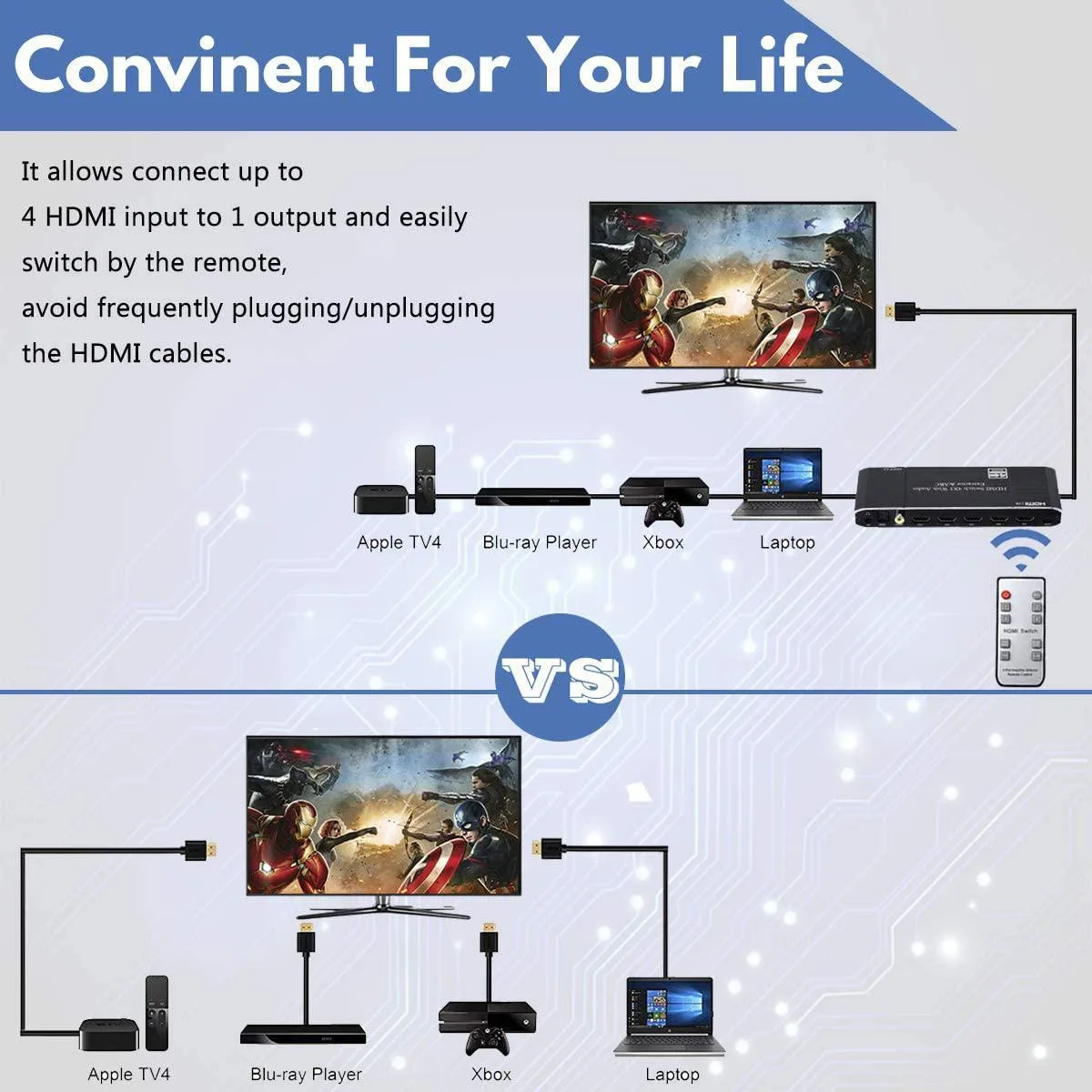

The WRIARICH OZQ9 routes four HDMI sources to a single display while pulling audio out through optical, coaxial or 3.5 mm analogue outputs. An HDMI output with ARC support returns TV audio to an external system. IR remote switching lets users change sources without leaving the sofa.

Compact metal chassis with front-panel LEDs

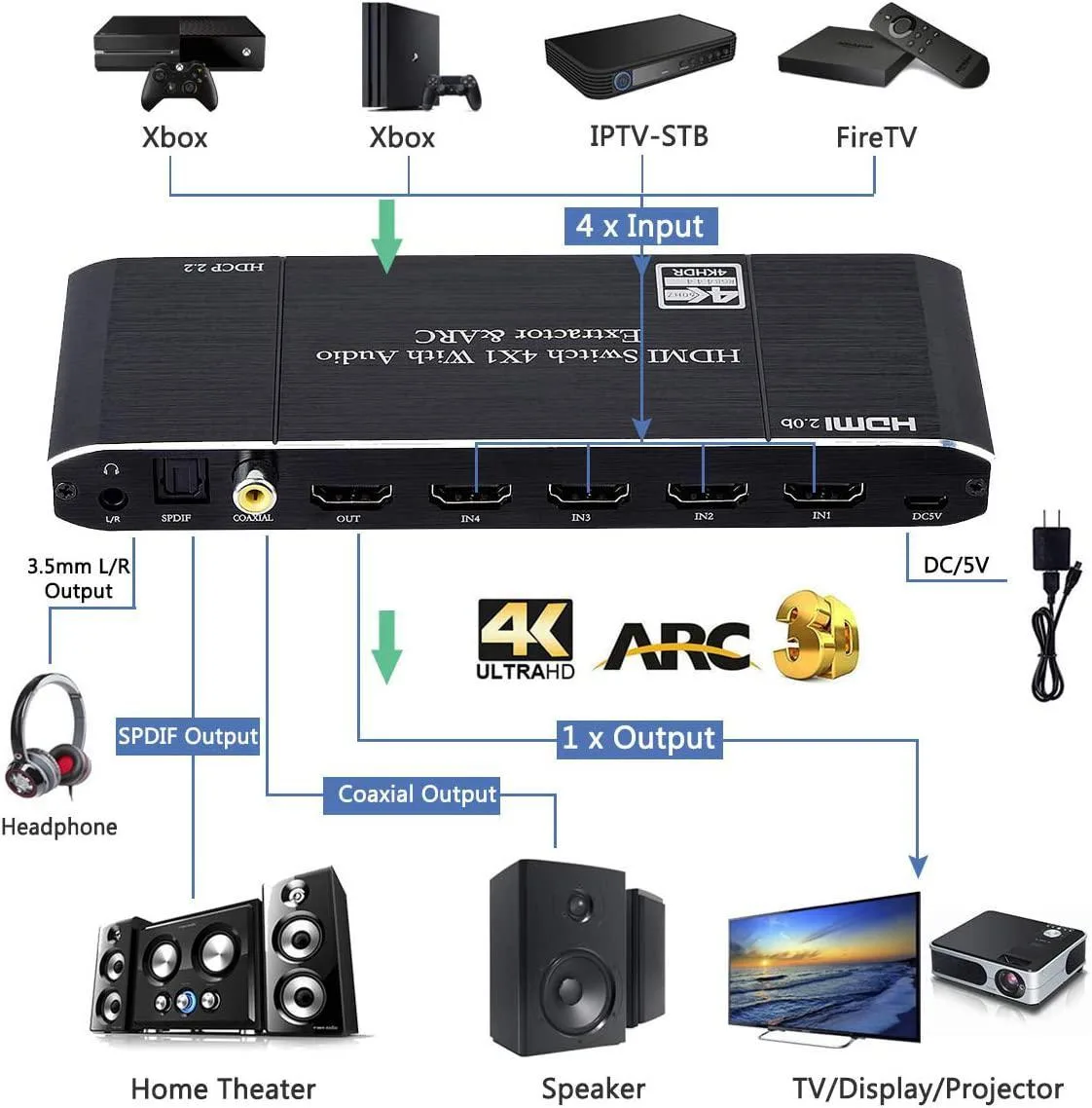

The unit measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces, fitting easily on a shelf or behind a display. Four HDMI inputs and one HDMI output use standard Type A connectors; optical, coaxial and 3.5 mm jacks sit alongside for audio routing. A 5 V 1 A DC adapter powers the switch.

HDMI 2.0b bandwidth limits cable length at 4K 60 Hz

Maximum bandwidth is 18.5 Gbps at 600 MHz, compliant with HDMI 2.0b and HDCP 2.2. At 4K 60 Hz cables should not exceed three metres; at 4K 30 Hz they can reach five metres. Deep colour up to 36 bit per channel is supported, but DVI signals are not compatible.

Highlights

  • Connect four HDMI sources to one display with 4K 60 Hz support
  • Extract audio via optical, coaxial or 3.5 mm jack with ARC function
  • Switch inputs instantly using the included IR remote control
  • Maintains 18 Gbps bandwidth and 36-bit deep colour for HDR content
  • Compact 5.91 x 2.36 x 0.79 inch metal chassis fits any setup

Specifications

BrandWRIARICH
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What HDMI standard and bandwidth does the OZQ9 use, and what resolution does that limit me to?

It complies with HDMI 2.0b and 18.5 Gbps bandwidth, capping output at 4K@60Hz with 36-bit deep colour.

What physical space and power does the switch need to sit on a shelf?

The unit measures 5.91 x 2.36 x 0.79 inches, weighs 11.9 ounces, and requires the included 5 V 1 A DC adapter.

How do I connect sources and audio gear, and which step do people miss?

Plug up to four sources into the HDMI inputs, run the HDMI output to the display, connect Toslink, coaxial or 3.5 mm for audio, then power the unit before switching — the DC adapter must be connected first or the switch will not pass a signal.
