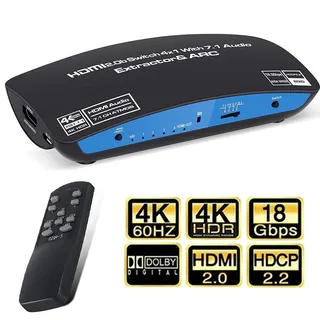

Small black rectangular HDMI switch with four inputs and one output

WRIARICH

WRIARICH OZQ9-1 4K@60Hz 4x1 HDMI Switch Audio Extractor

SKU CH-DQT5-Y3YPZ

A four-input HDMI switch passes 4K@60Hz video while extracting 7.1-channel Atmos, 5.1 optical or stereo audio to external speakers

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz switching
  • Extract immersive 7.1CH Atmos audio via HDMI output
  • Send 5.1CH surround sound through optical SPDIF port
  • Output stereo audio to speakers using 3.5mm auxiliary jack
  • Support HDR10 and HDCP 2.2 for protected 4K content

4K@60Hz HDMI Switch

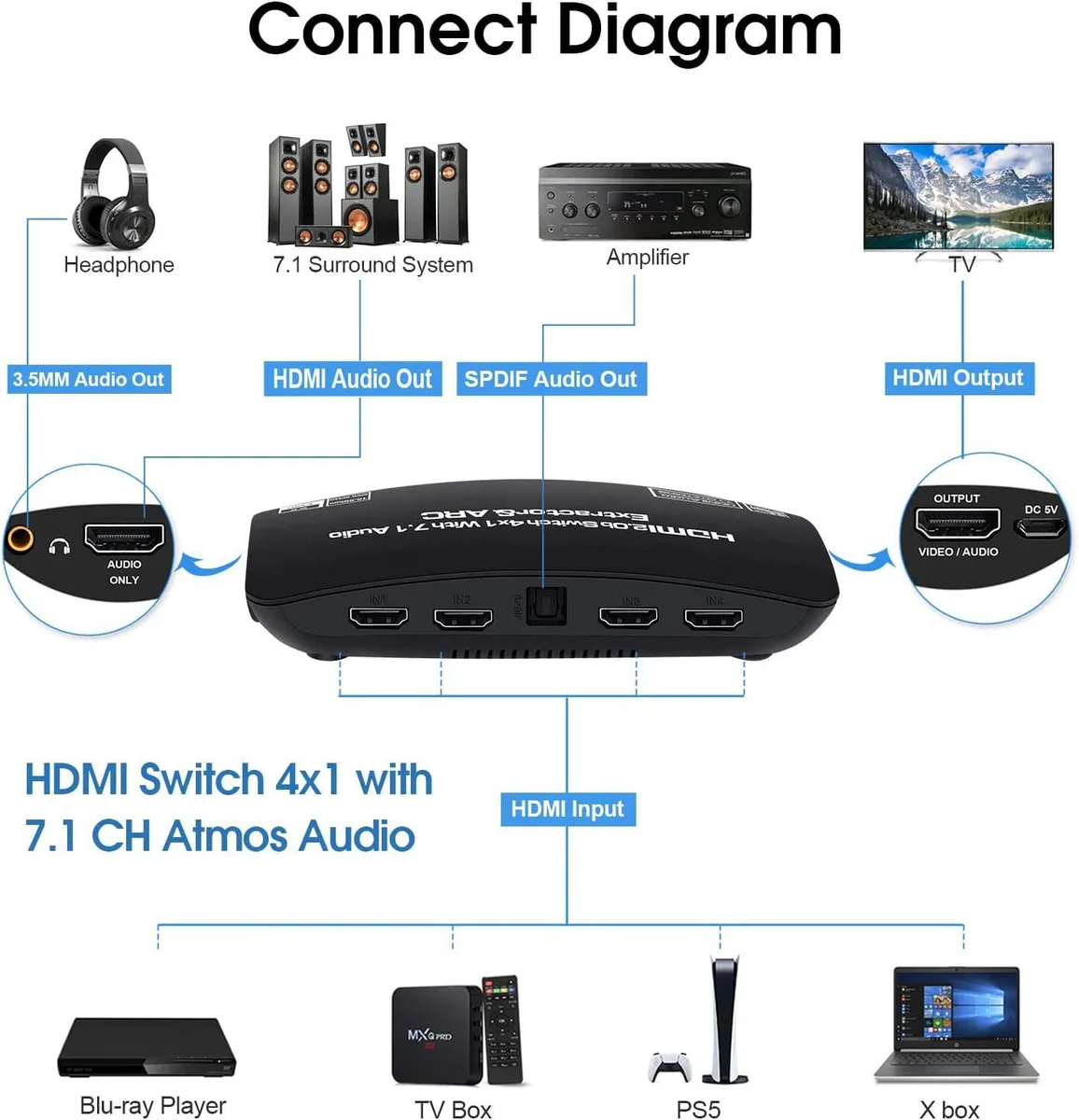

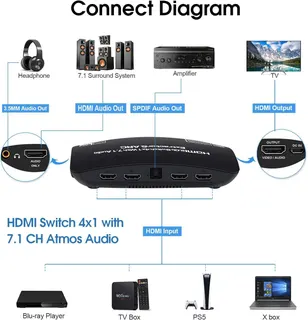

The WRIARICH OZQ9-1 connects four HDMI sources to one display at 4K@60Hz and extracts audio to HDMI 7.1CH ATMOS, optical SPDIF or 3.5mm analogue outputs. It supports HDR10, RGB 8:8:8 and HDCP 2.2 over an 18.5Gbps bandwidth. A remote control and 5V power adapter are included.

Home cinema and multi-source setups

This switch suits viewers who need to route several 4K@60Hz devices such as consoles, streamers or players to a single TV or projector while sending multichannel sound to a soundbar or AV receiver. It does not suit installations that require 4K at higher refresh rates, 8K resolution or more than four inputs.

Audio extraction formats

The optical SPDIF output carries Dolby Digital or DTS 5.1CH and PCM 2.0, while the 3.5mm jack outputs PCM 2.0 only; the HDMI output passes 7.1CH ATMOS, TrueHD, DTS:X and other listed formats. This difference decides whether your speaker system can receive the surround mix you need.

Highlights

  • Connect four sources to one display with 4K@60Hz switching
  • Extract immersive 7.1CH Atmos audio via HDMI output
  • Send 5.1CH surround sound through optical SPDIF port
  • Output stereo audio to speakers using 3.5mm auxiliary jack
  • Support HDR10 and HDCP 2.2 for protected 4K content

Specifications

BrandWRIARICH
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor
This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

Should I pick the 4-port model or a smaller switch for my setup?

This unit provides four HDMI inputs and one HDMI output, letting you connect up to four source devices to a single display while extracting audio to 7.1CH ATMOS, optical SPDIF or 3.5mm stereo.

What does the 4K@60Hz rating mean when I plug it into my TV?

The switch passes video at up to 4K resolution at 60Hz with 18.5Gbps bandwidth, supporting HDR10 and RGB 8:8:8 colour for full-quality playback on a compatible display.

How does the HDMI 2.0b interface limit the audio formats I can send to my soundbar?

HDMI 2.0b with HDCP 2.2 carries Dolby Atmos 7.1CH, Dolby TrueHD, DTS:X and DTS-HD Master Audio on the HDMI output, while optical is limited to Dolby Digital or DTS 5.1CH and PCM 2.0, and the 3.5mm jack outputs PCM 2.0 only.
