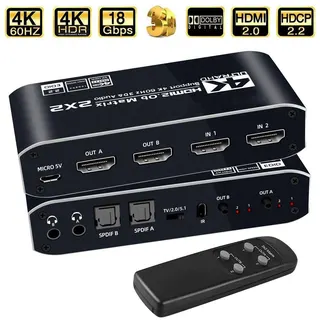

Black rectangular HDMI matrix switch with multiple ports and remote control

WRIARICH

WRIARICH OZJ6 HDMI 2x2 Matrix Switch 4K 60Hz Audio Extractor Remote Control

SKU CH-5H33-Q8X62

Routes two HDMI sources to two displays at 4K 60 Hz with audio extraction via SPDIF and 3.5 mm, controlled by IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • Delivers 4K 60 Hz video with 18.5 Gbps bandwidth
  • Extracts audio via SPDIF and 3.5 mm outputs
  • Controls switching from across the room with IR remote
  • Handles deep colour up to 48 bit for accurate reproduction

2×2 HDMI matrix for multi-display routing

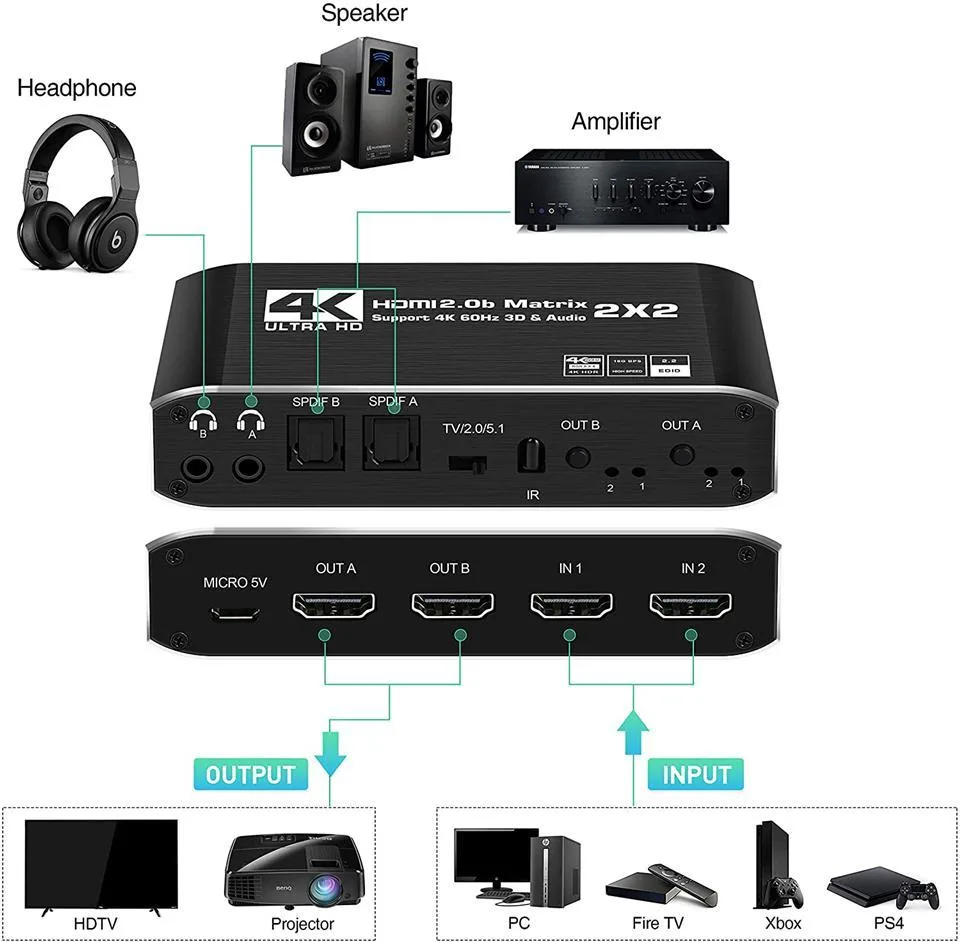

The WRIARICH OZJ6 is a 2×2 HDMI matrix switch that routes two sources to two displays independently. It suits home-theatre, conference-room and digital-signage installations where each screen must show a different source at the same time.

Bandwidth ceiling and cable reach

The HDMI 2.0b interface caps throughput at 18.5 Gbps with a TMDS clock up to 600 MHz, limiting 4K signals to 60 Hz and 4:4:4 colour sampling. Standard AWG26 cables are reliable only to 10 m at this data rate; longer runs require active or fibre cables not supplied with the unit.

Desktop install with IR and EDID quirks

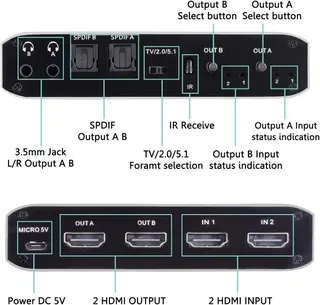

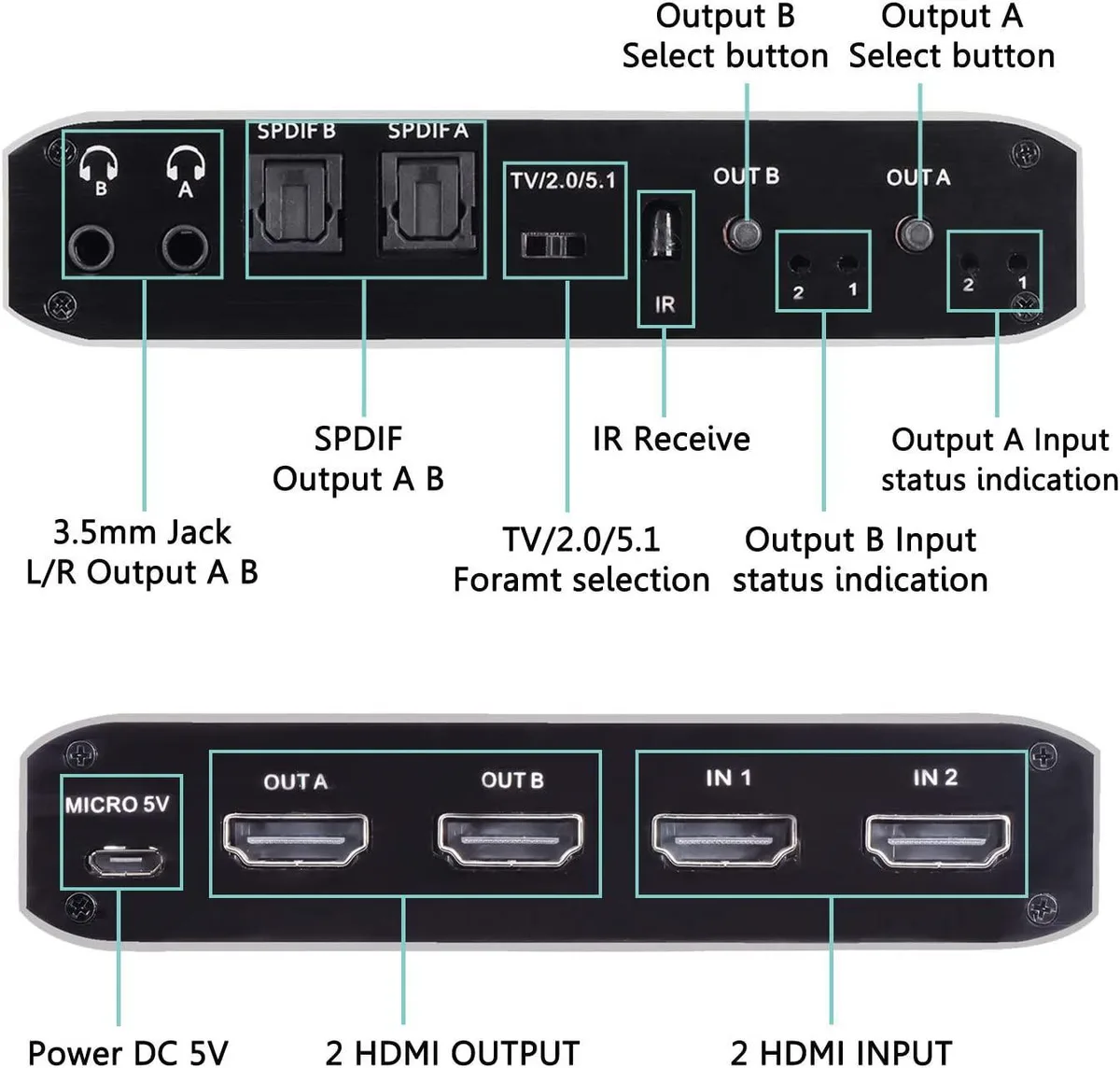

The compact metal enclosure sits on a shelf and connects via four HDMI ports plus SPDIF and 3.5 mm audio outputs. IR remote switching works line-of-sight; EDID handshake can stall if sources power up after the matrix, so power the switch first. Audio extraction is fixed to LPCM 5.1, DTS 5.1 or Dolby AC3 — multi-channel formats beyond these are not supported.

Highlights

  • Routes two sources to two displays independently
  • Delivers 4K 60 Hz video with 18.5 Gbps bandwidth
  • Extracts audio via SPDIF and 3.5 mm outputs
  • Controls switching from across the room with IR remote
  • Handles deep colour up to 48 bit for accurate reproduction

Specifications

BrandWRIARICH
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Which OZJ6 variant should I pick for a dual-source, dual-display setup?

The OZJ6 is a single 2×2 matrix model with two HDMI inputs and two HDMI outputs, so one unit handles both sources and both displays.

What does the 18.5 Gbps bandwidth deliver on a 4K 60 Hz screen?

It carries full 4K at 60 Hz with 8/10/12/24/32/48-bit deep colour and HDR10, staying within the HDMI 2.0b limit.

How do the HDMI 2.0b and HDCP 2.2 specs limit what I can connect?

They cap video at 4K 60 Hz 18.5 Gbps and require HDCP 2.2-compliant sources and sinks for protected 4K content.
