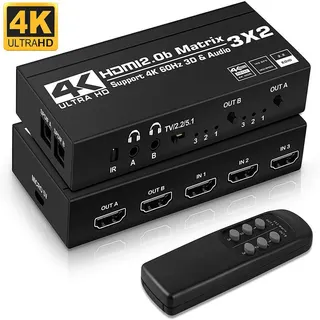

Black rectangular HDMI matrix switch with three inputs and two outputs

WRIARICH

WRIARICH OZJ5 HDMI Matrix 3x2 4K@60Hz HDR10 Audio Extract

SKU CH-VDY8-7G0VR

Routes three 4K HDR sources to two displays with independent audio extraction via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Connect three 4K sources to two displays with 4K@60Hz HDR10 support
  • Extract audio via optical SPDIF or 3.5mm stereo from any HDMI input
  • Switch or split sources independently using IR remote or front-panel buttons
  • Built-in downscaler converts 4K to 1080p for mixed-resolution setups
  • 5Gbps bandwidth handles 4:4:4 colour and Dolby Atmos pass-through

WRIARICH OZJ5 3x2 HDMI Matrix

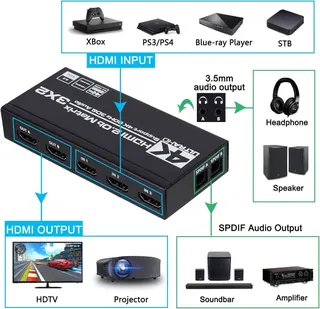

This HDMI matrix switch connects three 4K HDR sources to two displays and extracts audio via SPDIF optical or 3.5 mm stereo outputs. It supports resolutions up to 3840 x 2160 at 60 Hz with HDR10 and 18.5 Gbps bandwidth. Control is handled by an IR remote or front-panel buttons. The unit ships new in a black metal enclosure measuring 5.91 x 2.36 x 0.79 inches.

Installation and common issues

Connect the included DC 5 V power supply, then attach up to three HDMI sources and two displays using cables no longer than 10 metres. Use the remote or front button to route any input to either output independently. The downscaler automatically converts a 4K signal to 1080p on a display that cannot handle 2160p. Handshake failures usually trace to cables exceeding the 10-metre limit or sources sending HDCP 2.2 content to non-compliant sinks.

Before you order

Verify that each source can output 4K at 60 Hz and that both target displays accept the same resolution or 1080p. Confirm you have three HDMI cables for the inputs and two for the outputs, each within the 10-metre maximum. Ensure a free power outlet for the 5 V 600 mA adapter. The extractor provides SPDIF and 3.5 mm audio; check that your sound system matches one of those connectors.

Highlights

  • Connect three 4K sources to two displays with 4K@60Hz HDR10 support
  • Extract audio via optical SPDIF or 3.5mm stereo from any HDMI input
  • Switch or split sources independently using IR remote or front-panel buttons
  • Built-in downscaler converts 4K to 1080p for mixed-resolution setups
  • 5Gbps bandwidth handles 4:4:4 colour and Dolby Atmos pass-through

Specifications

BrandWRIARICH
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I confirm the matrix is passing 4K@60Hz HDR10 correctly after connecting my sources and displays?

Verify each display shows 3840x2160 at 60 Hz with HDR active in its on-screen menu; the front-panel LEDs should indicate active inputs and both outputs without flicker.

What cables and accessories are included in the box versus what I must provide?

The unit ships with the matrix, an IR remote and a DC 5 V power supply; you must supply three HDMI source cables and two HDMI display cables up to 10 m AWG26.

Should I choose a different version if I need more than three inputs or additional audio formats?

This OZJ5 model is a fixed 3×2 configuration with SPDIF and 3.5 mm stereo extraction; no other input-count or audio-option variants are offered for this series.
