Black rectangular HDMI matrix switch with front ports and IR sensor

WRIARICH

WRIARICH OZJ5 4K HDMI Matrix Switch 3x2 with Audio Extractor

SKU CH-WHFE-Q2DFK

A 3×2 HDMI matrix routes three 4K sources to two displays while extracting audio via optical and 3.5 mm outputs, controlled by IR remote or front-panel buttons

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Route three 4K sources to two displays independently
  • Extract audio via optical SPDIF or 3.5 mm stereo
  • Switch inputs with IR remote or front panel buttons
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Compact 170 × 56 × 24 mm metal chassis

3x2 HDMI Matrix for Multi-Source Setups

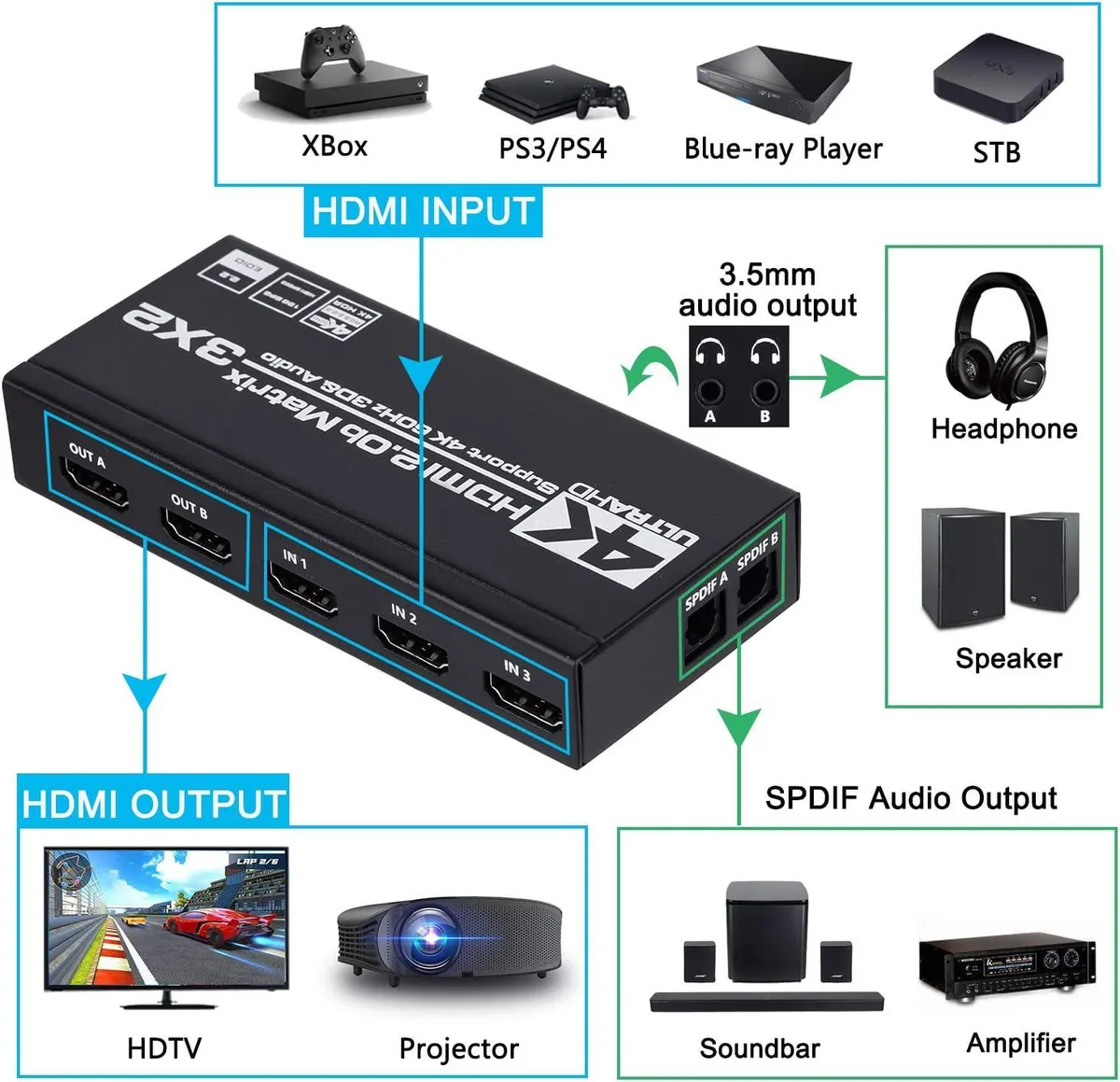

The WRIARICH OZJ5 routes three HDMI sources to two independent displays, letting each screen show the same or a different 4K signal. It suits home-theatre owners, presenters or installers who need simultaneous distribution without swapping cables. Buyers who require more than three inputs or additional HDMI outputs will need a larger matrix.

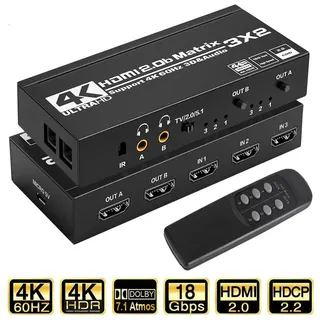

Metal Chassis with Front Buttons and IR Sensor

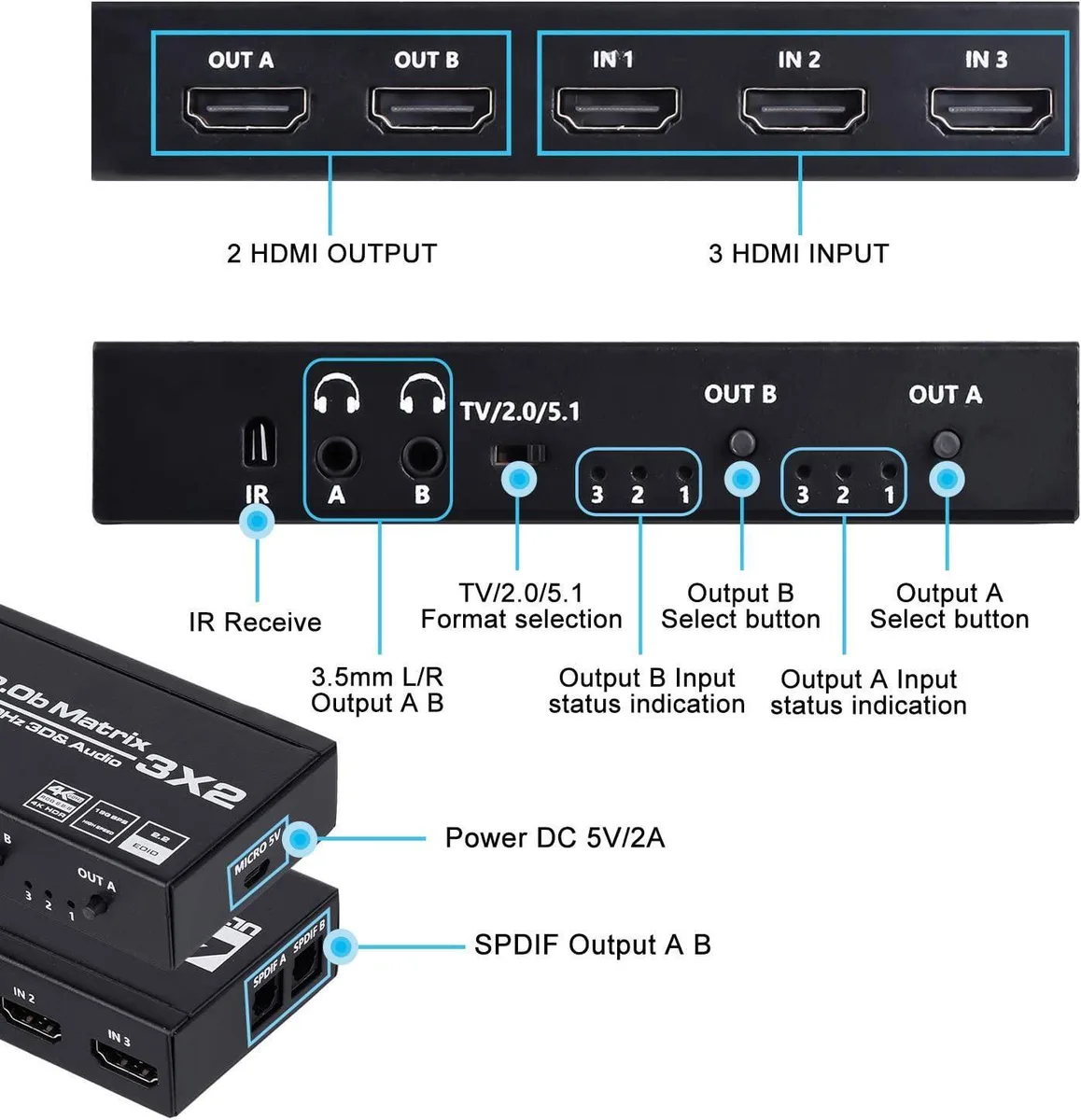

The black enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, fitting neatly on a shelf or in a rack. Three HDMI inputs and two HDMI outputs sit on the rear alongside two Toslink ports and two 3.5 mm stereo jacks for extracted audio. Front-panel buttons give direct switching, while the IR window works with the supplied remote for control from across the room.

Remote and DC Adapter Included for Immediate Use

A handheld IR remote and a 5 V DC power supply ship in the box, so the matrix is operational once sources and displays are connected. The remote duplicates the front-panel switching and audio-routing functions, removing the need to reach the unit during a presentation or movie night. No configuration software or firmware tools are bundled.

Highlights

  • Route three 4K sources to two displays independently
  • Extract audio via optical SPDIF or 3.5 mm stereo
  • Switch inputs with IR remote or front panel buttons
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Compact 170 × 56 × 24 mm metal chassis

Specifications

BrandWRIARICH
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What bandwidth does the HDMI 2.0b interface on the OZJ5 support?

The HDMI 2.0b interface supports 18.5Gbps bandwidth with a TMDS clock up to 600MHz, enabling 4K@60Hz resolution.

What are the physical dimensions and weight of the OZJ5 matrix switch?

The unit measures 5.91 x 2.36 x 0.79 inches (170 x 56 x 24mm) and weighs 11.9 ounces.

How is the OZJ5 powered and what is its maximum current draw?

It requires a DC 5V power supply and draws a maximum working current of 600mA.
