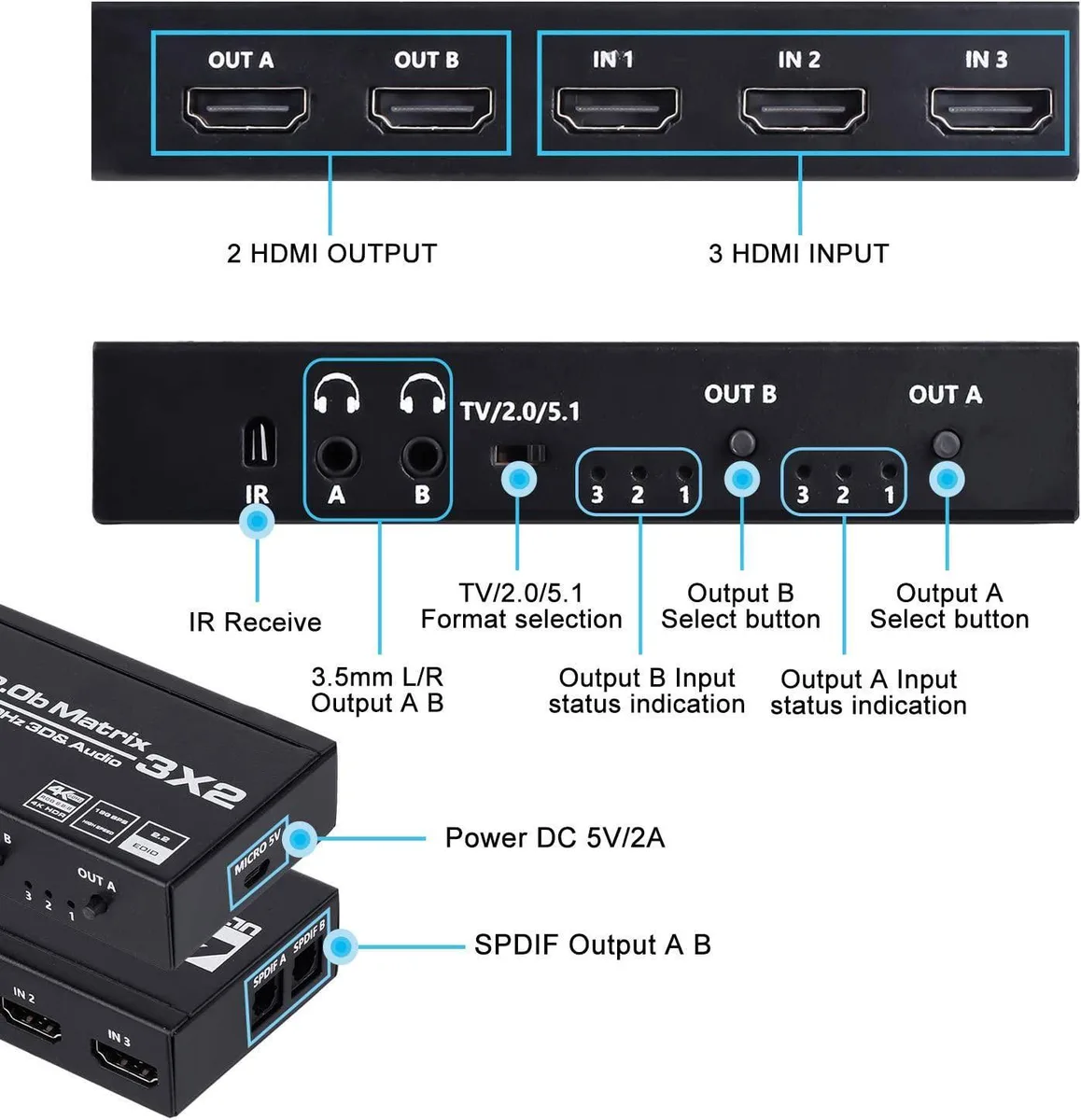

Black rectangular box with three HDMI inputs and two HDMI outputs on the front, IR sensor and power port on the side

WRIARICH

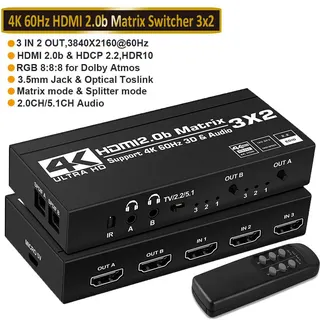

WRIARICH OZJ5 3x2 HDMI Matrix Switch 4K@60Hz 18.5Gbps Black

SKU CH-27B7-TX34P

Routes three 4K sources to two displays at 18.5 Gbps with IR remote and audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes

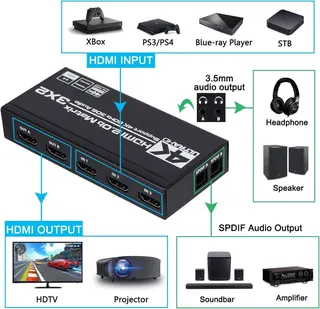

  • Connect three 4K sources to two displays with 3x2 matrix switching
  • Switch or split signals via IR remote or front-panel buttons
  • Extract audio through optical SPDIF or 3.5 mm stereo output
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 support
  • Operate reliably from -15 °C to +45 °C with DC 5 V power

3x2 HDMI Matrix Switch

The WRIARICH OZJ5 routes three HDMI sources to two displays, supporting 4K at 60 Hz with 18.5 Gbps bandwidth. It handles HDCP 2.2, deep colour up to 48 bit, and 3D video formats. Audio can be extracted through Toslink optical or 3.5 mm stereo outputs. Control is provided by an IR remote and front-panel buttons.

Home theatre and multi-room setups

This matrix suits users who need to send three 4K sources such as a media player, console, or PC to two separate screens or a screen plus a projector. It is not for installations that require more than three inputs or more than two simultaneous outputs. Buyers needing longer cable runs than 10 metres with standard AWG26 cables should plan for active extenders.

18.5 Gbps bandwidth at 4K 60 Hz

The 18.5 Gbps limit defines the maximum video performance; it carries 3840 x 2160 at 60 Hz with full colour depth. Signals that exceed this bandwidth, such as 4K at higher refresh rates or 8K content, will not pass through. Verify that every source and display in the chain operates within this ceiling before purchasing.

Highlights

  • Connect three 4K sources to two displays with 3x2 matrix switching
  • Switch or split signals via IR remote or front-panel buttons
  • Extract audio through optical SPDIF or 3.5 mm stereo output
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 support
  • Operate reliably from -15 °C to +45 °C with DC 5 V power

Specifications

BrandWRIARICH
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What source devices do I need to connect to the three HDMI inputs?

You need up to three HDMI source devices such as media players, game consoles or PCs that can output up to 3840×2160 at 60 Hz.

Will my older 1080p displays work with the two HDMI outputs?

Yes, the matrix supports 1080p and lower resolutions on either output while still passing 4K signals to the other display.

How can I confirm the switch is passing a 4K 60 Hz signal after setup?

Check the on-screen information menu of each connected display; it should report 3840×2160 at 60 Hz when a 4K source is selected.
