WRIARICH
WRIARICH OZJ3 2x2 HDMI Matrix Switch 4K@60Hz IR Remote
A 2×2 HDMI matrix routes two sources to two displays at 4K@60Hz with HDMI 2.0b, HDCP 1.4, HDR and 3D support via IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- MatrixYes
- AudioYes
- Routes two sources to two displays independently
- Supports 4K 60 Hz with 18.5 Gbps bandwidth
- Handles HDR and 3D video formats
- IR remote enables switching from a distance
- DC 5 V power with 600 mA max current
What this matrix switch does
The WRIARICH OZJ3 is a 2x2 HDMI matrix that routes two sources to two displays independently. It suits installers who need flexible signal distribution in meeting rooms, classrooms or home theatres without running new cables.
Thermals noise and power
The unit draws a maximum of 600 mA from its included DC 5 V supply, so heat output stays low in a closed cabinet. No fan is fitted, meaning operation is completely silent during normal use.
Bundled remote and cables
An IR remote is supplied for front-of-room switching between the two inputs and two outputs. The spec lists a maximum cable run of 10 m using AWG26 HDMI 2.0b leads, so longer runs need active or fibre cables.
Highlights
- Routes two sources to two displays independently
- Supports 4K 60 Hz with 18.5 Gbps bandwidth
- Handles HDR and 3D video formats
- IR remote enables switching from a distance
- DC 5 V power with 600 mA max current
Specifications
| Brand | WRIARICH |
|---|---|
| Series | OZJ3 |
| Model | OZJ3 |
| Part Number | OZJ3 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Product Type:HDMI Matrix 2x2. Interface Type: 2 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0, HDCP 1.4 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0 2 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS LPCM 7.1 audio format |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 2X2 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item

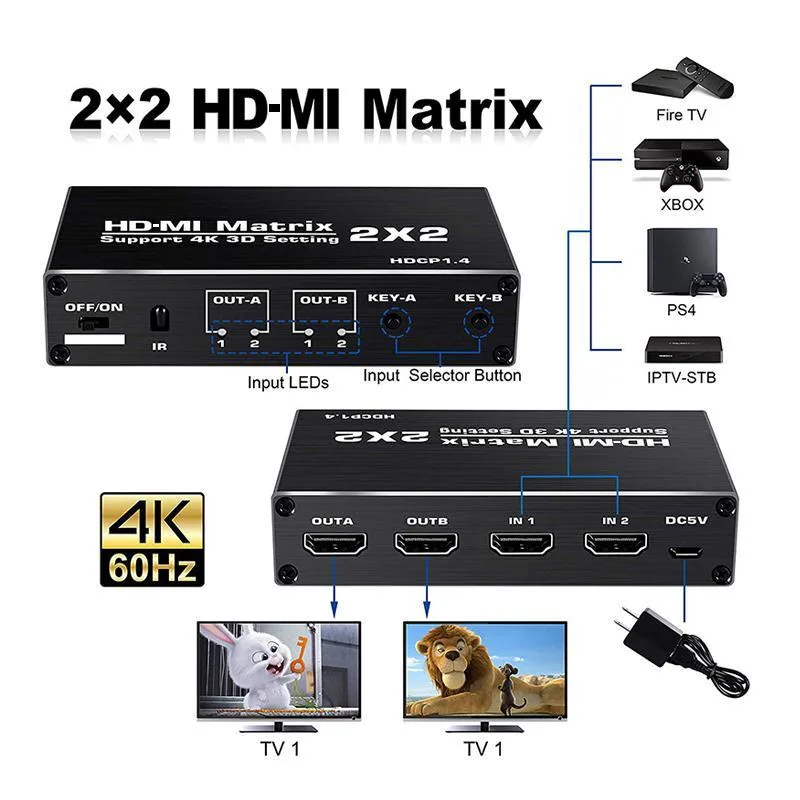

How do I install the OZJ3 matrix and which step do people miss?
Connect both HDMI sources to the two inputs and both displays to the two outputs, then plug the DC 5V supply into the 600mA port. The step often missed is confirming every cable is 10m or shorter AWG26 HDMI 2.0b standard cable for 4K@60Hz.
What maintenance or replacement will the OZJ3 need later?
The unit has no user-serviceable parts. If the DC 5V power adapter fails, replace it with an equivalent 600mA supply. Keep vents clear and operate within -15°C to +45°C to avoid thermal stress.
What limit appears first during sustained 4K@60Hz use?
The 18.5Gbps bandwidth ceiling and 600MHz TMDS clock are the first hard limits. Cable runs beyond 10m AWG26 or sources exceeding 3840x2160/60Hz 48-bit deep colour will drop signal before thermal limits at +45°C.
