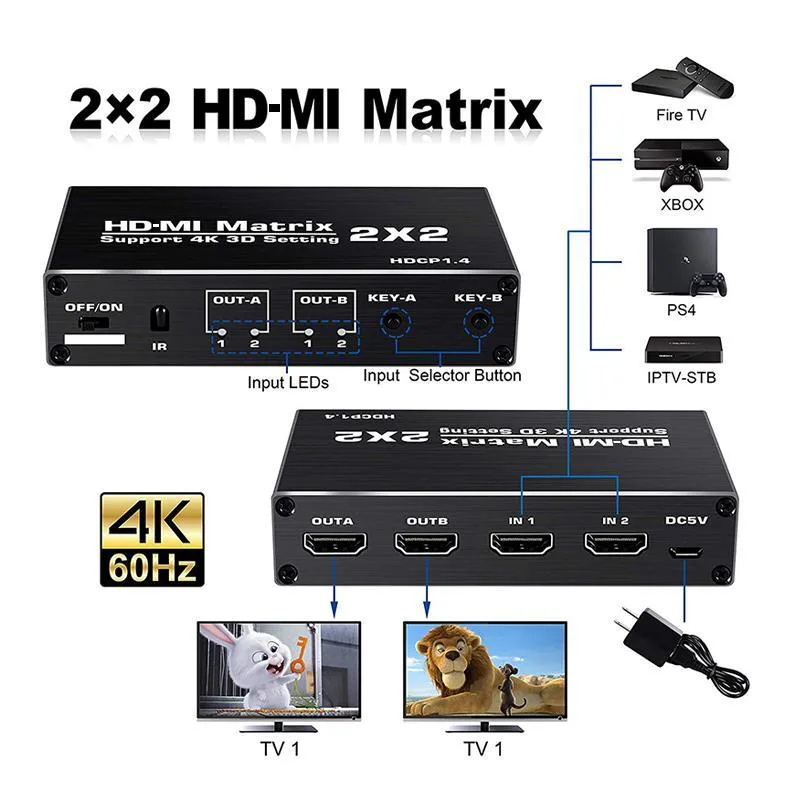

Black rectangular box with two HDMI inputs and two HDMI outputs

WRIARICH

WRIARICH OZJ3 2x2 HDMI Matrix Switch 4K 60Hz

SKU CH-D4PH-181YV

Routes two HDMI sources to two displays independently at 4K 60 Hz with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently
  • Supports 4K 60 Hz video at 18.5 Gbps bandwidth
  • HDMI 2.0b and HDCP 1.4 compliance built in

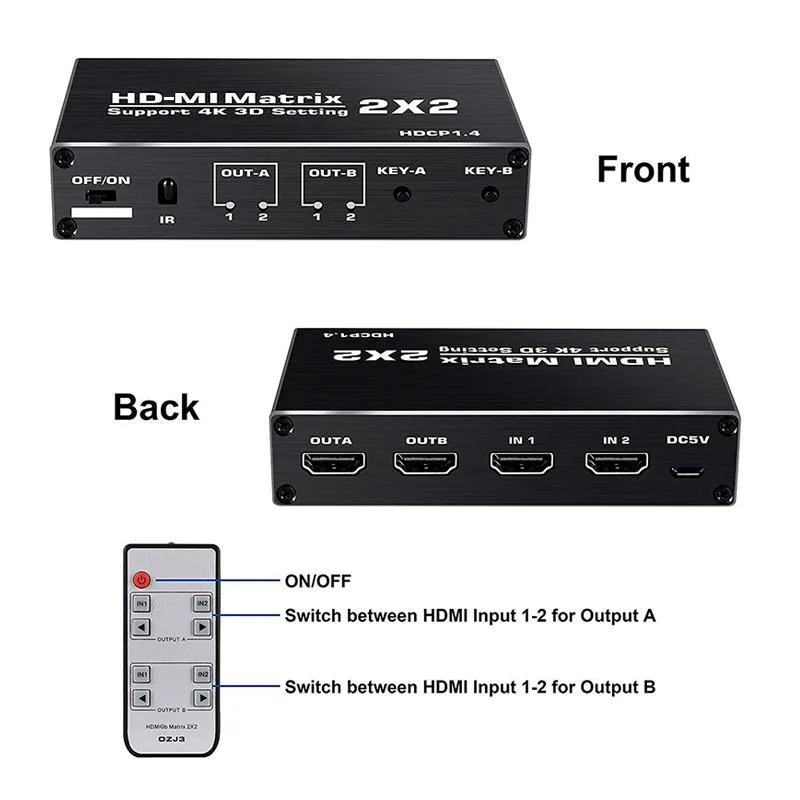

  • IR remote enables front-of-room source selection
  • Handles deep-colour formats up to 48-bit depth

2x2 HDMI Matrix Switch

The WRIARICH OZJ3 is a 2x2 HDMI matrix switch that routes two sources to two displays independently. It supports HDMI 2.0b and HDCP 2.2 with 18.5Gbps bandwidth. The unit handles 4K@60Hz resolution and deep colour up to 48-bit. An IR remote control is included for input selection.

Installers needing independent dual-display routing

This matrix suits installers who need to send two different 4K sources to two separate screens simultaneously. It is not for users who only need to view one source on one screen at a time. Buyers requiring more than two inputs or two outputs should look at larger matrix configurations. The 10m maximum cable length at 4K limits runs in larger venues.

18.5Gbps bandwidth for 4K@60Hz

The 18.5Gbps bandwidth determines support for 4K@60Hz 4:4:4 signals and deep colour depths up to 48-bit. Lower bandwidth switches will drop to 4K@30Hz or chroma subsampling. Verify that source devices and cables meet the HDMI 2.0b specification to achieve the stated performance. Power is supplied via an included DC 5V adapter.

Highlights

  • Routes two sources to two displays independently
  • Supports 4K 60 Hz video at 18.5 Gbps bandwidth
  • HDMI 2.0b and HDCP 1.4 compliance built in
  • IR remote enables front-of-room source selection
  • Handles deep-colour formats up to 48-bit depth

Specifications

BrandWRIARICH
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the DC 5 V power supply need replacing after extended use?

The unit draws up to 600 mA from the supplied DC 5 V adapter; if the adapter fails it can be swapped for any 5 V source rated at 600 mA or higher.

What is the longest cable run before the 4K 60 Hz signal degrades?

The specification lists a maximum of 10 m using AWG26 HDMI 2.0b cable for full 4K 60 Hz performance.

How hot does the chassis get when the matrix runs all day?

Operating temperature range is -15 °C to +45 °C, so the enclosure stays within that window during continuous operation.
