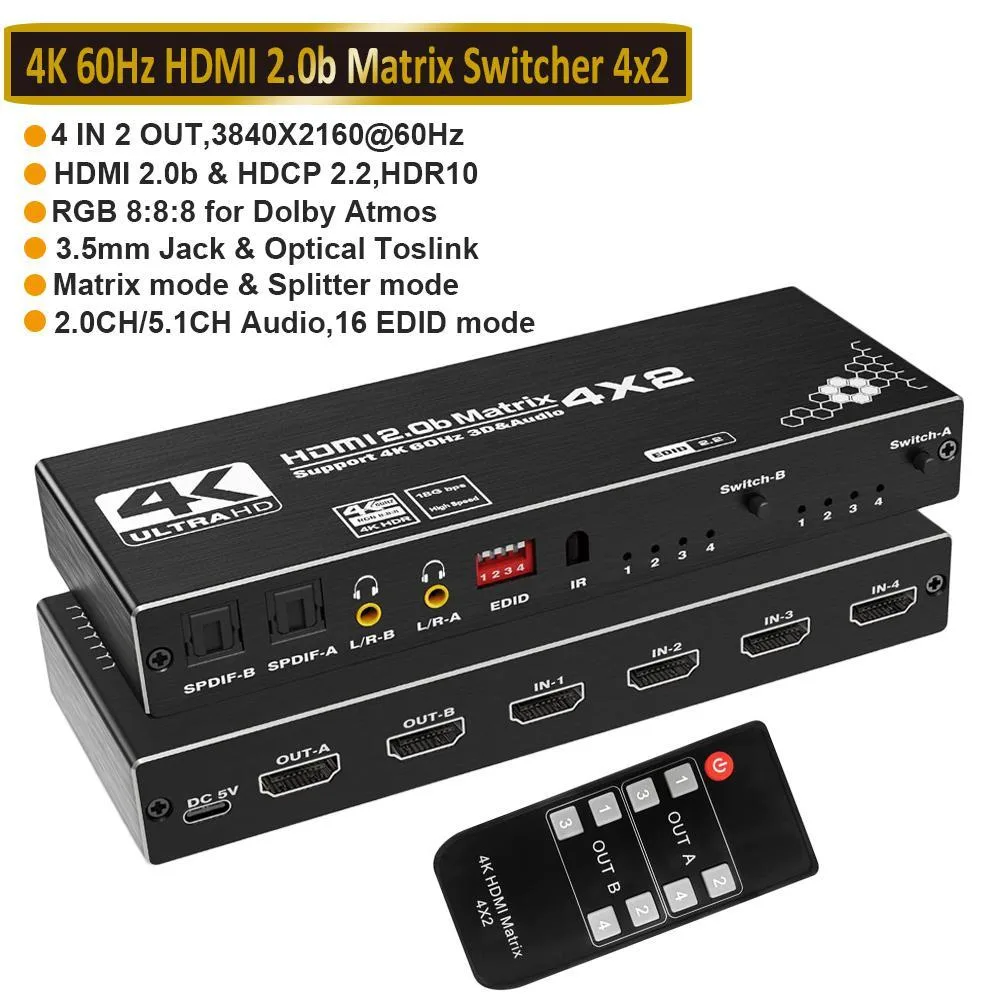

Black rectangular HDMI matrix switch, four inputs two outputs, IR remote included

WRIARICH

WRIARICH OZJ1 4x2 HDMI Matrix Switch with Audio

SKU CH-4DQT-0VRAV

Routes four HDMI sources to two displays at 4K 60 Hz with simultaneous optical and analogue audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Extracts audio via optical and 3.5 mm outputs simultaneously
  • Deep colour up to 48-bit for smooth gradients
  • Includes IR remote for convenient switching

4x2 HDMI Matrix Switch with Audio

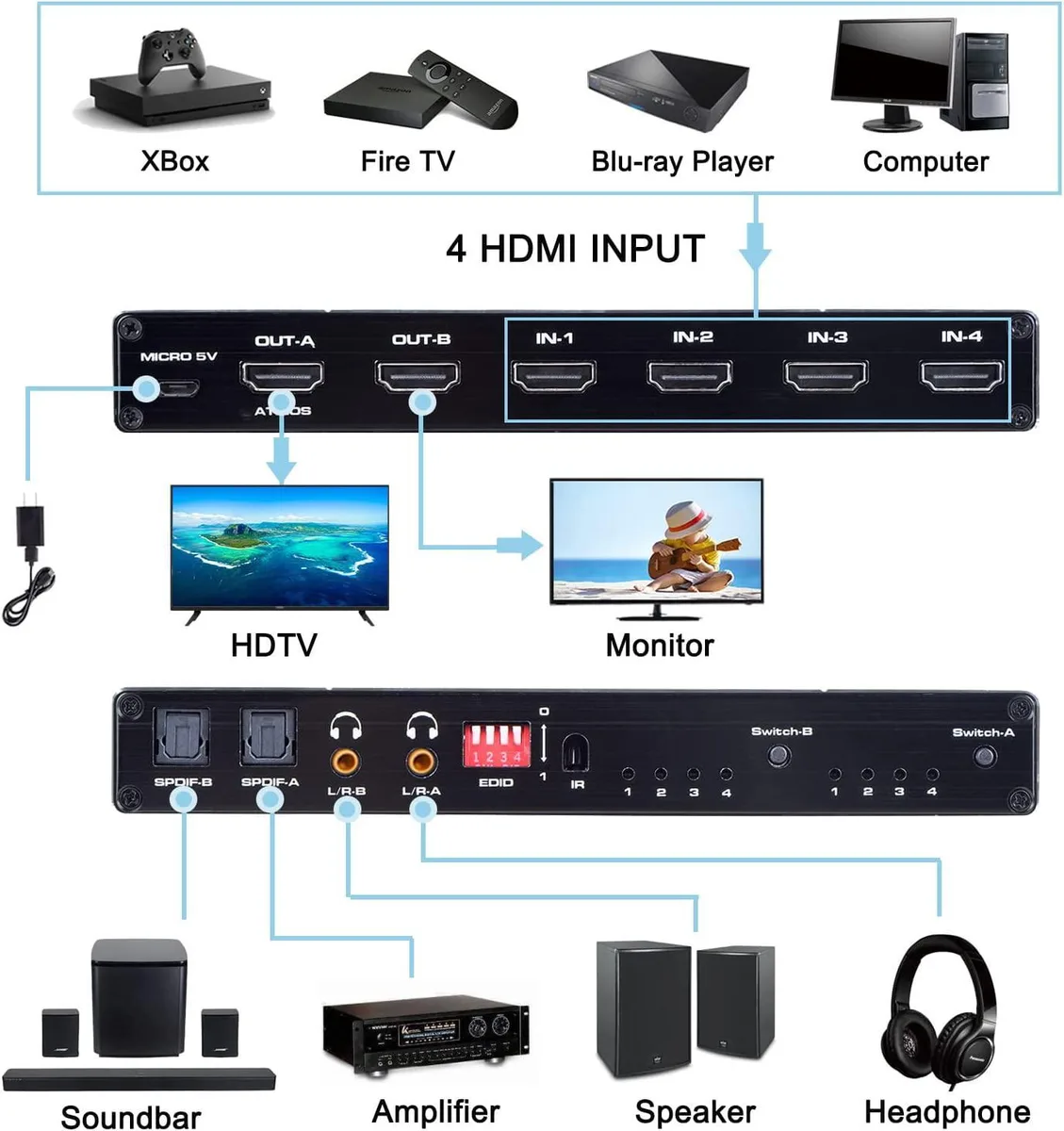

The WRIARICH OZJ1 is a 4-input, 2-output HDMI matrix switch that routes up to four sources to two displays simultaneously. It supports HDMI 2.0b with HDCP 2.2 and handles 4K resolution at 60 Hz. Audio is extracted through both 3.5 mm stereo and optical SPDIF outputs alongside the HDMI signal.

Home-theatre and multi-room installers

This unit suits installers who need independent source selection for two zones from a shared pool of four devices. It works well in meeting rooms, hotels or retail displays where mirrored or different content is required. Buyers who need more than two output zones or who require HDMI 2.1 bandwidth should look elsewhere.

18.5 Gbps bandwidth and 600 MHz TMDS clock

The 18.5 Gbps bandwidth and 600 MHz TMDS clock determine whether 4K 60 Hz 4:4:4 or deep-colour signals pass without compression. If the source exceeds this data rate, the switch will not transmit the full signal.

Highlights

  • Routes four sources to two displays independently
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Extracts audio via optical and 3.5 mm outputs simultaneously
  • Deep colour up to 48-bit for smooth gradients
  • Includes IR remote for convenient switching

Specifications

BrandWRIARICH
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.

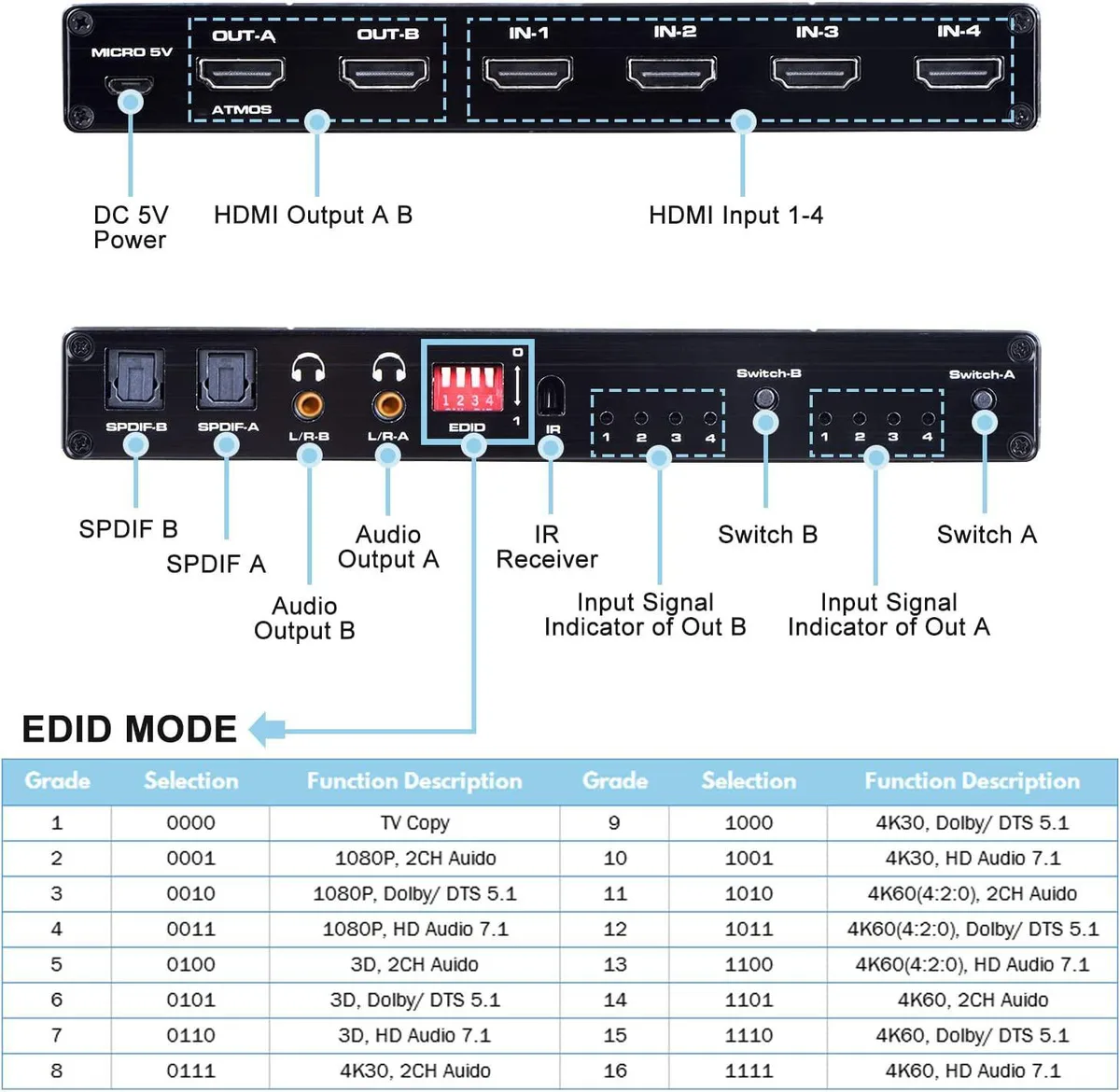

Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How deep a shelf or rack space do I need for the 5.91 x 2.36 x .79 inch chassis?

The unit measures 5.91 inches wide, 2.36 inches deep and .79 inches high, so allow at least 2.36 inches of depth plus cable bend radius behind the HDMI ports.

Which IR remote code set do I programme for the matrix, and where is the receiver window located?

Point the supplied IR remote at the front-panel sensor; the matrix switches inputs instantly with no additional code programming required.

When should I replace the external power adapter that ships with the OZJ1?

Replace the adapter if the matrix loses sync on both outputs simultaneously or the front LEDs stay dark while mains power is present.
