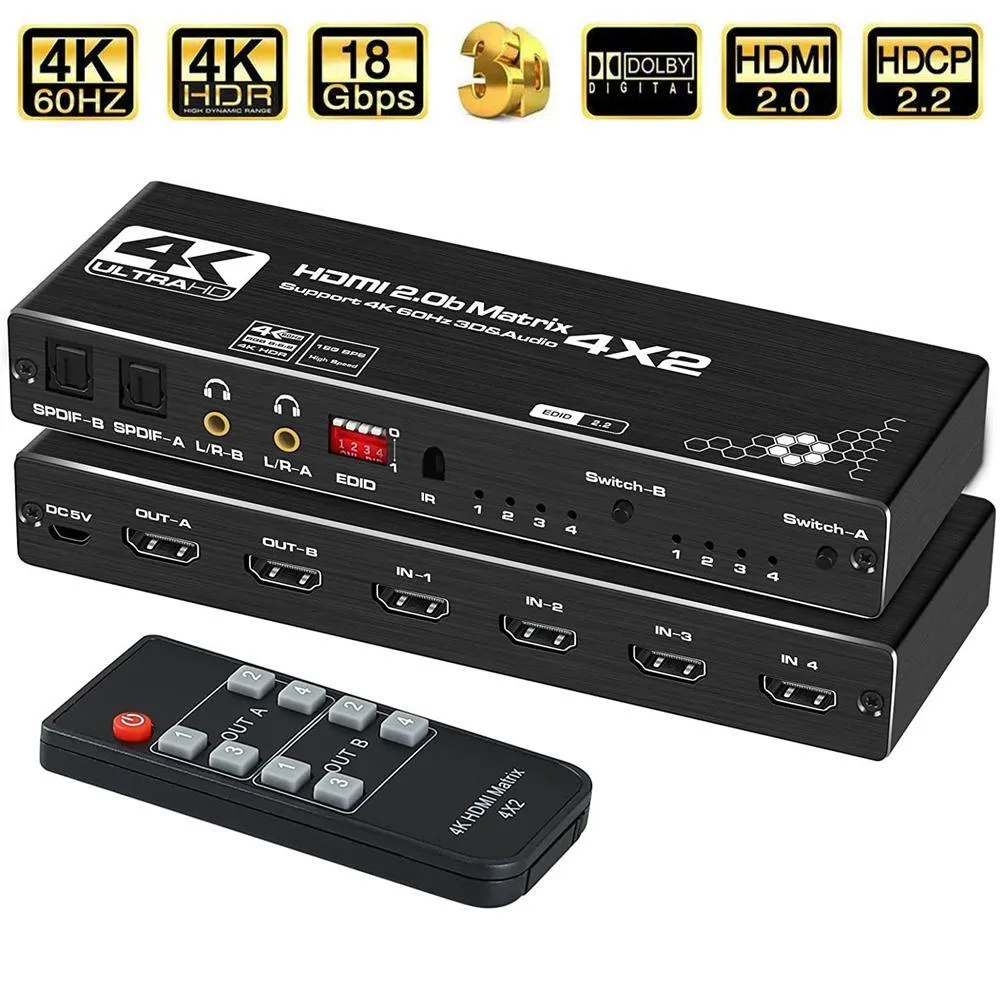

Black rectangular HDMI matrix switch with multiple ports on front and back

WRIARICH

WRIARICH OZJ1 4x2 HDMI Matrix Switch 4K@60Hz audio

SKU CH-VQP6-V36DS

Routes four HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDCP 2.2, 3D, deep colour and simultaneous HDMI, 3.5 mm and optical audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays independently
  • 4K 60 Hz 18.5 Gbps bandwidth for sharp video
  • HDMI 2.0b and HDCP 2.2 protect premium content
  • Optical, 3.5 mm and HDMI audio outputs together
  • IR remote and front-panel buttons simplify switching

4x2 HDMI Matrix Switch 4K

The WRIARICH OZJ1 routes four HDMI sources to two independent displays at up to 4K 60 Hz. It suits home-theatre owners, meeting-room installers and educators who need simultaneous or separate output paths. IR remote control simplifies source selection from a distance. The unit also extracts audio through SPDIF optical and 3.5 mm analogue jacks.

Passive cooling silent operation

No fan is present so the switch runs completely silent in normal use. Power draw is low enough for the supplied adapter without special cooling requirements. The compact metal enclosure dissipates heat passively during continuous 18.5 Gbps signal throughput. Operation remains stable across the supported 10 metre cable limit.

HDMI 2.0b 18.5 Gbps bandwidth

This single specification determines whether the matrix can transport 4K 60 Hz 4:4:4 or HDR content without compression. The 600 MHz TMDS clock and HDCP 2.2 compliance match current 4K source and sink requirements. Lower-bandwidth switches would force 30 Hz or chroma subsampling at 4K.

Highlights

  • Route four sources to two displays independently
  • 4K 60 Hz 18.5 Gbps bandwidth for sharp video
  • HDMI 2.0b and HDCP 2.2 protect premium content
  • Optical, 3.5 mm and HDMI audio outputs together
  • IR remote and front-panel buttons simplify switching

Specifications

BrandWRIARICH
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

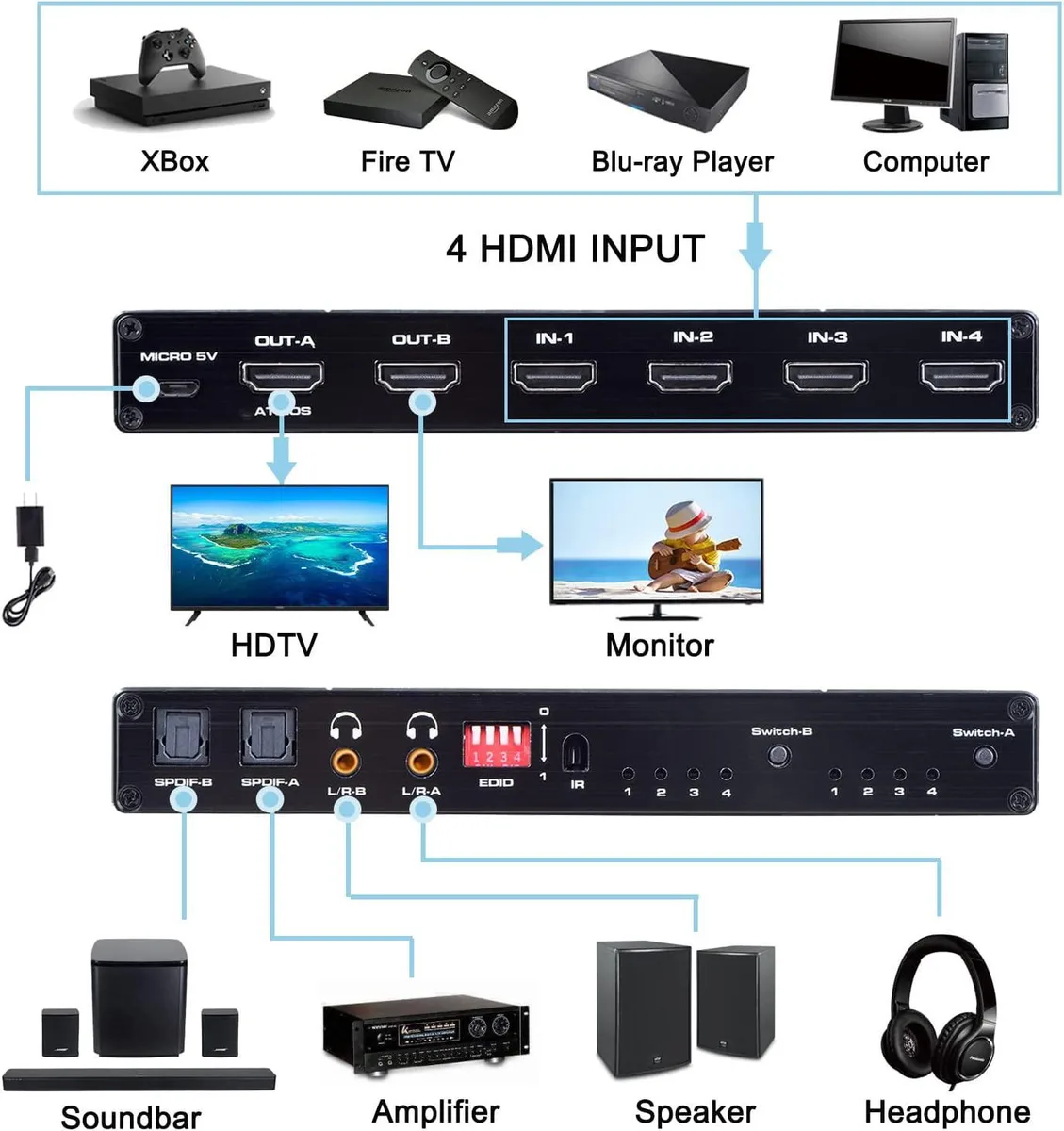

How do I connect four sources and two displays to the OZJ1 matrix, and which step do people often miss?

Plug each source into the four HDMI inputs and each display into the two HDMI outputs, then connect the included power supply to the port on the same side as the HDMI sockets; the step most often missed is powering the unit before switching sources.

What audio outputs might need attention or replacement over time on this matrix?

The box provides simultaneous HDMI audio, a 3.5 mm stereo jack and an optical SPDIF output; the 3.5 mm jack and optical port are the physical connectors most likely to wear with repeated cable changes.

What is the first limit I will hit when running 4K 60 Hz content continuously through the OZJ1?

The 18.5 Gbps bandwidth ceiling and the 10 metre maximum cable length for AWG26 HDMI 2.0b cables are the first constraints encountered under sustained 4K 60 Hz use.
