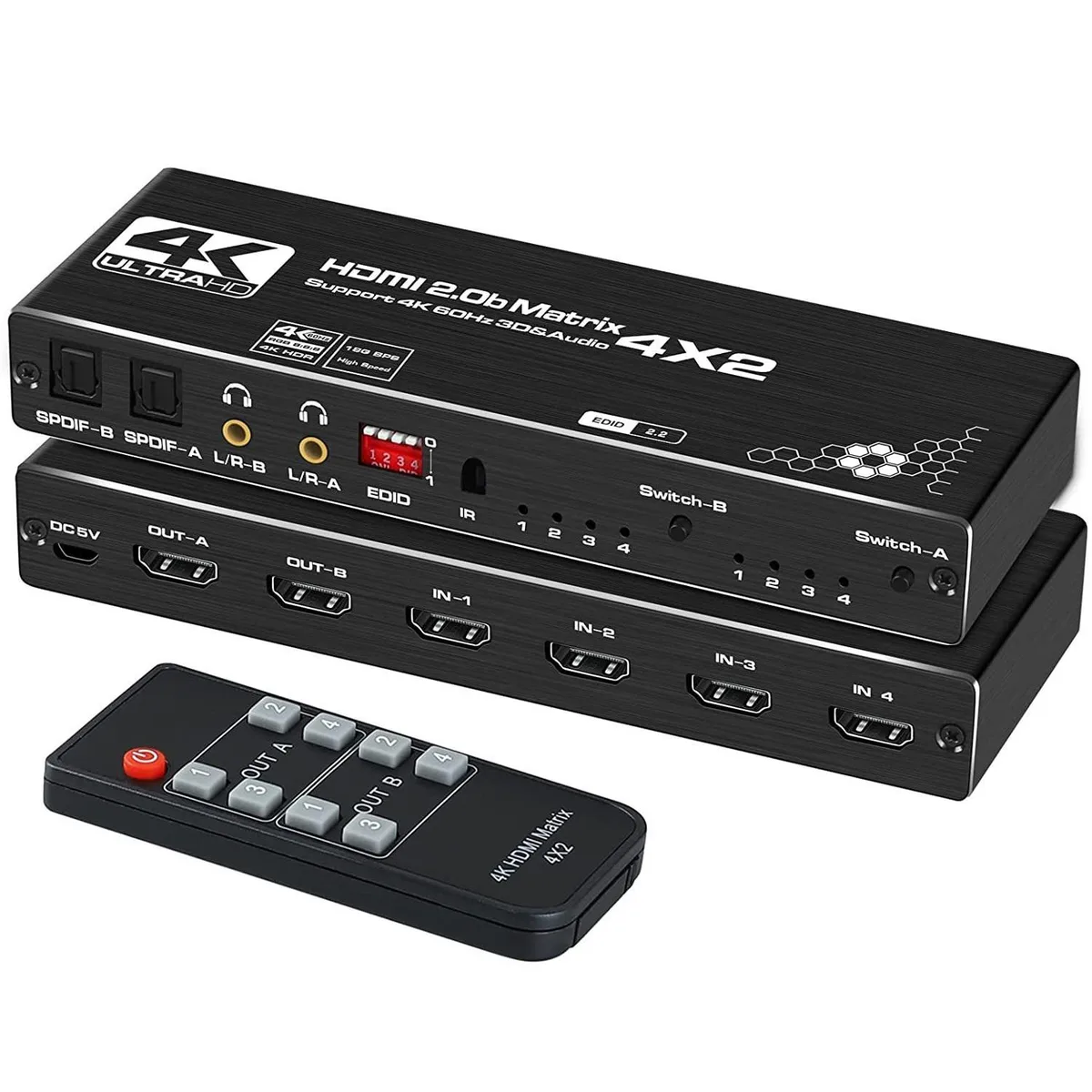

Black rectangular HDMI matrix switch with four inputs and two outputs

WRIARICH

WRIARICH OZJ1 4x2 HDMI Matrix Switch 4K 60Hz

SKU CH-W7PG-5N1VV

Routes four HDMI sources to two displays at 4K 60 Hz with IR remote, EDID, HDCP 2.2 and HDR10 support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Switch four sources to two displays independently
  • 4K 60 Hz via HDMI 2.0b and 18.5 Gbps bandwidth
  • HDCP 2.2 and HDR10 for protected 4K content
  • Audio de-embedded to 3.5 mm and optical simultaneously
  • IR remote included for front-of-room control

4x2 HDMI Matrix Switch for Multi-Source Setups

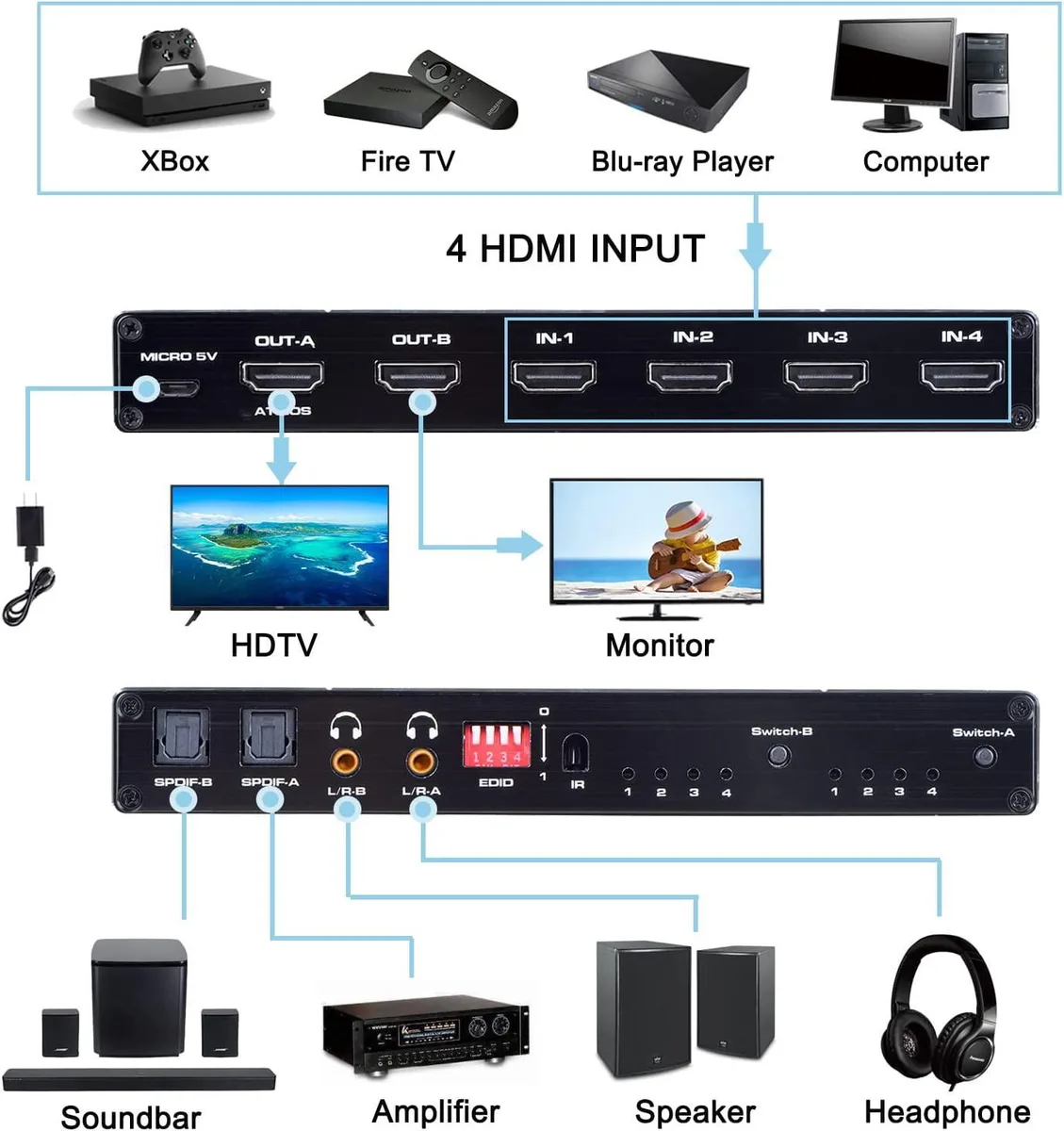

The WRIARICH OZJ1 routes four HDMI sources to two displays with independent switching. It supports 4K at 60 Hz, HDMI 2.0b, HDCP 2.2, HDR10 and 3D formats. Audio is extracted simultaneously through HDMI, a 3.5 mm jack and an optical output. The unit suits home theatres, offices, classrooms and commercial installations.

Simple Rack or Desktop Installation

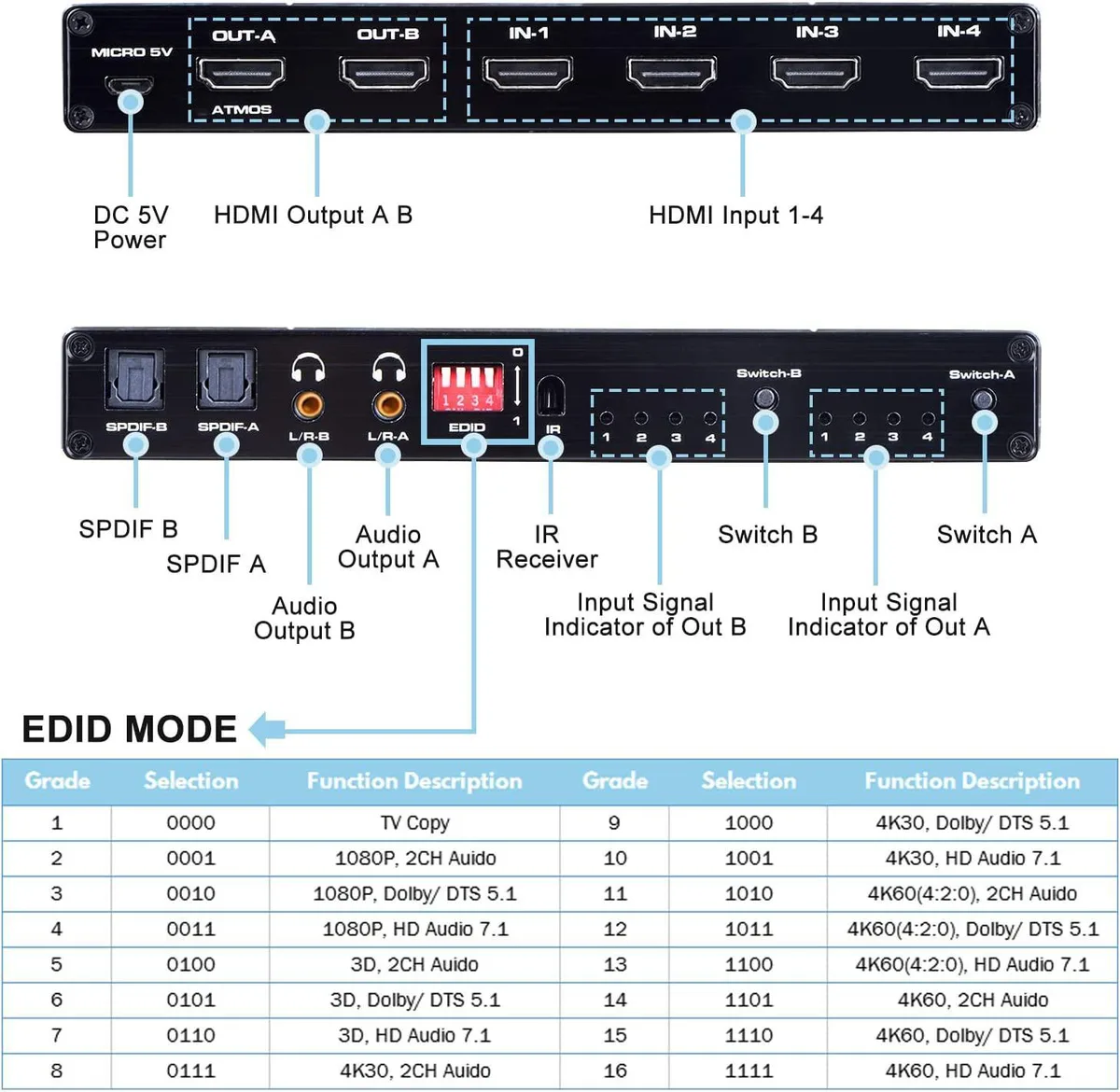

All four inputs, two outputs and the power connector sit on the same face for tidy cable runs. The matrix ships with an IR remote for source selection from a distance. EDID management is built in to maintain handshake stability. Use AWG26 HDMI cables no longer than 10 m for reliable 18.5 Gbps throughput at 600 MHz pixel clock.

Ideal for Installers Needing Dual-Display

This matrix fits users who must show any of four sources on either of two screens with audio breakout. It does not serve applications requiring more than two outputs, longer cable runs beyond 10 m, or bandwidth above 18.5 Gbps. Buyers needing larger matrices or fibre extension should consider other models.

Highlights

  • Switch four sources to two displays independently
  • 4K 60 Hz via HDMI 2.0b and 18.5 Gbps bandwidth
  • HDCP 2.2 and HDR10 for protected 4K content
  • Audio de-embedded to 3.5 mm and optical simultaneously
  • IR remote included for front-of-room control

Specifications

BrandWRIARICH
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How can I confirm the matrix is passing a 4K 60Hz signal correctly after connecting my sources and displays?

Check that each display shows 3840x2160 at 60Hz in its on-screen information menu, that HDR10 and 3D content play without dropouts, and that audio is audible simultaneously from the HDMI, 3.5 mm and optical outputs.

What cables and accessories are included with the OZJ1, and what must I provide myself?

The unit itself is supplied; you must supply up to four HDMI source cables and two HDMI display cables, each no longer than 10 metres using AWG26 HDMI 2.0b standard cable, plus any optical or 3.5 mm audio cables you wish to use.

The specs list deep-colour support up to 48-bit — which colour depth should I choose for my 4K 60Hz setup?

At 4K 60Hz the 18.5 Gbps bandwidth limit allows 8-bit or 10-bit colour; select 10-bit in your source device settings for HDR10 content, and reserve 12-bit or higher for lower-resolution or lower-refresh-rate signals.
