WRIARICH
WRIARICH OZJ1-1 4x2 HDMI Matrix Switch 4K@60Hz
Routes four 4K@60 Hz sources to two displays with IR remote, HDCP 2.2, HDR and simultaneous optical plus 3.5 mm audio extraction
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes

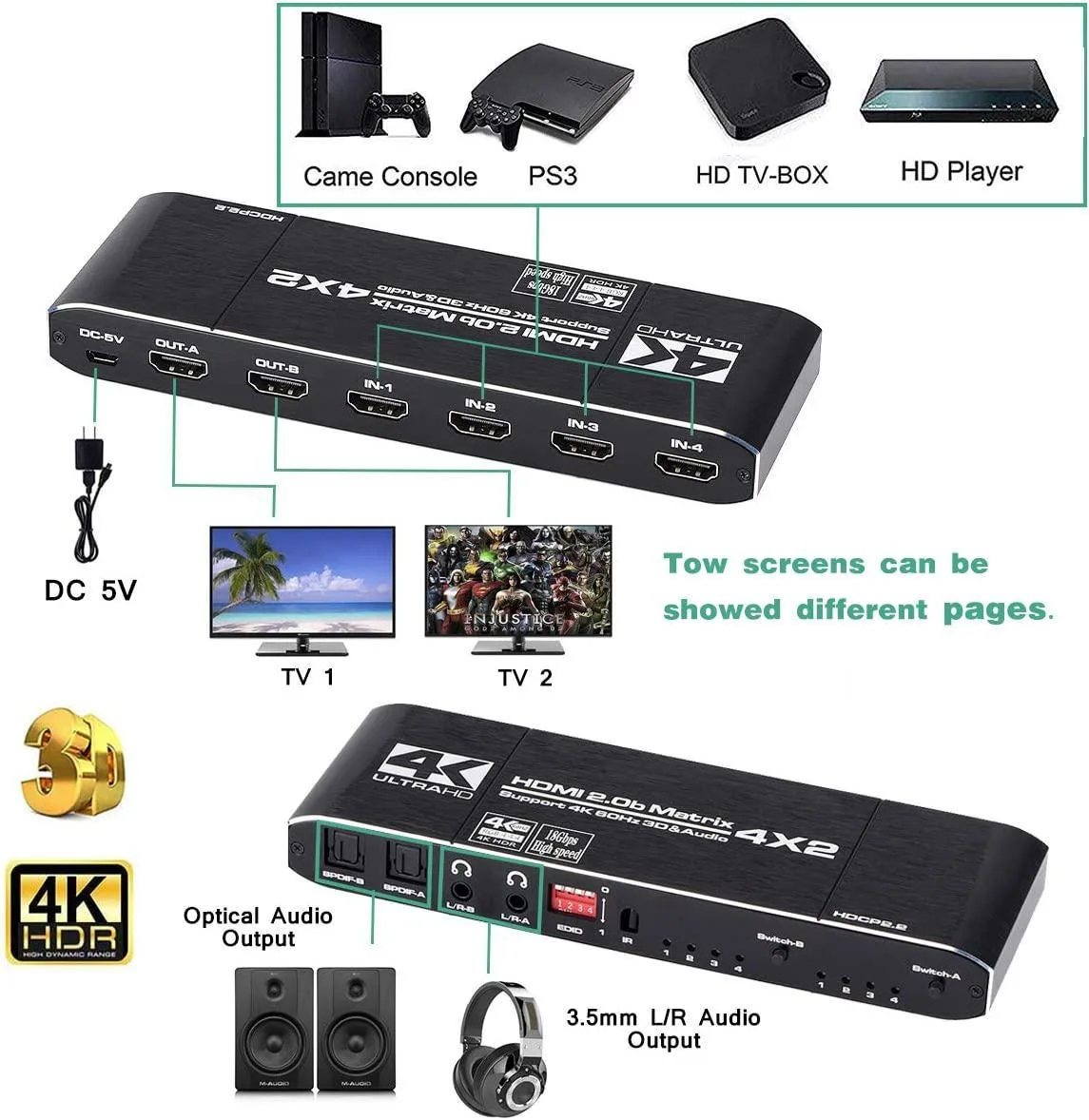

- Connect four 4K sources to two displays with matrix flexibility
- Switch or split signals independently via IR remote control
- Deliver 4K 60 Hz video at 18.5 Gbps bandwidth with HDR support
- Extract audio simultaneously through optical and 3.5 mm outputs
- Route 3D and deep-colour content up to 10 m cable runs
4x2 HDMI Matrix Switch 4K@60Hz
The WRIARICH OZJ1-1 routes four HDMI sources to two independent displays at up to 4K@60Hz. It supports HDMI 2.0b, HDCP 2.2, HDR10 and 3D video. Audio can be de-embedded simultaneously through a 3.5 mm jack and a Toslink optical output. An IR remote control is included for source selection.
Suited for multi-source, dual-display setups

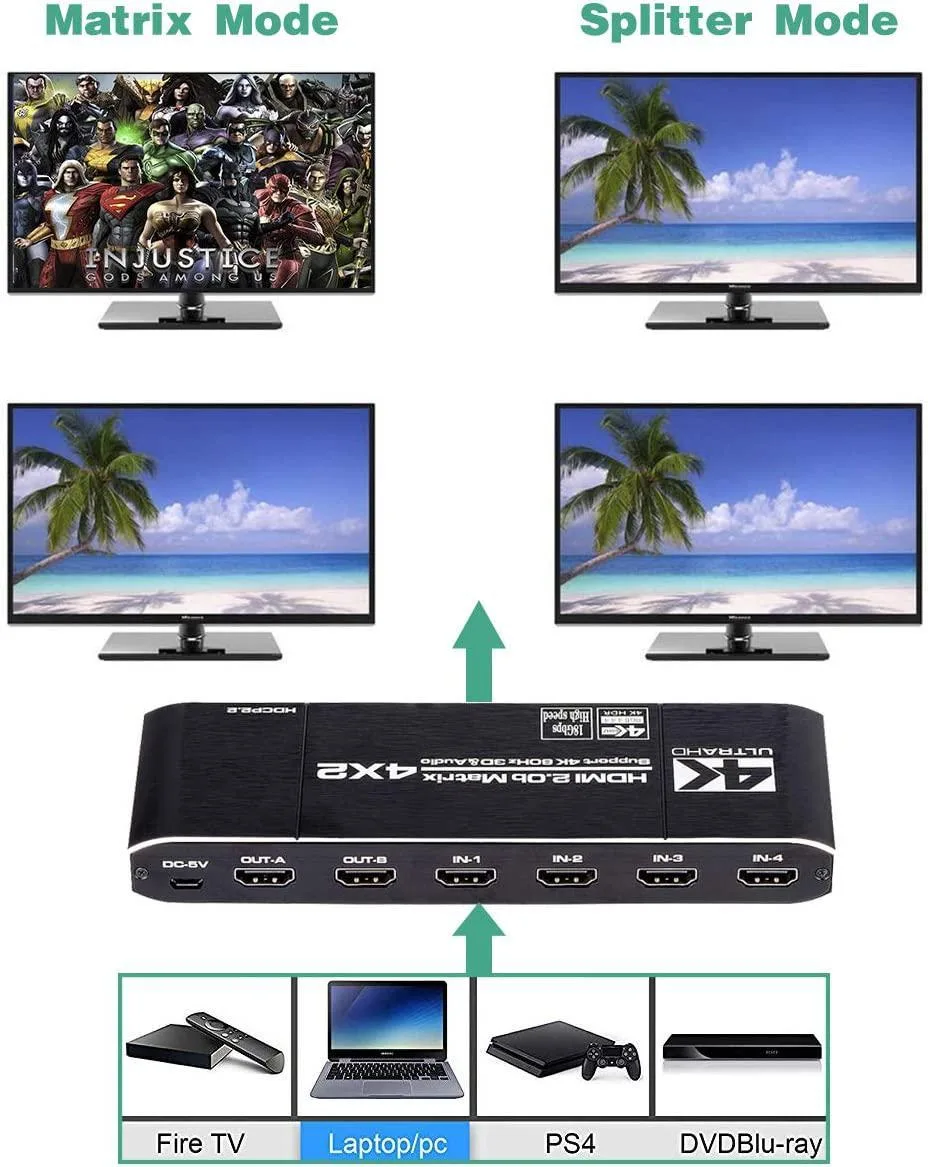

Installers who need to show different 4K sources on two screens, or the same source on both, will find the matrix switching useful. The 18.5 Gbps bandwidth handles deep colour up to 48-bit. Buyers who require more than two output zones or need HDMI 2.1 features such as 4K at higher refresh rates should consider other options.
10 m maximum cable length at 4K@60Hz
The unit is rated for 10 m using AWG26 HDMI 2.0b standard cable at the maximum resolution. Longer runs or thinner cables may not sustain the 18.5 Gbps data rate. Plan cable routes and gauge accordingly to avoid signal loss.
Highlights
- Connect four 4K sources to two displays with matrix flexibility
- Switch or split signals independently via IR remote control
- Deliver 4K 60 Hz video at 18.5 Gbps bandwidth with HDR support
- Extract audio simultaneously through optical and 3.5 mm outputs
- Route 3D and deep-colour content up to 10 m cable runs
Specifications
| Brand | WRIARICH |
|---|---|
| Series | OZJ1-1 |
| Model | OZJ1-1 |
| Part Number | OZJ1-1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4 Product Type:HDMI Splitter 1x4. Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
Will the IR remote or any internal component need replacing over time?
The IR remote uses a standard button cell that will need occasional replacement; the switch itself has no user-serviceable parts.
Which spec caps performance first during continuous 4K@60Hz operation?
The 18.5Gbps bandwidth ceiling and 600MHz TMDS clock limit sustained throughput before any thermal throttle appears.
How much heat or fan noise appears when the matrix runs all day?
The unit is passively cooled with no fan, so it produces no audible noise and only mild warmth during extended use.
