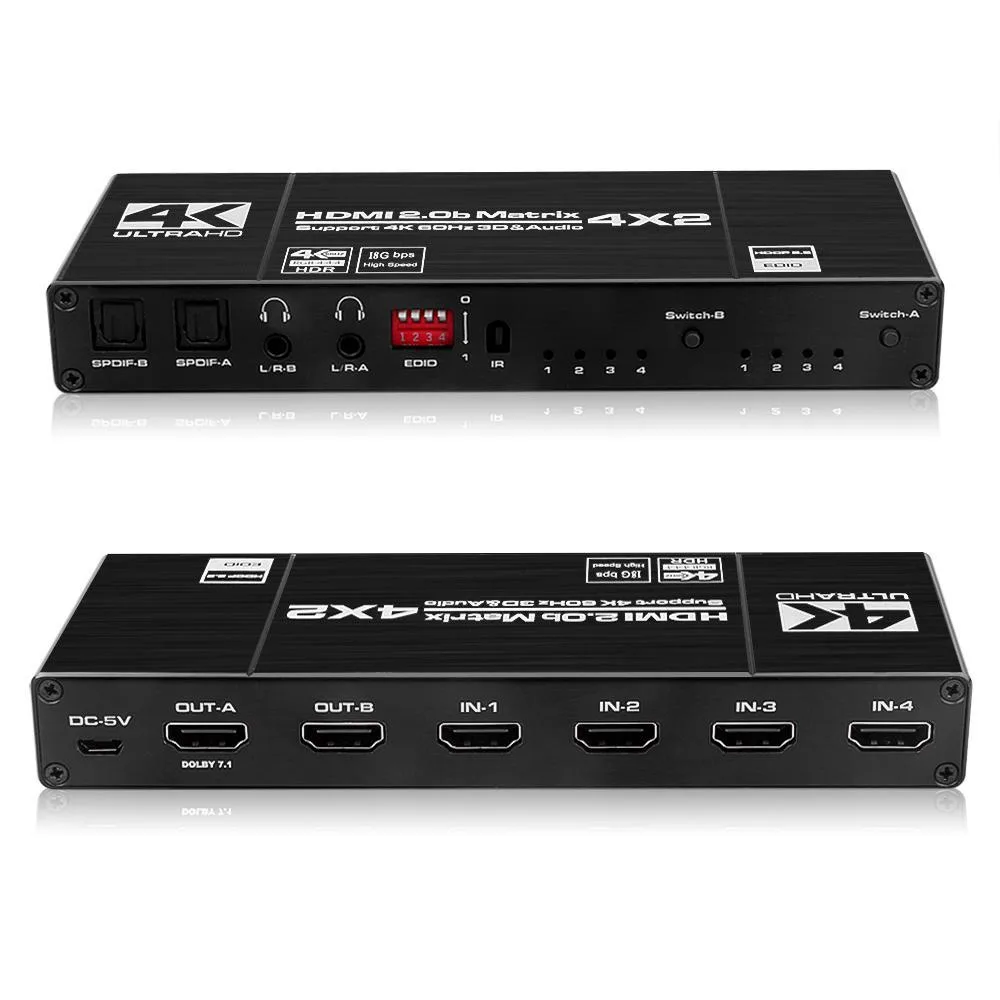

Black rectangular HDMI matrix switch with four inputs and two outputs

WRIARICH

WRIARICH OZJ1-1 4K 60Hz HDMI Matrix Switch 4x2

SKU CH-RDB3-AG78H

Routes four 4K 60 Hz HDMI sources to two displays with HDCP 2.2 and audio extraction via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four 4K sources to two displays independently
  • Delivers 4K 60 Hz video at 18.5 Gbps bandwidth
  • Extracts audio to optical and 3.5 mm simultaneously
  • Controls switching via included IR remote
  • Supports HDCP 2.2 and HDR10 for protected content

4x2 HDMI Matrix Switch

The WRIARICH OZJ1-1 routes four HDMI sources to two independent displays with support for 4K at 60 Hz and HDCP 2.2. It includes optical and 3.5 mm audio extraction for external sound systems. IR remote control allows quick source selection for each output.

Suited for multi-source, dual-screen setups

Installations needing to show different 4K sources on two screens simultaneously will benefit from the matrix design. Buyers who only need to duplicate one source across multiple displays or who require more than two output zones should look elsewhere.

Handles four 4K 60 Hz inputs and two outputs

The 18.5 Gbps bandwidth and 600 MHz TMDS clock carry 3840x2160 at 60 Hz with deep colour up to 48 bit. HDMI 2.0b cables up to 10 m AWG26 are supported. It does not pass resolutions or refresh rates beyond the stated 4K 60 Hz limit.

Highlights

  • Routes four 4K sources to two displays independently
  • Delivers 4K 60 Hz video at 18.5 Gbps bandwidth
  • Extracts audio to optical and 3.5 mm simultaneously
  • Controls switching via included IR remote
  • Supports HDCP 2.2 and HDR10 for protected content

Specifications

BrandWRIARICH
SeriesOZJ1-1
ModelOZJ1-1
Part NumberOZJ1-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit

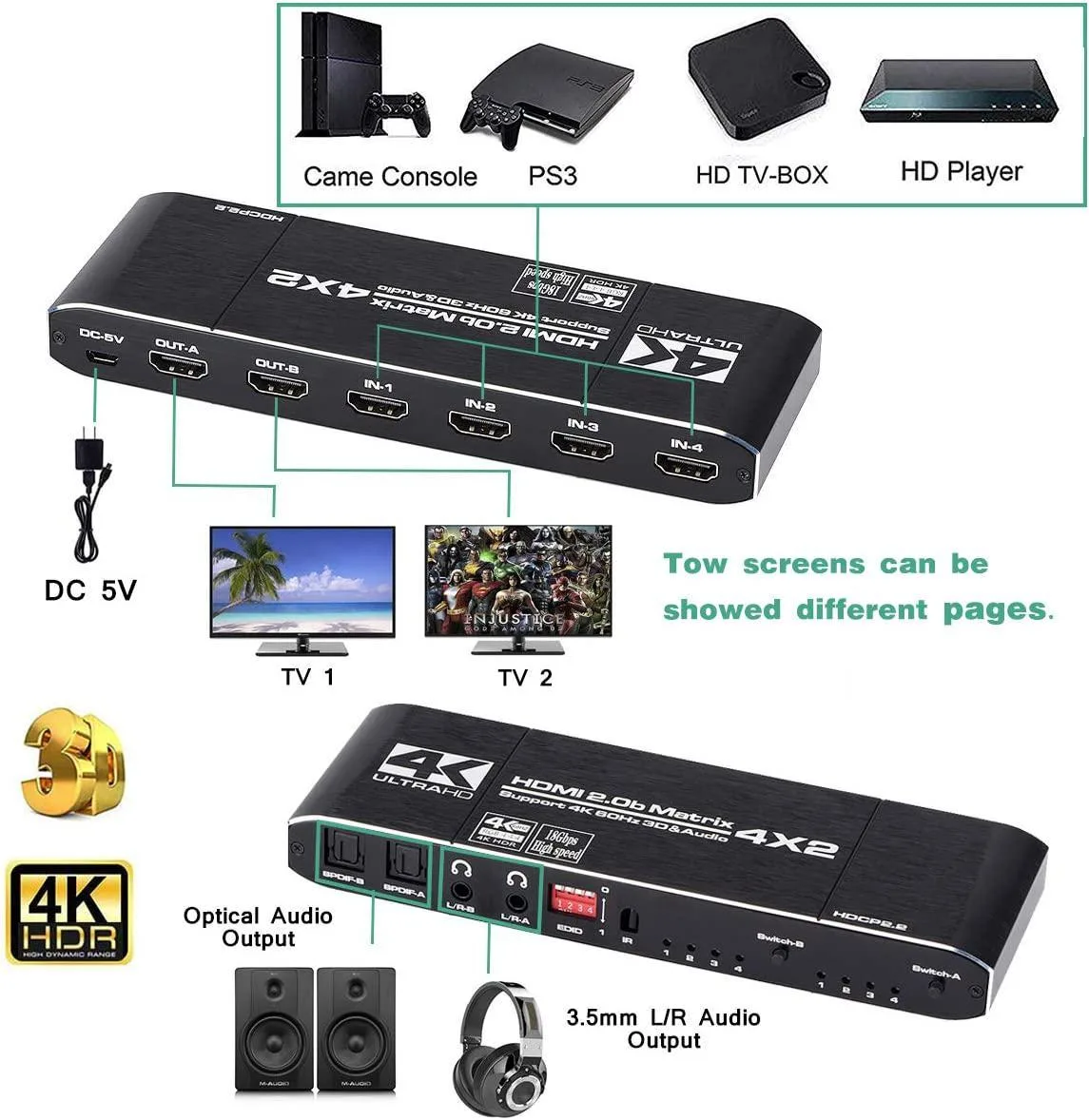

Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

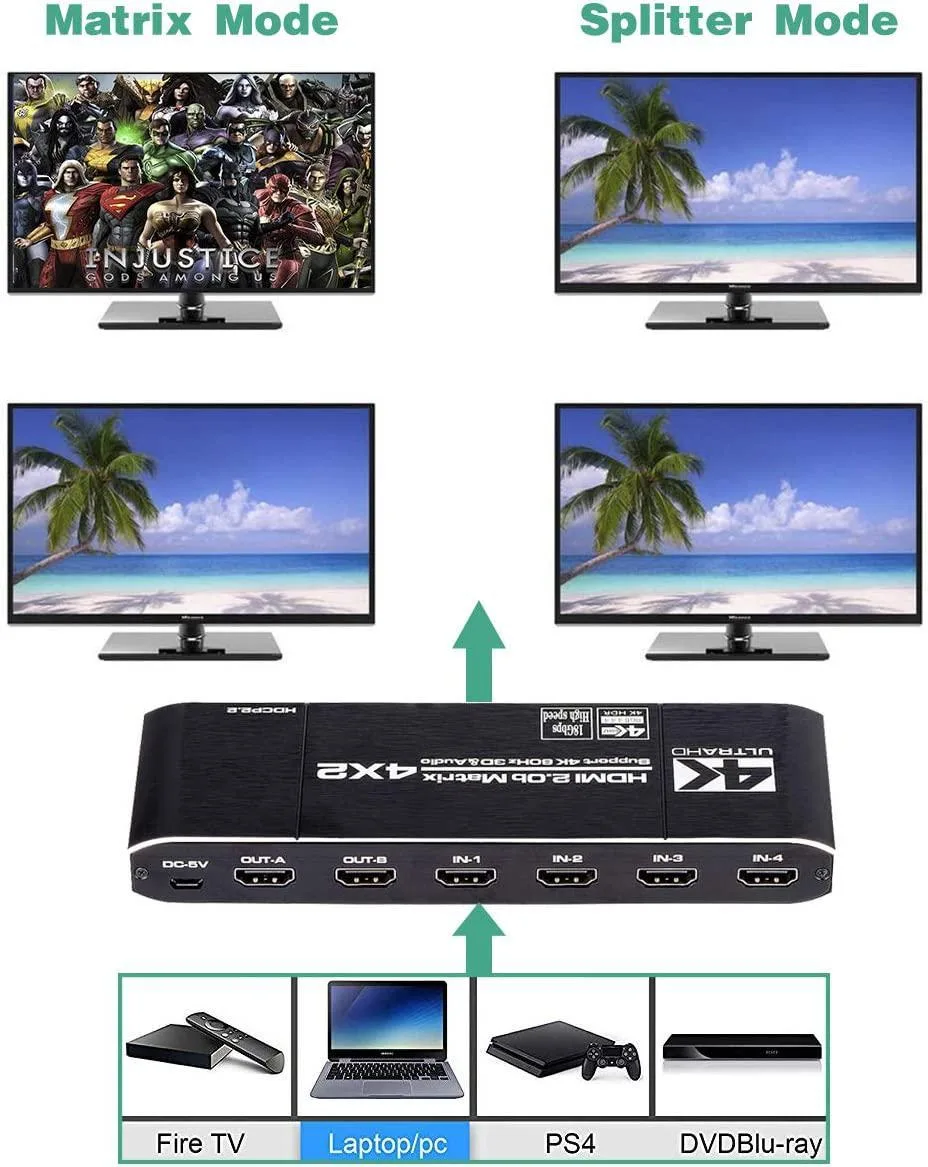

4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Do I need four HDMI source devices and two displays to use the 4x2 matrix?

The switch has four HDMI inputs and two HDMI outputs, so you can connect up to four sources and two displays at once.

Will my 1080p Blu-ray player work alongside a 4K 60 Hz console on the same switch?

Yes, the matrix supports 1080p and 4K at 60 Hz simultaneously, with EDID handling for each input.

How can I confirm the switch is passing HDR10 and 4K 60 Hz after I connect everything?

Check the display's info menu for 3840x2160 at 60 Hz and HDR10, and verify audio from both the 3.5 mm jack and optical output.
