WRIARICH
WRIARICH OZFD DisplayPort Splitter 1 in 2 Out 4K 144Hz
Splits one DisplayPort signal to two monitors at up to 3840x2160@144Hz with MST and SST support
- TypeDisplayPort Splitters
- Changer TypeDisplay Extenders
- Ports2
- AudioYes
- ColorBlack
- Specifications* Power Supply: 5V/2A *Video format: 3840x2160@144Hz *Using
- Drives two 4K displays at 144 Hz from one DP port
- Extends the desktop across both screens on Windows systems
- Carries 32.4 Gbps bandwidth for loss-free video and audio
- Works with cables up to 10 metres without signal drop
- Compact 74 × 74 × 14 mm unit powered by 5 V 2 A USB-C
WRIARICH OZFD DP Splitter 1 in 2 Out
The WRIARICH OZFD splits a single DisplayPort signal into two DisplayPort outputs. It transmits video and audio simultaneously from a laptop, PC or graphics card. The unit requires the included 5V/2A power adapter for operation.
Sustained 4K 144Hz extended operation
The splitter maintains 3840x2160 at 144Hz using a 10 metre cable. Bandwidth reaches 32.4Gbps under continuous load. Extended desktop mode functions only on Windows; integrated graphics typically restrict output to mirror mode.
MST extend mode limited to 120Hz
Multi-Stream Transport tops out at 3840x2160@120Hz, so buyers needing dual 144Hz extended desktops cannot use MST. Mac users are confined to mirror mode regardless of cable or monitor capability.
Highlights
- Drives two 4K displays at 144 Hz from one DP port
- Extends the desktop across both screens on Windows systems
- Carries 32.4 Gbps bandwidth for loss-free video and audio
- Works with cables up to 10 metres without signal drop
- Compact 74 × 74 × 14 mm unit powered by 5 V 2 A USB-C
Specifications
| Brand | WRIARICH |
|---|---|
| Series | OZFD |
| Model | OZFD |
| Part Number | OZFD |
| Type | DisplayPort Splitters |
| Changer Type | Display Extenders |
| Ports | 2 |
| Audio | Yes |
| Color | Black |
| Specifications | * Power Supply: 5V/2A *Video format: 3840x2160@144Hz *Using cable instance: 10 meter DisplayPort cable * Length x Width x Height: 74 *74 *14 (mm) * Weight: 35g |

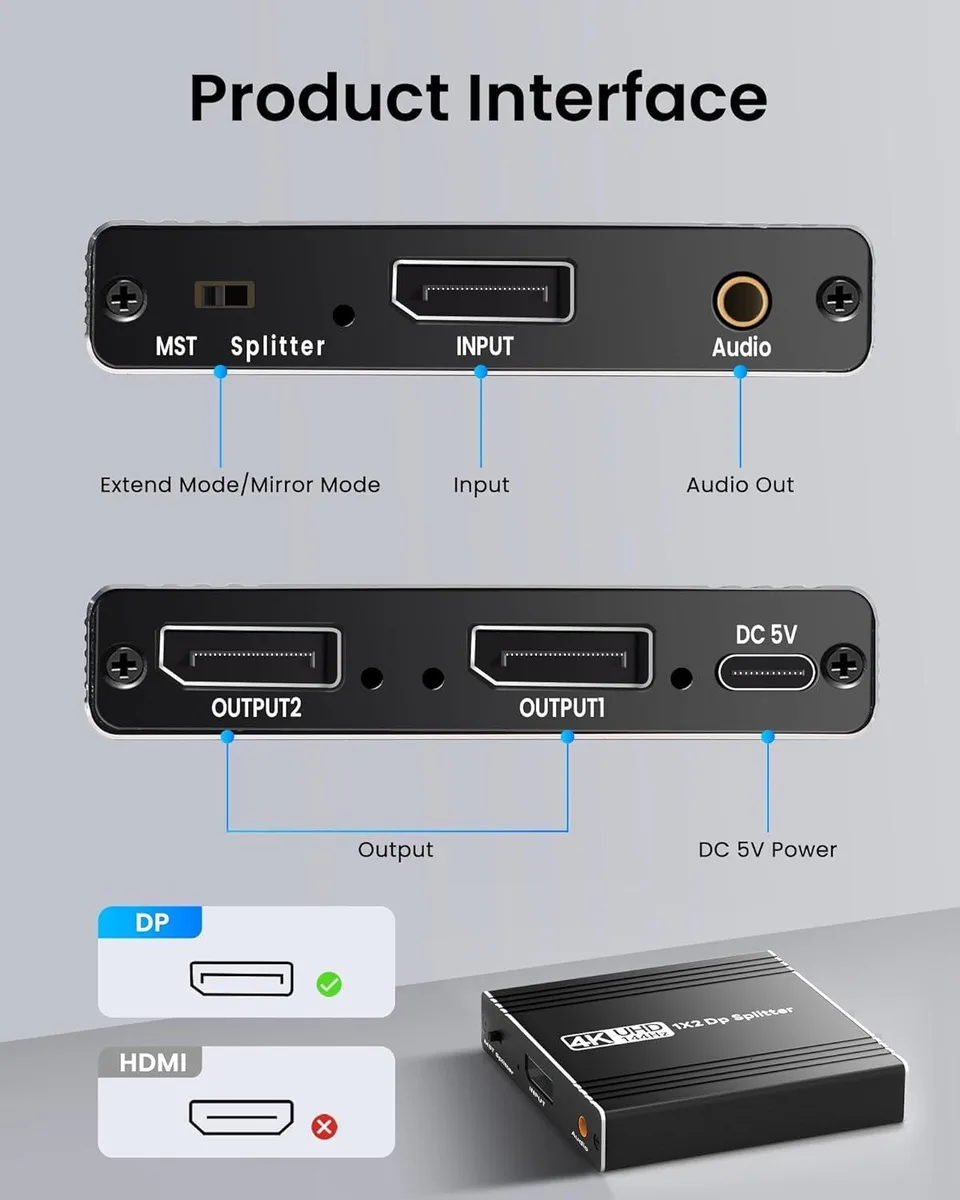

| Input Connector | 1x DisplayPort female |
| Output Connector | 2x DisplayPort female |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 32.4Gbps |
| Features | 1. 1 DP input and 2 DP output simultaneously; 2. DisplayPort 1.4 specification standard. 3. The highest video resolution is 3840x2160@144Hz. 4. Supports up to 3840x2160@120Hz for MST mode. 5. Transfer rates up to 32.4Gbps. 6. Can drive 10 meter DisplayPort cable. |
| Dimensions | 5.31 x 3.11 x 0.87 inches |
| Weight | 2.12 Ounces |
| Package Quantity | 1 |
| Package Contents | 1* DisplayPort Splitter, 1x Power Adapter, 1* USB to Type-C Power cable (5V/2A), 1*User Manual. |
Questions about this item
Does the WRIARICH OZFD splitter generate noticeable heat or fan noise during all-day 4K 144 Hz use?
The unit is a passive DisplayPort 1.4 splitter with no fan; it draws 5 V / 2 A from the included USB-C power cable and stays cool during continuous 3840×2160@144 Hz operation.
Which cables and monitors must I already own for the OZFD to deliver 4K 144 Hz on both outputs?
You need a DisplayPort 1.4 source, two DP 1.4-certified cables (up to 10 m each), and two monitors that each accept 3840×2160@144 Hz over DisplayPort.
Will the OZFD drive two older 1080p 60 Hz monitors in extended mode from a laptop with integrated graphics?
Integrated GPUs typically restrict the splitter to mirror mode; extended desktop across two 1080p displays requires a discrete GPU and Windows OS.
