Small black box with one HDMI input and two HDMI outputs plus 3.5mm coaxial and SPDIF audio ports

WRIARICH

WRIARICH OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 18Gbps 3.5mm Coaxial SPDIF

SKU CH-E9TM-GF5D8

Splits one HDMI source to two displays at 3840 x 2160 60 Hz while extracting audio to 3.5 mm, coaxial and optical SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two identical displays
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • Extracts audio to 3.5 mm, coaxial and SPDIF ports
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure

Splitter with audio extraction

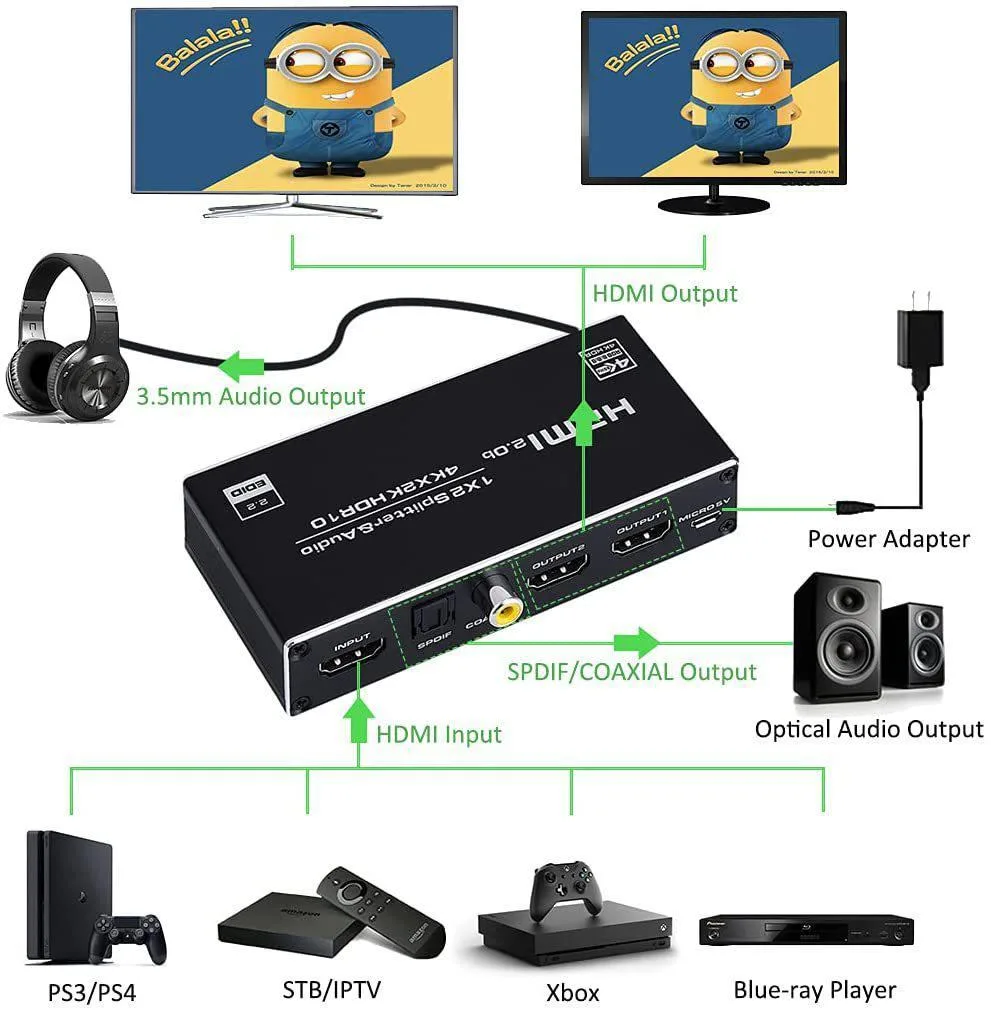

The WRIARICH OZF6A takes a single HDMI source and mirrors it to two displays while pulling the audio stream out to separate 3.5mm, coaxial and optical SPDIF outputs. It handles 4K at 60 Hz with 18 Gbps bandwidth and supports colour depths up to 36 bit. The box includes the splitter, a USB power adapter and a manual.

Upgrades basic splitters

A passive cable splitter cannot drive two long runs or provide dedicated audio outputs for a soundbar or AV receiver. This unit amplifies the TMDS signal and adds three audio extraction ports with selectable 2.0 CH or 5.1 CH modes, so the jump is worth it when you need both duplicate video and flexible audio routing.

Sustained 4K60 operation

The splitter maintains 3840 x 2160 at 60 Hz continuously thanks to active signal amplification and a 5 V USB power supply that prevents voltage drop on long cables. Deep-colour 30-bit and 36-bit streams pass without degradation, and the metal enclosure dissipates heat during extended use.

Highlights

  • Splits one HDMI source to two identical displays
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • Extracts audio to 3.5 mm, coaxial and SPDIF ports
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure

Specifications

BrandWRIARICH
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g
Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

How much clearance does the 5.59 x 3.15 x 1.26 inch unit need behind the rack?

Allow at least 1.26 inches of depth plus cable bend radius for the HDMI and audio leads.

Which audio mode should I pick on the three-position switch for a 5.1 surround system?

Select the 5.1CH position so the extractor passes multichannel bitstreams through the coaxial or optical SPDIF port.

When should I replace the included USB power adapter?

Swap it if the splitter loses sync or the audio extractor drops out, which usually means the 5 V supply has degraded.
