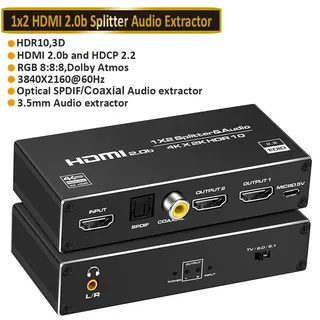

Black rectangular HDMI splitter with two HDMI outputs and audio ports

WRIARICH

WRIARICH OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 18Gbps

SKU CH-Z38T-EMS4H

One HDMI source feeds two displays at 4K 60 Hz while extracting audio through 3.5 mm, coaxial and SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two identical displays
  • Extracts audio to 3.5 mm, coaxial and optical outputs
  • Passes 4K at 60 Hz with 18 Gbps bandwidth
  • Supports 2.0 CH and 5.1 CH audio modes
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

What it is and who needs it

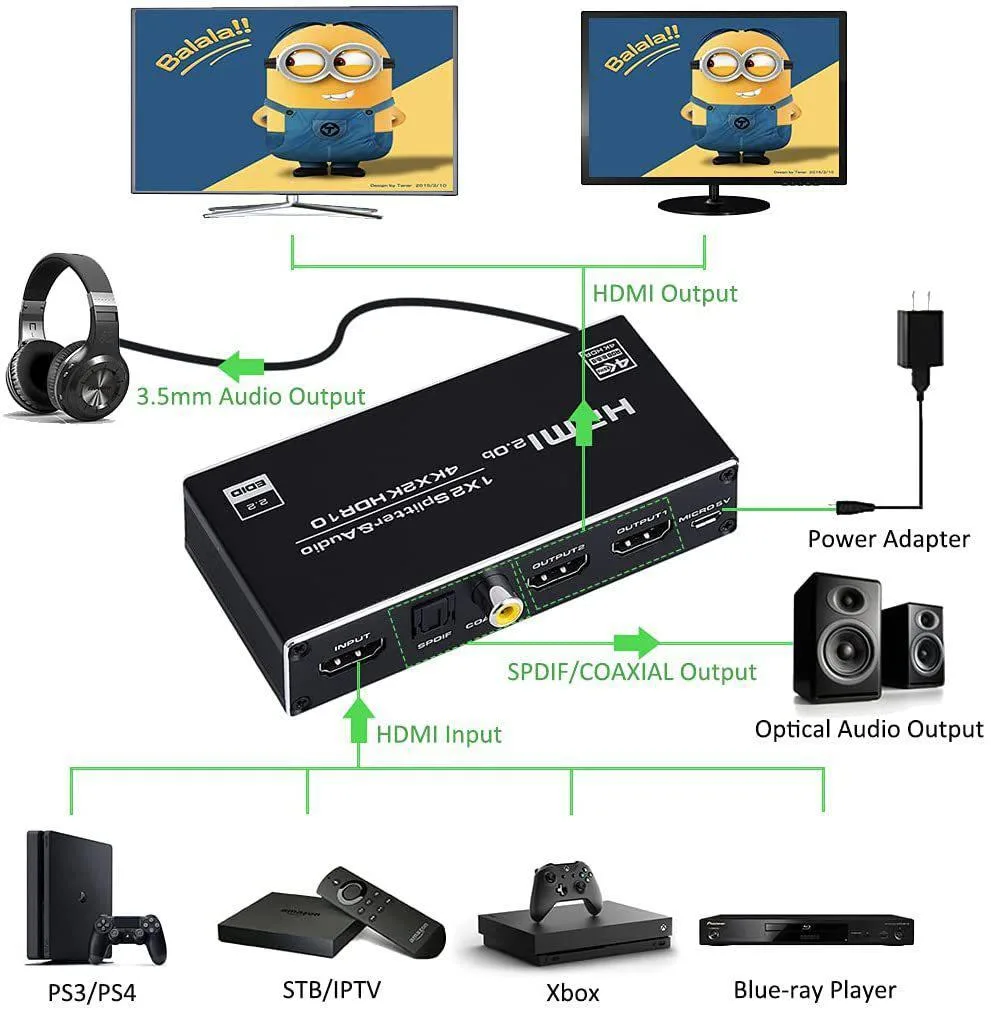

The WRIARICH OZF6A is a 1x2 HDMI splitter with integrated audio extraction. It takes one HDMI source and sends identical video to two displays while providing separate 3.5 mm, coaxial and SPDIF audio outputs. This suits installers who need simultaneous display and external sound-system routing from a single source.

The specification that decides fit

The unit passes 18 Gbps bandwidth and supports 3840 x 2160 at 60 Hz with 24, 30 and 36 bit deep colour. It also handles 1080p at 120 Hz and 3D formats. If your source or displays require higher bandwidth or a different colour depth, this splitter will not pass the signal correctly.

Behaviour under sustained load

The aluminium enclosure dissipates heat during continuous operation, and the included USB power adapter maintains stable 5 V supply to the TMDS circuitry. This prevents signal dropout or HDCP handshake loss during long playback sessions, keeping both video paths and all three audio outputs active without interruption.

Highlights

  • Splits one HDMI source to two identical displays
  • Extracts audio to 3.5 mm, coaxial and optical outputs
  • Passes 4K at 60 Hz with 18 Gbps bandwidth
  • Supports 2.0 CH and 5.1 CH audio modes
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

Specifications

BrandWRIARICH
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g
Input Connector1 HDMI input

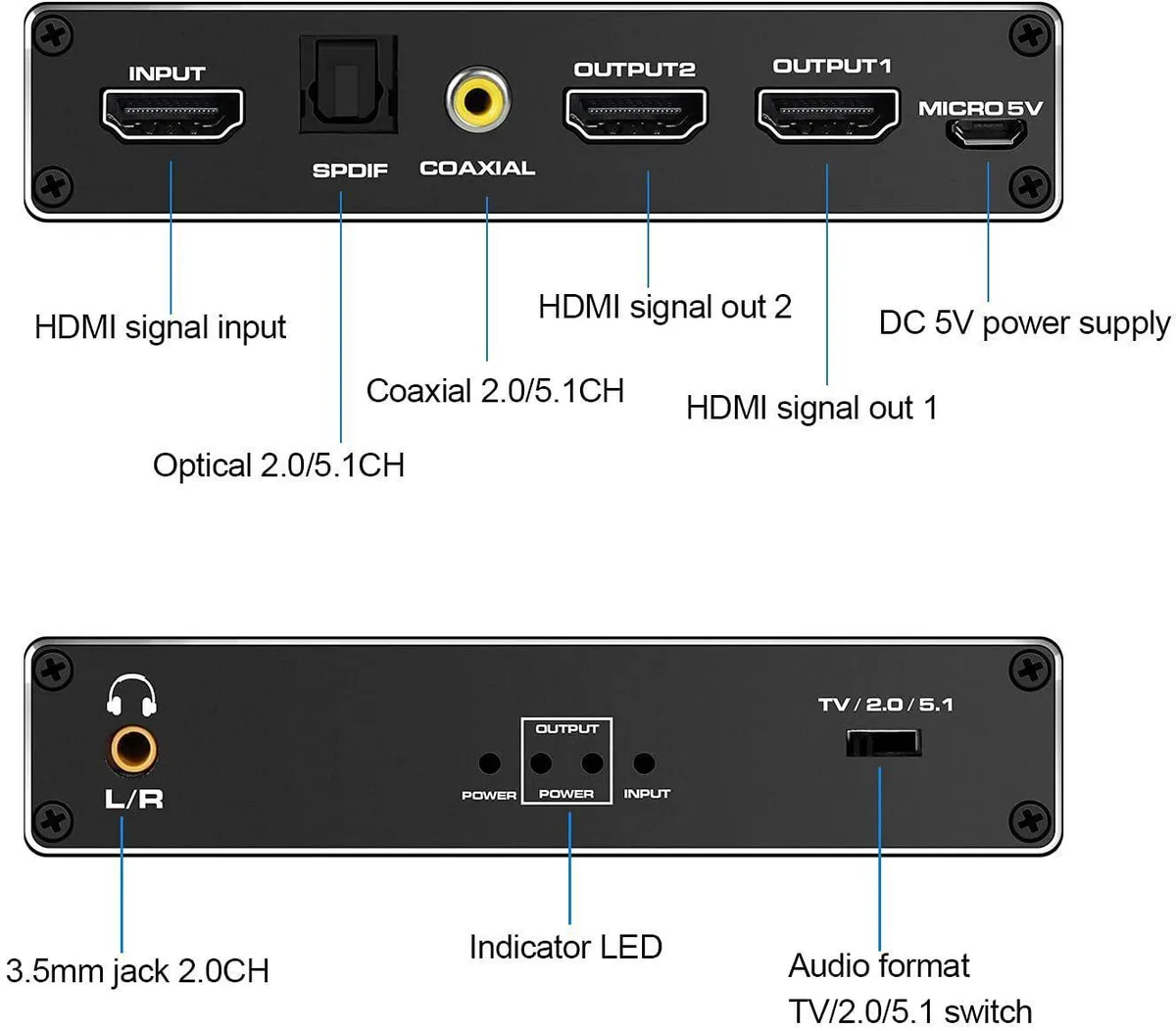

Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What does the 18 Gbps bandwidth mean for a real 4K 60 Hz setup?

It carries the full 4K 60 Hz 4:4:4 signal without compression, so both connected displays receive the same pixel-perfect image the source sends.

How does HDCP 2.2 on the HDMI ports limit what I can play?

Protected 4K streams from services such as Netflix or UHD Blu-ray will pass through only if every cable and display in the chain also supports HDCP 2.2.

What clearance do the 5.59 × 3.15 × 1.26 inch dimensions and USB power adapter require?

The unit fits in a 15 cm × 8 cm × 3.2 cm space; allow extra room for the USB power cable and the three audio cables (3.5 mm, coaxial, optical) that exit the same side.
