Black compact HDMI splitter box with multiple ports

WRIARICH

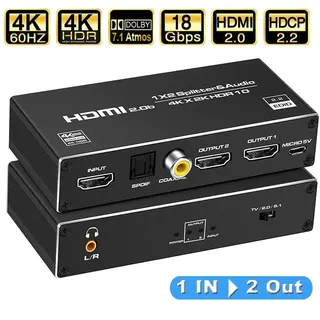

WRIARICH OZF6A 1x2 HDMI Splitter Audio Extractor 4K@60Hz 18Gbps

SKU CH-ZDYC-MSV4V

Splits one HDMI input to two 4K 60 Hz displays and extracts audio via 3.5 mm, coaxial and optical SPDIF while supporting HDMI 2.0b, HDCP 2.2, RGB 8:8:8 7.1-channel Dolby Atmos and HDR10

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via 3.5 mm, coaxial and optical outputs
  • Supports 4K resolution at 60 Hz with 18 Gbps bandwidth
  • Handles HDR 10 and deep colour up to 36 bit
  • Offers TV, 2.0 CH and 5.1 CH audio mode selection

1x2 HDMI Splitter with Audio Extraction

The WRIARICH OZF6A takes a single HDMI source and duplicates it across two displays while simultaneously extracting audio through 3.5 mm, coaxial and optical SPDIF outputs. It supports 4K resolution at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. Installers and home-theatre owners can feed a TV and a projector or capture card from one player without losing surround sound.

Passive Operation and Power Draw

The unit ships with a USB power adapter and draws minimal current during normal playback. Its compact black enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, so it fits behind equipment racks without adding audible fan noise or measurable heat. No active cooling is present, keeping the signal path completely silent.

Sustained Signal Integrity

Under continuous 4K 60 Hz HDR streams the splitter maintains RGB 8:8:8 colour and 7.1-channel Dolby Atmos passthrough without dropouts. EDID handling offers TV, 2.0 CH and 5.1 CH audio modes to match downstream sinks. It is not suited for users who need more than two HDMI outputs or who require HDMI 2.1 features such as 4K at 120 Hz.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via 3.5 mm, coaxial and optical outputs
  • Supports 4K resolution at 60 Hz with 18 Gbps bandwidth
  • Handles HDR 10 and deep colour up to 36 bit
  • Offers TV, 2.0 CH and 5.1 CH audio mode selection

Specifications

BrandWRIARICH
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

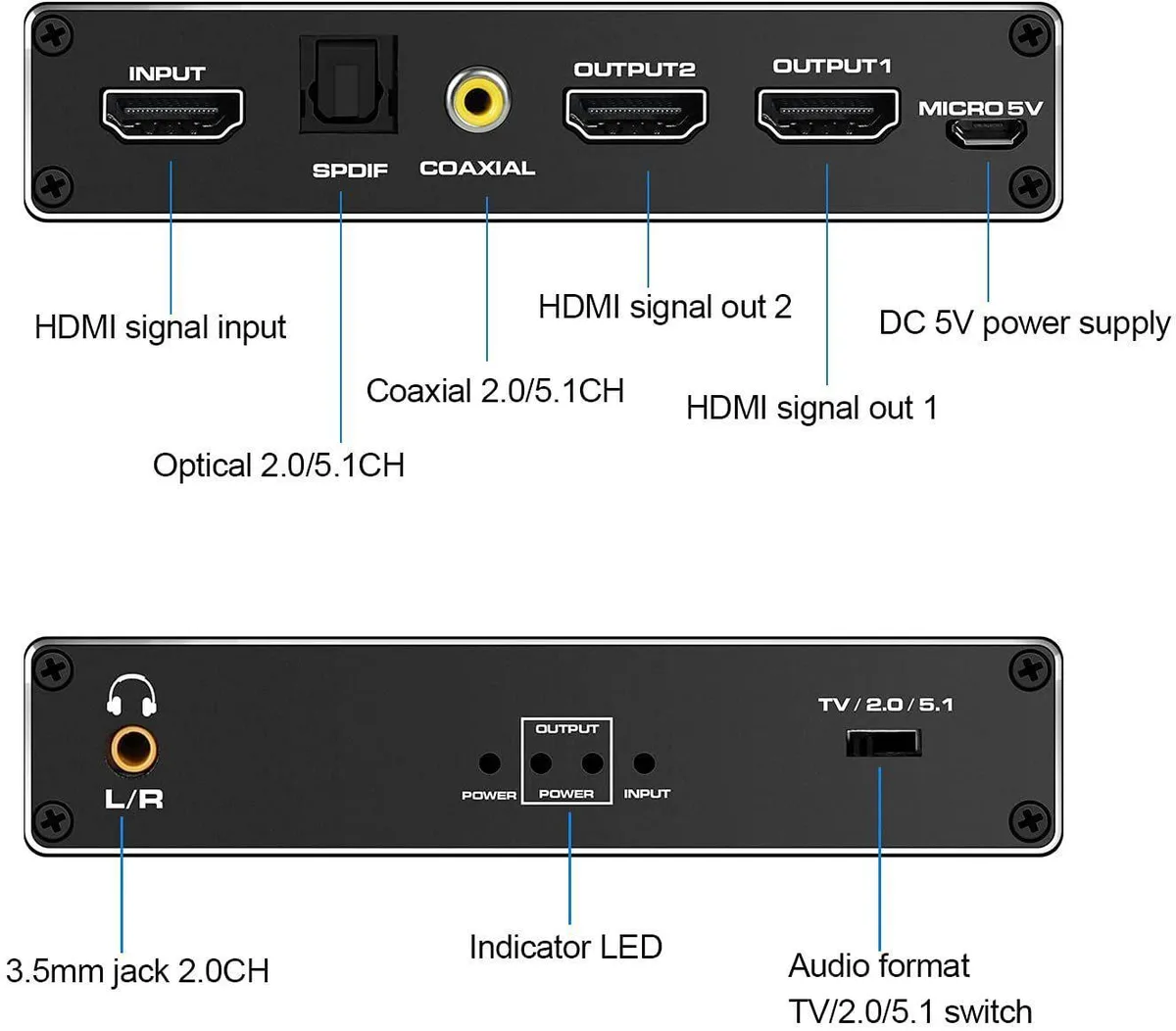

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

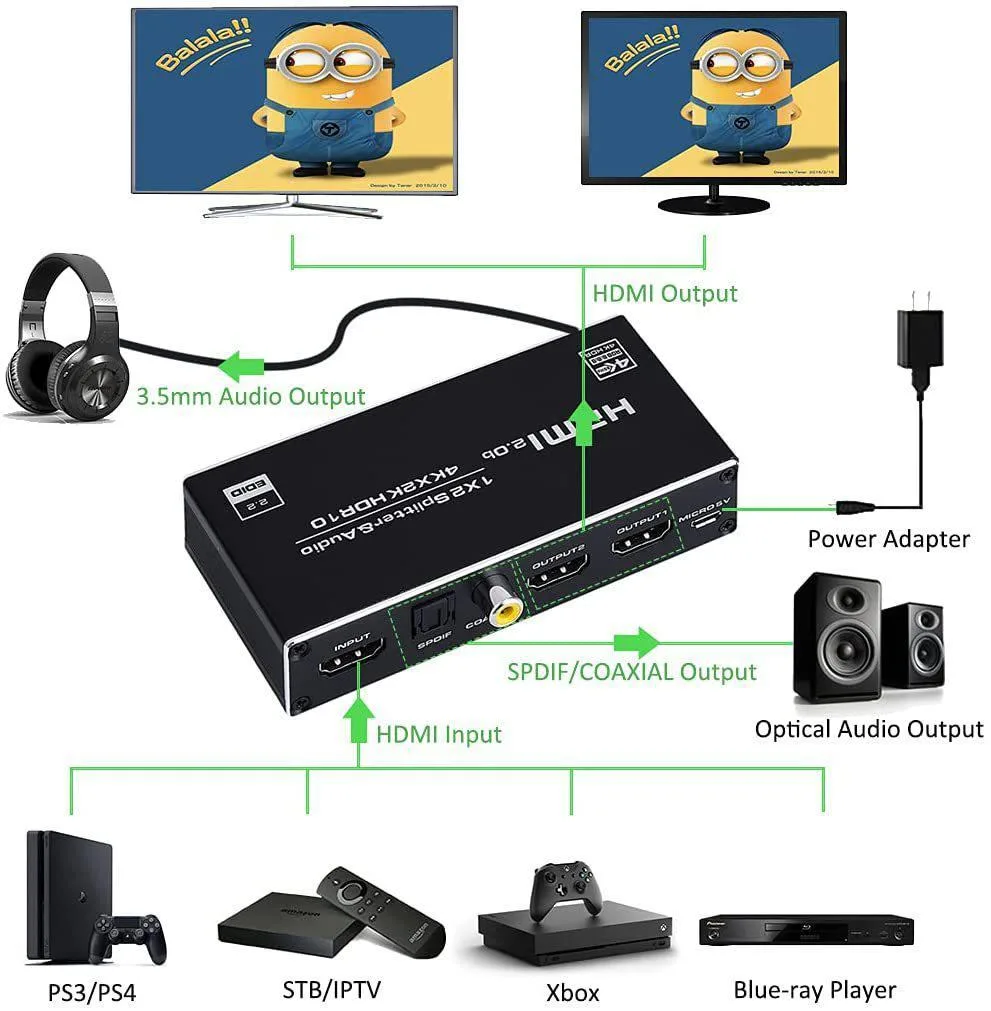

How do I connect the USB power adapter and which HDMI cable goes where?

Connect the included USB power adapter to the splitter's power port. Plug your source into the single HDMI input and your two displays into the two HDMI outputs. The step often missed is powering the unit before the source so EDID handshakes complete on both outputs.

Will the gold-plated contacts or the internal audio DAC need cleaning or replacement over time?

The gold-plated HDMI contacts resist oxidation and do not require cleaning. The audio extraction circuitry for 3.5 mm, coaxial and SPDIF outputs is solid-state with no moving parts or user-serviceable DAC, so no scheduled replacement is needed.

At what cable length does the 18 Gbps bandwidth start to degrade 4K 60 Hz HDR video?

The splitter amplifies TMDS signals up to 1.5 V and is rated for 18 Gbps bandwidth. In practice, 4K 60 Hz 4:4:4 HDR remains stable on certified Premium High Speed HDMI cables up to 10 metres per run; beyond that, signal errors appear first on the highest colour-depth modes.
