Black HDMI splitter box with one input and two outputs plus audio ports

WRIARICH

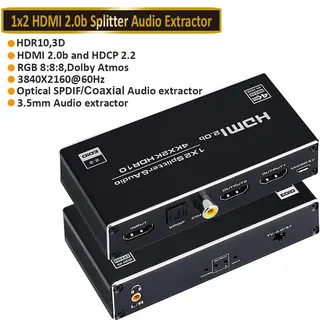

WRIARICH OZF6A 1×2 HDMI Splitter Audio Extractor 4K@60Hz 18Gbps

SKU CH-Z9RA-VYH67

Splits one HDMI source to two displays at 3840×2160@60Hz while extracting audio through SPDIF, coaxial and 3.5mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • Extracts audio to 3.5 mm, coaxial and SPDIF outputs
  • Supports 2.0 CH and 5.1 CH audio modes
  • Compact 5.59 × 3.15 × 1.26 inch enclosure

What this splitter does

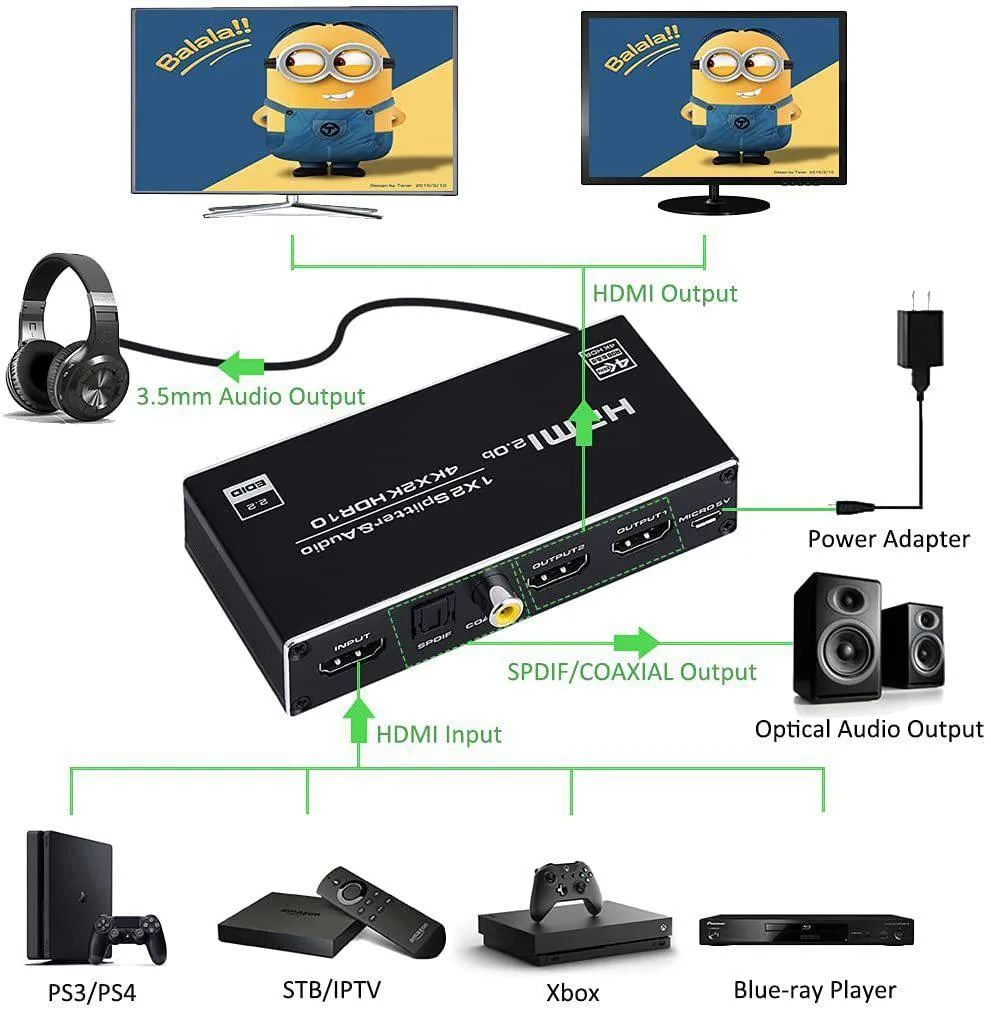

The WRIARICH OZF6A takes one HDMI source and sends identical video to two displays at up to 3840 x 2160 at 60 Hz. It also extracts audio through 3.5 mm, coaxial and SPDIF outputs with support for 7.1 channel formats such as DTS-HD and Dolby TrueHD.

Check your source and cables first

Your source must provide an HDMI signal within the 18 Gbps bandwidth limit. Both displays need to accept the same resolution and refresh rate because the splitter does not downscale independently. Use cables rated for the full bandwidth to avoid dropouts.

Stable output during long sessions

The unit draws power from the included USB adapter and amplifies the TMDS signal to maintain sync over extended runs. Three audio mode settings let you match the extractor to stereo or multichannel receivers without re-negotiating the video link.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • Extracts audio to 3.5 mm, coaxial and SPDIF outputs
  • Supports 2.0 CH and 5.1 CH audio modes
  • Compact 5.59 × 3.15 × 1.26 inch enclosure

Specifications

BrandWRIARICH
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

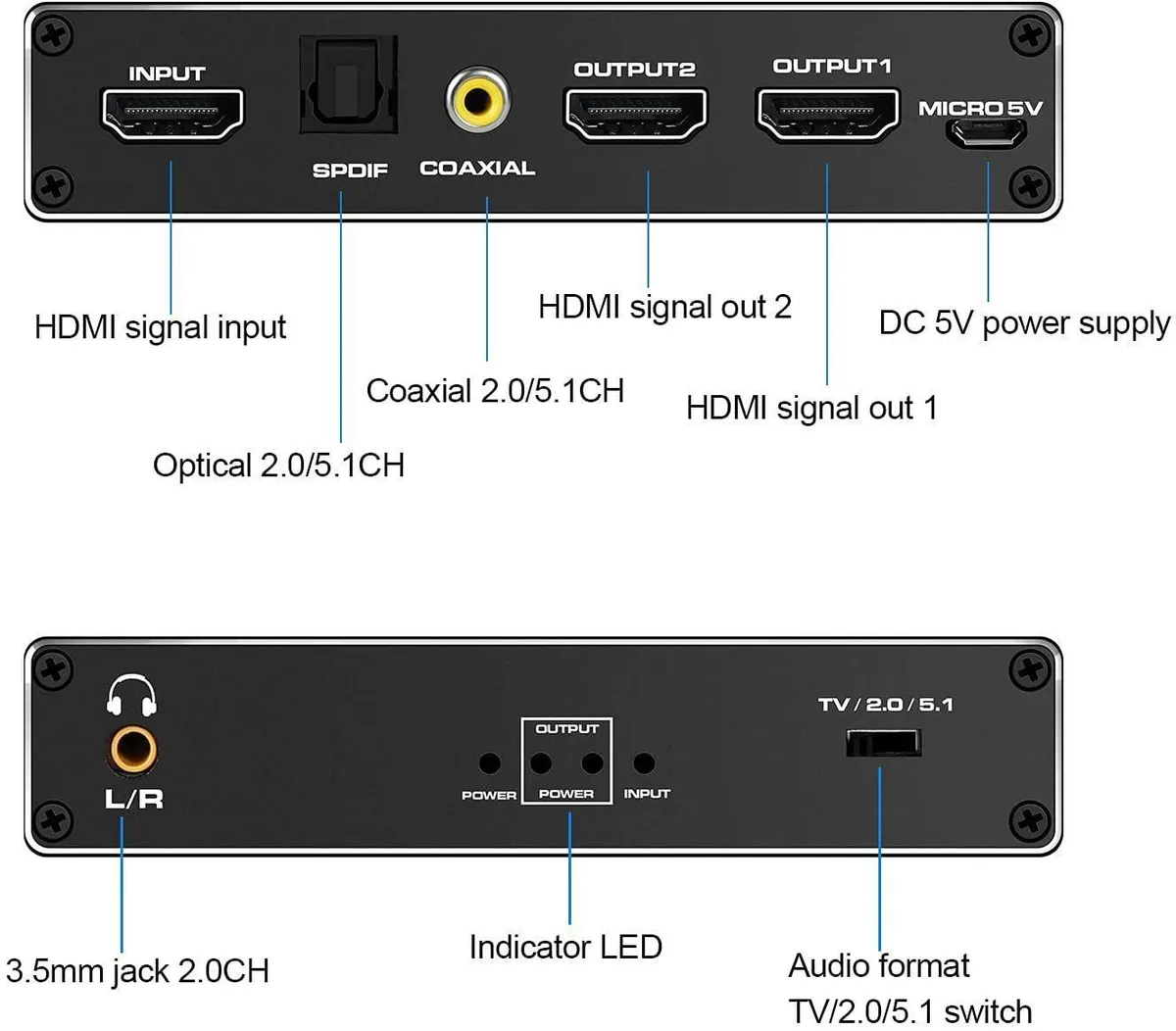

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What comes in the box and do I need to buy any cables or power supplies separately?

The package includes the 1×2 HDMI splitter audio extractor, a user manual, and a USB power adapter. HDMI cables for the input and two outputs are not included and must be purchased separately.

Which audio output should I choose — 3.5 mm, coaxial or optical SPDIF — and what formats does each support?

All three outputs are active simultaneously. They carry the same extracted audio and support DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD. Select TV, 2.0 CH or 5.1 CH mode on the unit to match your sound system.

Will the 18 Gbps bandwidth handle 4K at 60 Hz with HDR on both displays at the same time?

Yes. The splitter supports 3840 × 2160 at 60 Hz, 24/30/36-bit deep colour and HDCP 2.2, so both connected displays can receive a full 4K 60 Hz HDR signal simultaneously.
