Small black HDMI splitter box with four output ports

WRIARICH

WRIARICH OZF3-1 1x4 HDMI Splitter 4K@60Hz 18.2Gbps

SKU CH-T85H-GBHTX

A 1×4 HDMI 2.0b splitter duplicates one source to four displays at up to 3840×2160 @ 60 Hz with 18.2 Gbps bandwidth, HDCP 2.2 and 8/10/12-bit deep colour

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • Distributes one HDMI source to four displays simultaneously
  • Delivers 4K resolution at 60 Hz for sharp detail
  • Supports 8, 10 and 12-bit deep colour for rich gradients
  • Handles 3D video formats for immersive viewing
  • Includes USB power adapter for reliable operation

1×4 HDMI 2.0b Splitter

The WRIARICH OZF3-1 takes a single HDMI source and mirrors it across four displays simultaneously. It is built for installers and home-theatre owners who need identical 4K output on multiple screens without switching cables.

Passive thermal design, external power

The aluminium enclosure dissipates heat without a fan, so operation stays silent in living-room or boardroom settings. A supplied USB power adapter delivers the 18.2 Gbps bandwidth headroom required for stable 4K 60 Hz transmission.

HDCP 2.2 compliance for protected content

This unit handles HDCP 2.2 and earlier 1.x revisions, allowing copy-protected streams from consoles, streaming sticks and Blu-ray players to reach all four outputs. Without HDCP 2.2 support, 4K premium content would be blocked or downscaled.

Highlights

  • Distributes one HDMI source to four displays simultaneously
  • Delivers 4K resolution at 60 Hz for sharp detail
  • Supports 8, 10 and 12-bit deep colour for rich gradients
  • Handles 3D video formats for immersive viewing
  • Includes USB power adapter for reliable operation

Specifications

BrandWRIARICH
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)
Support EDID

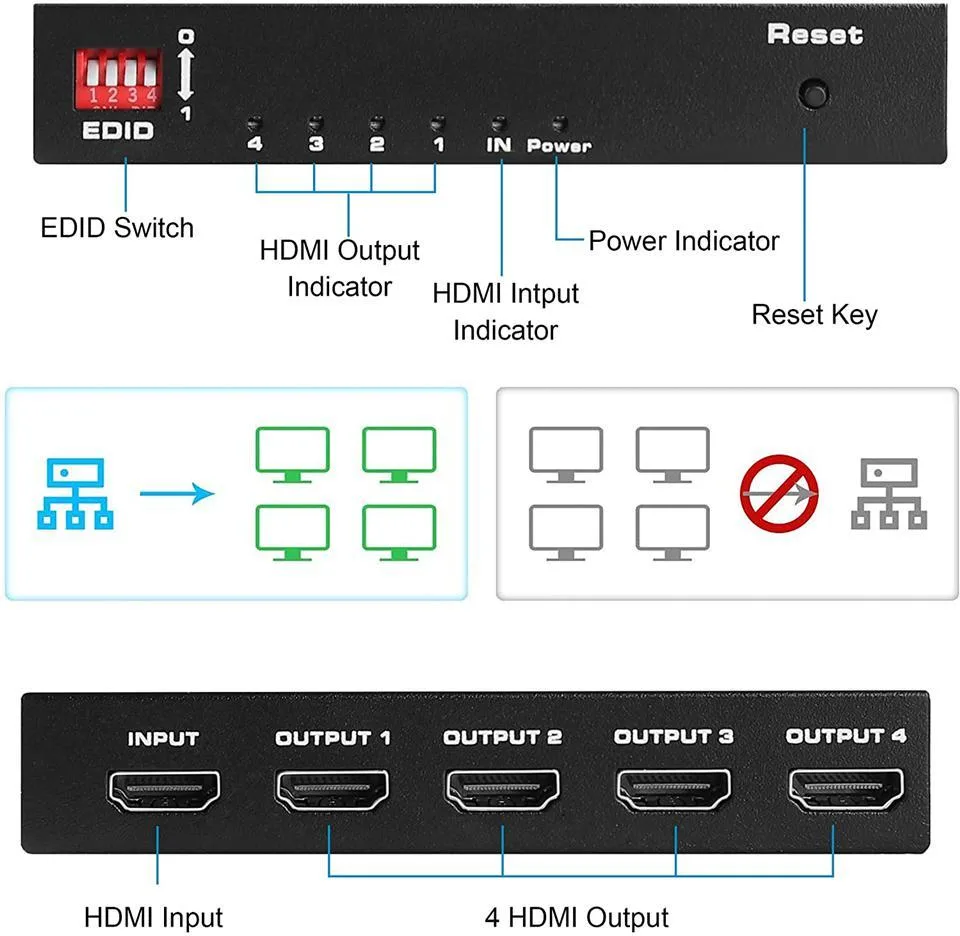

The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

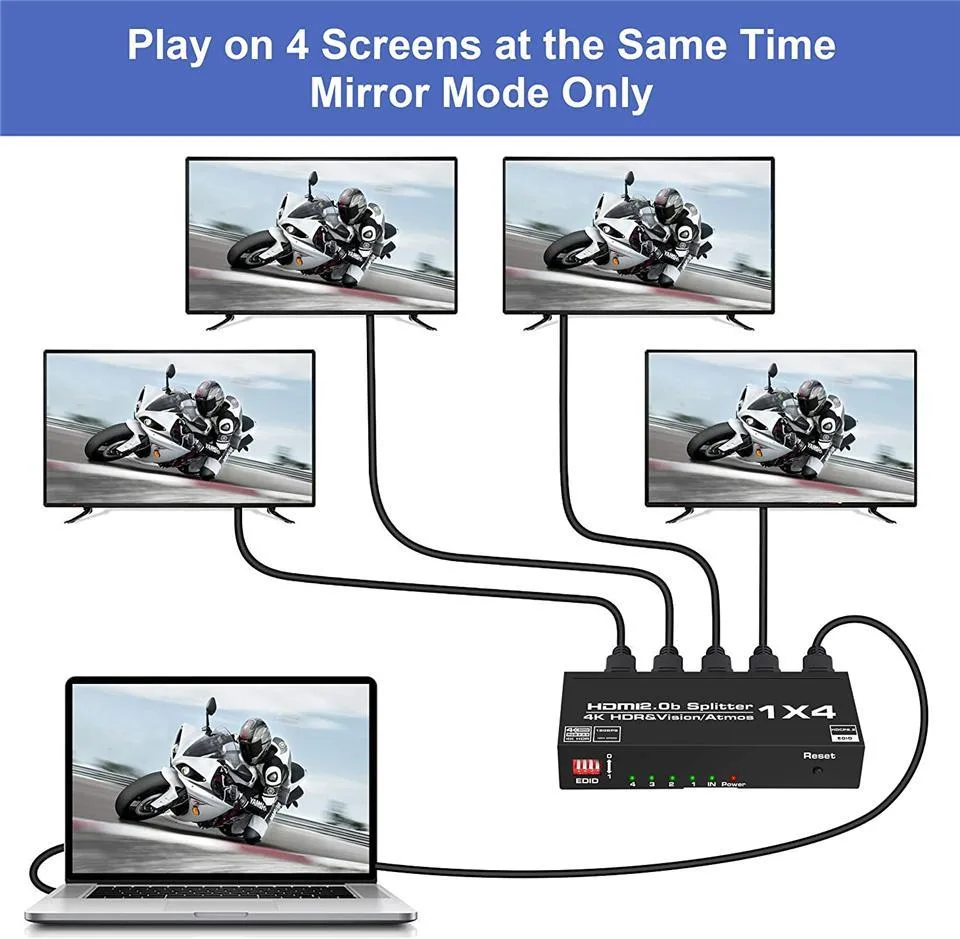

How do I connect the WRIARICH OZF3-1 to four displays without losing 4K 60Hz signal?

Connect the source to the single HDMI input, then run four HDMI cables from the outputs to each display; use AWG26 certified cables and keep runs short to maintain 18.2 Gbps bandwidth for 3840 x 2160 at 60 Hz.

What upkeep does the USB power adapter need over time?

The USB power adapter has no user-serviceable parts; keep the connector free of dust and replace the adapter only if the splitter loses power or shows intermittent operation.

At what point does the 18.2 Gbps bandwidth limit affect multi-mirror 4K output?

The 18.2 Gbps ceiling caps all four mirrored streams at 3840 x 2160 60 Hz with 8/10/12 bit deep colour; higher refresh rates such as 1080p 120 Hz fit within the same limit but 4K above 60 Hz would exceed it.
