Black rectangular HDMI splitter with one input and four output ports

WRIARICH

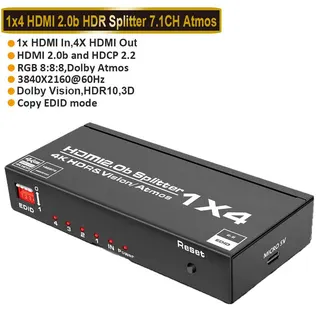

WRIARICH OZF3-1 1×4 HDMI 2.0 Splitter 4K@60Hz

SKU CH-Z9M0-W6HQZ

Distributes one HDMI source to four displays at up to 3840 x 2160 @ 60Hz with 18.2Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • One source drives four displays simultaneously
  • HDMI 2.0b and HDCP 2.2 keep 4K 60 Hz protected
  • 2 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • 8, 10 and 12 bit deep colour plus 3D support
  • 1080p at 144 Hz for high refresh gaming

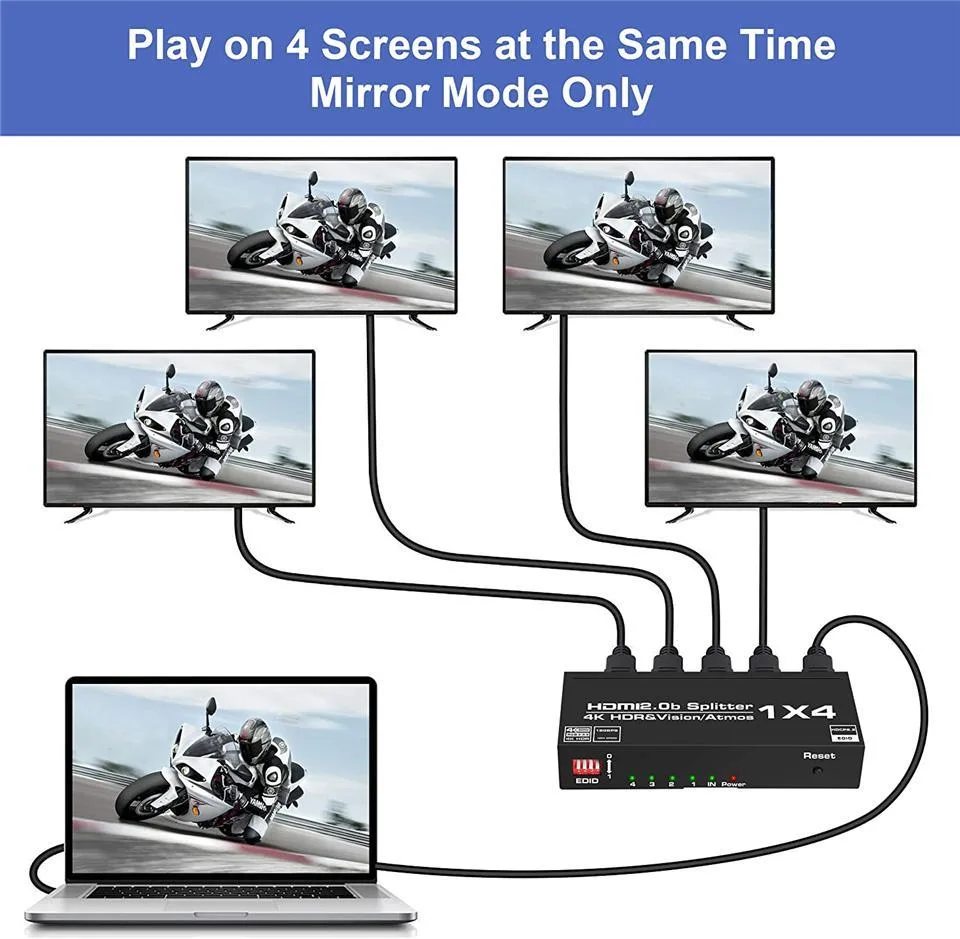

One-to-four HDMI 2.0 splitter

The WRIARICH OZF3-1 takes a single HDMI source and sends the same signal to four displays simultaneously. It supports HDMI 2.0b and HDCP 2.2 for protected content. Maximum resolution is 3840 x 2160 at 60 Hz with 8, 10 or 12 bit deep colour. The unit also passes 3D video formats and 1080p at up to 144 Hz.

Check cables and source capability

Verify that your source device can output the desired resolution and refresh rate over HDMI 2.0. Use certified HDMI cables rated for 18.2 Gbps bandwidth to reach 4K 60 Hz on all four outputs. The splitter requires the included USB power adapter for stable operation. Confirm each display supports the target resolution and HDCP version.

Ideal for multi-screen signage and duplication

This splitter suits installers who need identical content on four screens such as digital signage, classrooms or multi-monitor workstations. It does not extend a desktop across displays, so users wanting independent images per screen should look at a multi-output graphics card or matrix switch instead. Buyers needing more than four outputs or HDMI 2.1 features such as 4K 120 Hz will require a different solution.

Highlights

  • One source drives four displays simultaneously
  • HDMI 2.0b and HDCP 2.2 keep 4K 60 Hz protected
  • 2 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • 8, 10 and 12 bit deep colour plus 3D support
  • 1080p at 144 Hz for high refresh gaming

Specifications

BrandWRIARICH
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)

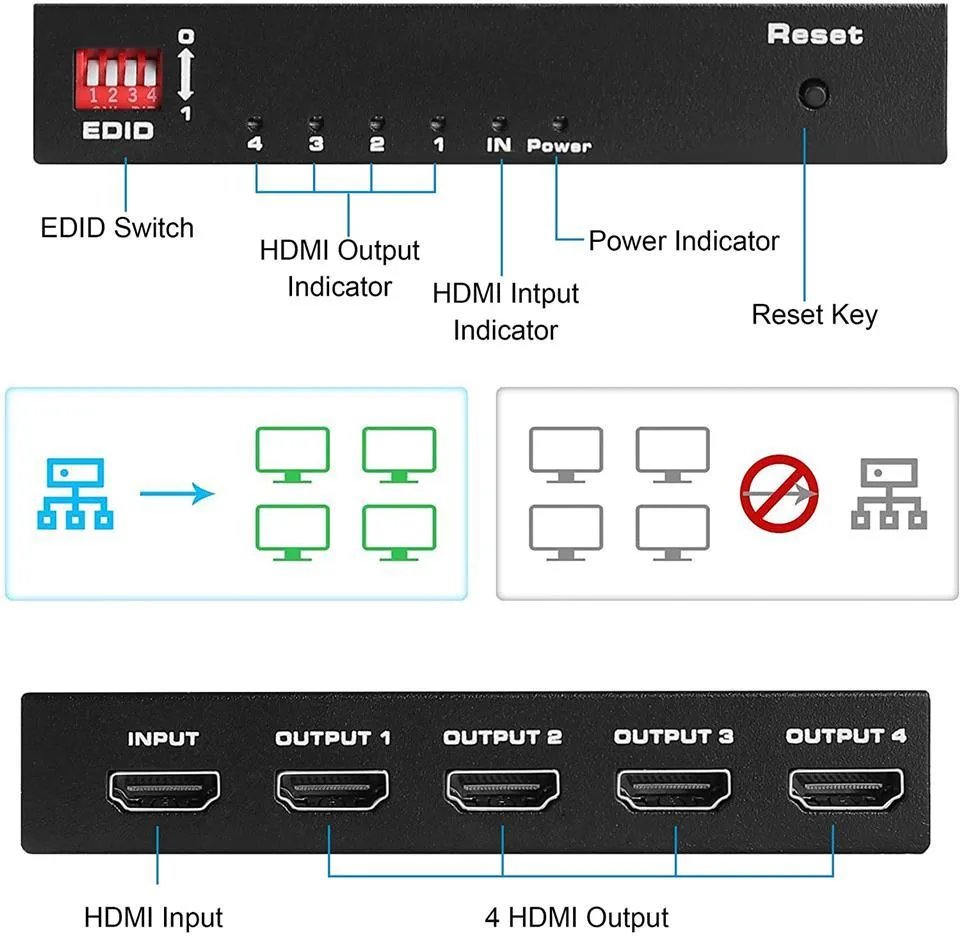

Support EDID
The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

Does the box include the power adapter and cables, or do I need to buy a USB power supply and four HDMI leads separately?

The package contains the 1×4 HDMI 2.0 splitter, one USB power adapter and a user manual; HDMI cables for the source and the four displays are not included.

There is only one model listed — OZF3-1 — so what should I check to confirm it matches my setup?

Verify that your source and displays use HDMI 2.0b, need HDCP 1.1 through 1.4 or 2.2, and require 4K at 60 Hz or 1080p at 120/144 Hz with 8/10/12-bit colour and 3D support.

What does the 18.2 Gbps bandwidth mean when I connect a 4K 60 Hz source to four screens?

It carries the full 4K 60 Hz 4:4:4 signal to every output simultaneously, so each display receives an identical 3840 × 2160 60 Hz image without compression.
